Exam 70-345 topic 1 question 119 discussion

Actual exam question from Microsoft's 70-345

Question #: 119
Topic #: 1

HOTSPOT -
You have an Exchange Server 2010 organization.
You plan to upgrade to Exchange Server 2016.

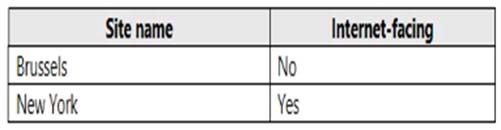

You have two Active Directory sites configured as shown in the following table.

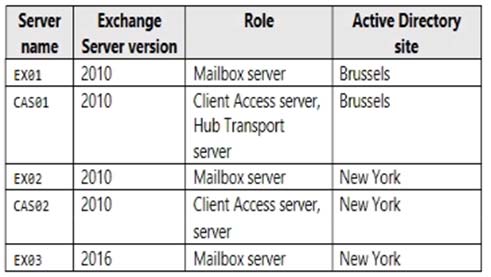

You have five servers configured as shown in the following table.

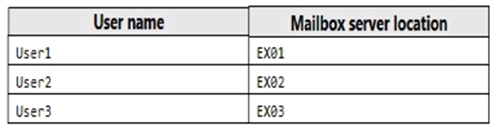

You have three users who have mailboxes configured as shown in the following table.

You have the following configurations:
The OWA virtual directory ExternalUrl on CAS01 is https://mail.brussels.contoso.com/owa.
The OWA virtual directory ExternalUrl on CAS02 is $null.
The OWA virtual directory ExternalUrl on EX03 is https://mail.contoso.com/owa.
All users connect to https://mail.contoso.com/owa to access Outlook on the web.
For each of the following statements, select Yes if the statement is true. Otherwise, select No.
Each correct solution is worth one point.
NOTE:

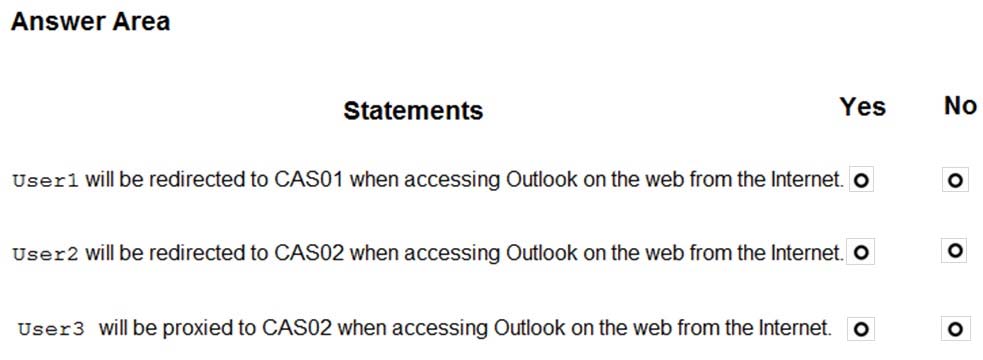

Hot Area:

Show Suggested Answer

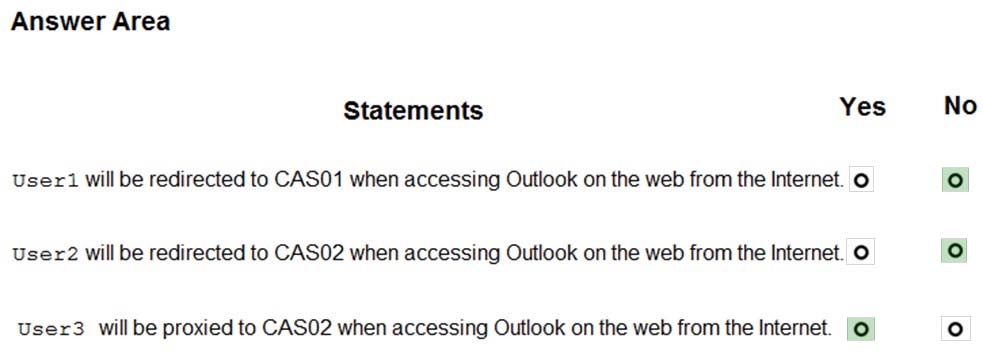

Suggested Answer:

References:
https://blogs.technet.microsoft.com/exchange/2015/10/26/client-connectivity-in-an-exchange-2016-coexistenceenvironment-with-exchange-2010/

by jdean at Dec. 30, 2019, 3:41 a.m.

Comments

Submit Cancel

zmart

Highly Voted 5 years, 1 month ago

1. No it will no redirected instead it will proxy 2. No it will no redirected instead it will proxy 3. No because user3 doesn't need to be proxied to cas02 because there is owa on ex03

upvoted 9 times

Harry83

4 years, 6 months ago

For question 1, there will be a redirection. As we are talking about a remote site and as the remote CAS server have a value on the ExternalUrl, the Exchange Server 2016 server will make a redirection. To have a CAS-To-CAS proxying behavior you need to set ExternalUrl to $null on CAS01. Anyway there is something incoherent inside the question. The first table inform us that Brussel site is a non-Internet facing site & by definition a non-Internet facing site should have a $null value set up inside ExternalUrl of all Web Services.

upvoted 1 times

...

JSMM

4 years, 5 months ago

https://www.examtopics.com/discussions/microsoft/view/15990-exam-70-345-topic-1-question-51-discussion/

upvoted 1 times

...

grin_hurry

Highly Voted 5 years, 1 month ago

i think Yes – Redirection as the CAS is defined with an external URL No – Intersite Proxying to CAS02 No – User 3 is on Ex03 itself, local proxy to the copy handling mailbox.

upvoted 8 times

Harry83

4 years, 6 months ago

I Agree. Yes No No

upvoted 1 times

...

RakRocky

Most Recent 4 years, 6 months ago

All No is the answer

upvoted 1 times

...

potpal

4 years, 8 months ago

I agreed with Zmart

upvoted 2 times

...

zmart

5 years, 1 month ago

https://techcommunity.microsoft.com/t5/exchange-team-blog/client-connectivity-in-an-exchange-2016-coexistence-environment/ba-p/603945

upvoted 2 times

...

Ronster

5 years, 4 months ago

The Exchange 2016 will proxy the request to all CAS servers for question 1 and 2. Fro question 3 he will do a local proxy to himself. The keyword here is proxy and not redirect so I think all the answers should be set to NO

upvoted 2 times

...
