Exam 70-486 topic 1 question 135 discussion

Actual exam question from Microsoft's 70-486

Question #: 135
Topic #: 1

DRAG DROP -
You plan to deploy an ASP.NET Core MVC web application to a Docker container. The root folder for the web application folder has a Windows PowerShell script named publish.ps1. The script contains the following code:

You need to ensure that the Docker container can be deployed.
How should you complete the code? To answer, drag the appropriate code segments to the correct locations. Each code segment may be used once, more than once or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.

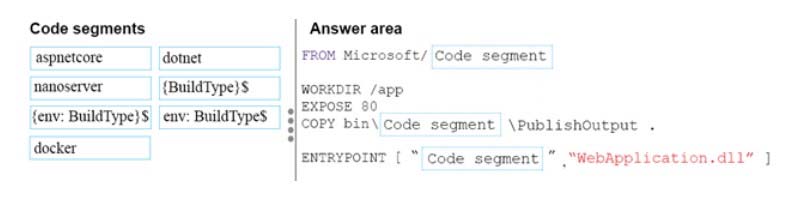

Select and Place:

Show Suggested Answer

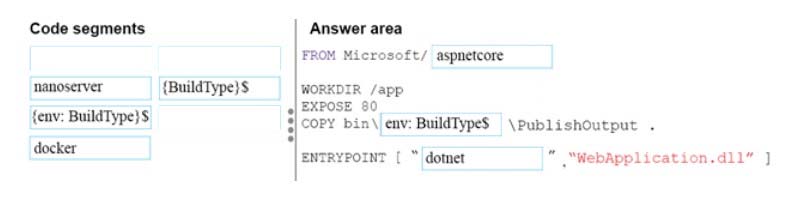

Suggested Answer:

Example:

FROM microsoft/aspnetcore -

WORKDIR /app -
COPY --from=builder /app .
ENTRYPOINT ["dotnet", "myapp.dll"]

Box 1: aspnetcore -
From the DockerFile, you specify what base Docker image you'll be using (like using "FROM microsoft/dotnet:1.0.0-core").
Box 2: env:BuildType$

Box 3: dotnet -
Reference:
https://github.com/aspnet/aspnet-docker/blob/master/README.aspnetcore-build.md

by Gorilla at Jan. 1, 2020, 5:37 p.m.

Comments

Submit Cancel

Gorilla

Highly Voted 5 years, 6 months ago

1) The reference mentioned in the answet no longer exists. The closest resource I've found is: https://docs.microsoft.com/en-us/aspnet/core/host-and-deploy/docker/building-net-docker-images?view=aspnetcore-3.1#build-and-deploy-manually 2) The source image name might also have changed 3) According to the dockerfile reference (https://docs.docker.com/engine/reference/builder/#environment-replacement), I would expect the environment variable to be placed as $BuildType or ${BuildType}, but there is no such answer

upvoted 7 times

zimzimzimma

5 years, 1 month ago

Thanks, another botched question. I would have chosen ${BuildType} as well but it wasn't there so I chose {BuildType}$... which was supposed to be wrong.

upvoted 1 times

...

Xzibit23

Most Recent 4 years, 5 months ago

Its an Core MVC web application so 1) aspnetcore 2) {env:BuildType} 3) docker Another similar case from microsoft referece: FROM microsoft/aspnetcore:2.0-nanoserver-sac2016 ARG source WORKDIR /app COPY ${source:-obj/Docker/publish} . ENTRYPOINT ["dotnet", "HelloDockerTools.dll"]

upvoted 1 times

...

slobex

4 years, 8 months ago

UR: https://github.com/aspnet/aspnet-docker/

upvoted 1 times

AMUJ12

4 years, 8 months ago

Are the given answer correct ?

upvoted 1 times

...

Mayflower

4 years, 11 months ago

https://docs.microsoft.com/en-us/aspnet/core/host-and-deploy/docker/visual-studio-tools-for-docker?view=aspnetcore-3.1

upvoted 1 times

...

mr_

5 years ago

Guys, just to confirm what you said: 'Environment variables are notated in the Dockerfile either with $variable_name or ${variable_name}'. Ref: https://docs.docker.com/engine/reference/builder/#environment-replacement

upvoted 2 times

...
