Exam AZ-203 All Questions

View all questions & answers for the AZ-203 exam

Exam AZ-203 topic 1 question 11 discussion

Actual exam question from Microsoft's AZ-203

Question #: 11
Topic #: 1

DRAG DROP -
You are preparing to deploy an Azure virtual machine (VM)-based application. The VMs that run the application have the following requirements:
✑ When a VM is provisioned the firewall must be automatically configured before it can access Azure resources
✑ Supporting services must be installed by using an Azure PowerShell script that is stored in Azure Storage
You need to ensure that the requirements are met.
Which features should you use? To answer, drag the appropriate features to the correct requirements. Each feature may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.

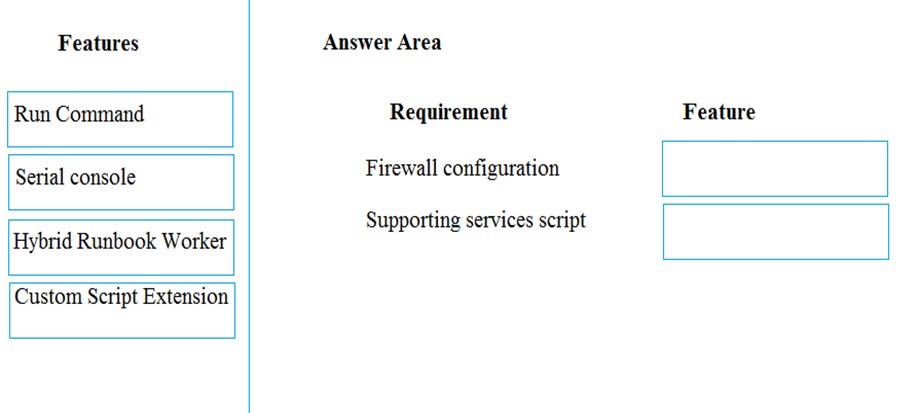

Select and Place:

Show Suggested Answer

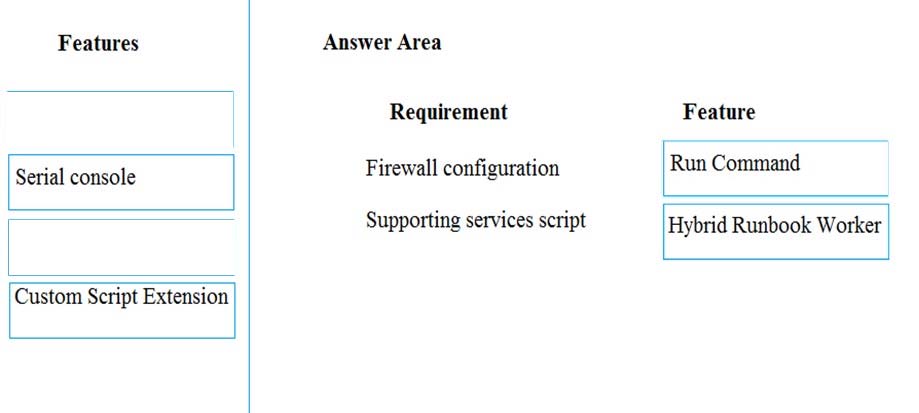

Suggested Answer:

References:
https://docs.microsoft.com/en-us/azure/automation/automation-hybrid-runbook-worker https://docs.microsoft.com/en-us/azure/virtual-machines/windows/run-command

by TechieBloke at Jan. 15, 2020, 4:53 p.m.

Comments

Submit Cancel

TechieBloke

Highly Voted 5 years, 5 months ago

firewall: run-command script: custom script extensions This capability is useful in all scenarios where you want to run a script within a virtual machine. It's one of the only ways to troubleshoot and remediate a virtual machine that doesn't have the RDP or SSH port open because of improper network or administrative user configuration. The Custom Script Extension downloads and executes scripts on Azure virtual machines. This extension is useful for post deployment configuration, software installation, or any other configuration or management tasks. Scripts can be downloaded from Azure storage or GitHub, or provided to the Azure portal at extension run time. The Custom Script Extension integrates with Azure Resource Manager templates, and can be run using the Azure CLI, PowerShell, Azure portal, or the Azure Virtual Machine REST API.

upvoted 35 times

divz_999

5 years, 4 months ago

Is this correct?

upvoted 1 times

Tee48

5 years, 1 month ago

Yes, It is. https://docs.microsoft.com/en-us/azure/virtual-machines/extensions/custom-script-windows

upvoted 1 times

...

Juanlu

4 years, 6 months ago

Agree !

upvoted 1 times

...

AK89

Highly Voted 5 years ago

Firewall : Run command 2nd point : Custom Script Extension as the scripts are stored in an Azure Storage Account. "Hybrid Runbook Worker" can be the case only if the scripts are stored in Azure Automation Account which is not the case here.

upvoted 11 times

AAAAAAAQQQ

4 years ago

https://docs.microsoft.com/en-us/azure/virtual-machines/windows/run-scripts-in-vm

upvoted 1 times

...

meoukg

Most Recent 3 years, 3 months ago

Got it on 03/2022, I chose as Firewall configuration = Run command ; Supporting service scripts = Hybrid Runbook Worker

upvoted 1 times

...

bugimachi

4 years, 5 months ago

The question asks "WHEN a VM is PROVISIONED the firewall must be AUTOMATICALLY configured". But "Run Command" requires in manual invokcation (either via CLI or Portal), doesn't it? So does it really satisfy the requirement of automatic firewall configuration? I'd personally include it into a script and run it using the Custom Script Extension. What do you think?

upvoted 8 times

JulienYork

4 years, 5 months ago

Same here

upvoted 1 times

...

dluk

4 years, 4 months ago

But doesn't Custom Script Extension need an access to Azure resources? In the question it states that you need to configure firewall before accessing any Azure resources

upvoted 1 times

...

hertino

4 years, 10 months ago

Today I got 900, I had this question, my answer: Firewall configuration Run command Supporting service Custom script extension

upvoted 10 times

XtremeGraff

4 years, 1 month ago

How many study cases you had ?

upvoted 1 times

...

sathish11

4 years, 11 months ago

1. Run Command 2. Customer Script Extension

upvoted 2 times

...

Nanaboso2

5 years ago

From reading https://docs.microsoft.com/en-us/azure/virtual-machines/windows/run-scripts-in-vm I think "Custom Script Extension" as well as "Hybrid Runbook Worker" would work for snd. I would appreciate a clarification why "Hybrid Runbook Worker" is preferred a lot.

upvoted 2 times

...

wlfjck

5 years, 4 months ago

1. Run Command 2. Customer Script Extension

upvoted 9 times

...
