Actual exam question from Microsoft's AZ-300

Question #: 16
Topic #: 5

HOTSPOT -
Your company hosts multiple website by using Azure virtual machine scale sets (VMSS) that run Internet Information Server (IIS).
All network communications must be secured by using end to end Secure Socket Layer (SSL) encryption. User sessions must be routed to the same server by using cookie-based session affinity.

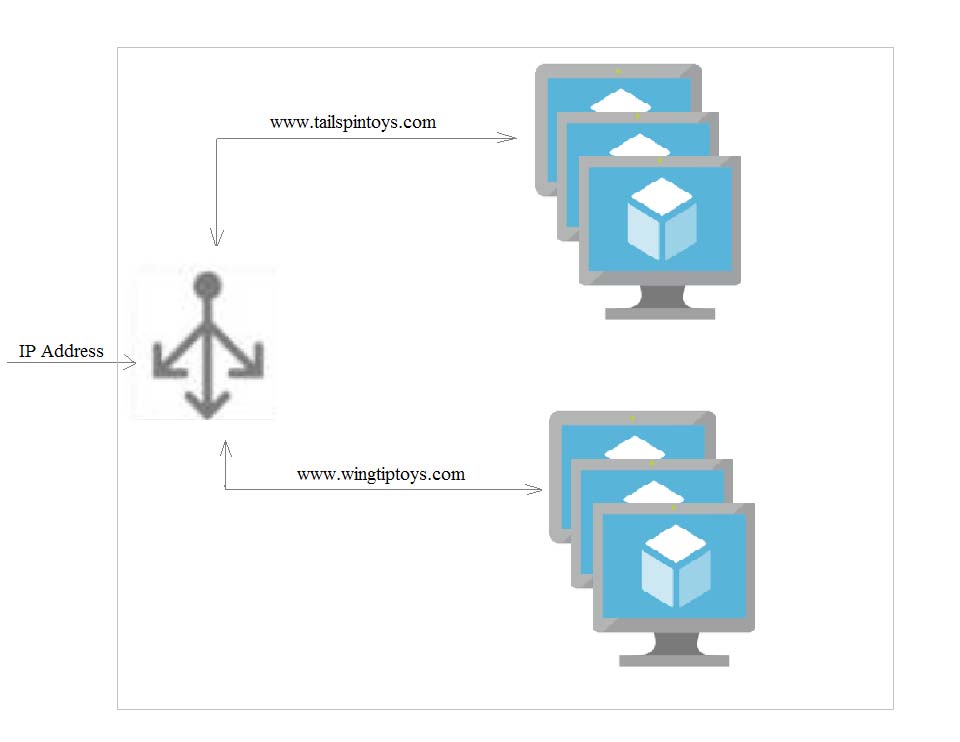

The image shown depicts the network traffic flow for the web sites to the VMSS.

Use the drop-down menus to select the answer choice that answers each question.
NOTE: Each correct selection is worth one point.
Hot Area:

Show Suggested Answer

Suggested Answer: Explanation
Box 1: Public -

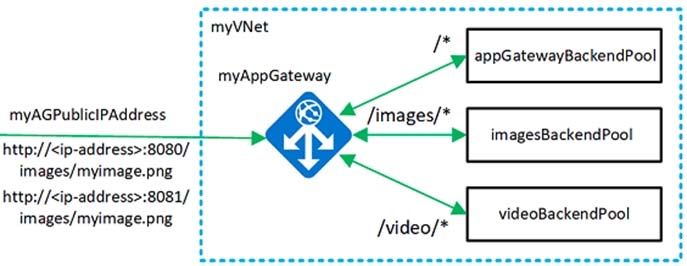

The following example shows site traffic coming from both ports 8080 and 8081 and being directed to the same backend pools.

Box 2: Application Gateway -
You can create an application gateway with URL path-based redirection using Azure PowerShell.
Box 3: Path-based redirection and Websockets
References:
https://docs.microsoft.com/bs-latn-ba/azure//application-gateway/tutorial-url-redirect-powershell

by Mathew at Jan. 18, 2020, 9:10 a.m.

Comments

Submit Cancel

Mathew

Highly Voted 5 years, 5 months ago

this is multiple web sites, not path based route. So I think "Routing Rule and backend listeners" may be correct https://docs.microsoft.com/en-us/azure/application-gateway/tutorial-multiple-sites-powershell

upvoted 29 times

Daren

5 years, 2 months ago

that`s my understanding as well

upvoted 3 times

tartar

4 years, 9 months ago

Box 1: Public Box 2: Application Gateway Box 3: Routing rules and backend listners

upvoted 5 times

...

rdy4u

Highly Voted 4 years, 11 months ago

For Hot Area : https://vceguide.com/hotspot-930/

upvoted 15 times

...

ATS006300

Most Recent 4 years, 10 months ago

The answer should be Box 1: Public Box 2: Application Gateway Box 3: Routing rules and backend listners

upvoted 7 times

...

irvingsale2011

4 years, 11 months ago

https://books.google.com/books?id=h0XbDwAAQBAJ&pg=PA82&lpg=PA82&dq=azure+application+gateway+cookie-based+session+affinity+vmss&source=bl&ots=IEYFKakNME&sig=ACfU3U05nuS_kHeCQQgmRehrTgjnXytJkQ&hl=en&sa=X&ved=2ahUKEwju24eXx7LqAhUqgK0KHa7EB0cQ6AEwD3oECAwQAQ#v=onepage&q=azure%20application%20gateway%20cookie-based%20session%20affinity%20vmss&f=false

upvoted 1 times

...

babablackship

4 years, 11 months ago

The HOT SPOT options are not visible. Can anyone share options?

upvoted 6 times

...

AnshMan

5 years ago

Box1 & Box2 are correct. For Box3: It should be "Routing Rules and Backend Listeners" Multi Site (fabrikam.com & contoso.com) - Routing Rules and Backend Listeners Similarly we may use the above mechanism to host the multiple subdoimans like (app.contoso.com & blog.contoso.com) https://docs.microsoft.com/en-us/azure/application-gateway/multiple-site-overview URL Path (fabrikam.com/images & fabrikam.com/videos) - URL Path Based Routing https://docs.microsoft.com/en-us/azure/application-gateway/url-route-overview There is a similar question in this Dump with a customer scenario.

upvoted 7 times

praveen97

4 years, 11 months ago

Exactly agree with Anshman. For Box 3, answer is "Routing rules and Backend Listeners"

upvoted 3 times

...

cacasodo

5 years, 1 month ago

For reference regarding websockets: https://docs.microsoft.com/en-us/azure/application-gateway/application-gateway-websocket

upvoted 1 times

...

Karls

5 years, 4 months ago

I think so

upvoted 3 times

...
