Exam AI-102 topic 1 question 36 discussion

Actual exam question from Microsoft's AI-102

Question #: 36
Topic #: 1

SIMULATION -
You need to create a Form Recognizer resource named fr12345678.
Use the Form Recognizer sample labeling tool at https://fott-2-1.azurewebsites.net/ to analyze the invoice located in the C:\Resources\Invoices folder.
Save the results as C:\Resources\Invoices\Results.json.
To complete this task, sign in to the Azure portal and open the Form Recognizer sample labeling tool.

Show Suggested Answer

Suggested Answer: See explanation below.
Step 1: Sign in to the Azure Portal.
Step 2: Navigate to the Form Recognizer Sample Tool (at https://fott-2-1.azurewebsites.net)

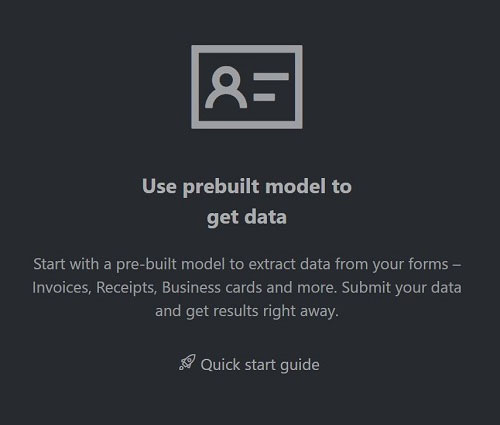

Step 3: On the sample tool home page select Use prebuilt model to get data.

Step 4: Select the Form Type you would like to analyze from the dropdown window.

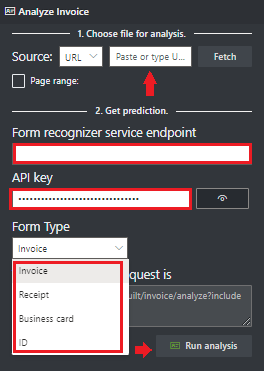

Step 5: In the Source: URL field, paste the selected URL and select the Fetch button.
Step 6: In the Choose file for analysis use the file in the C:\Resources\Invoices folder and select the Fetch button.

Step 7: Select Run analysis. The Form Recognizer Sample Labeling tool will call the Analyze Prebuilt API and analyze the document.

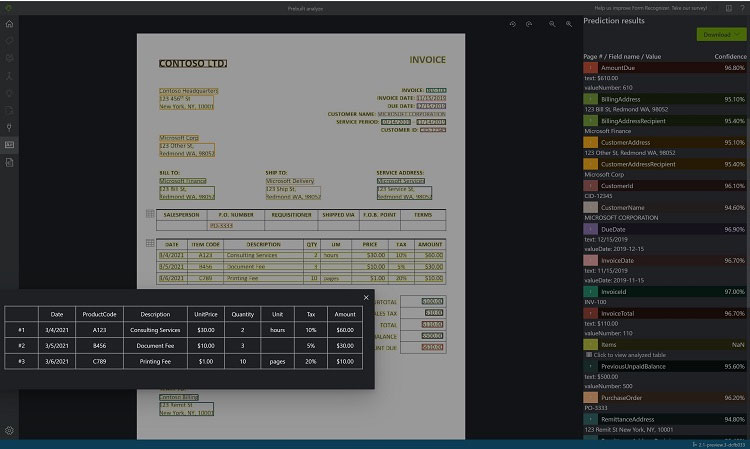

Step 8: View the results - see the key-value pairs extracted, line items, highlighted text extracted and tables detected.

Step 9: Save the results as C:\Resources\Invoices\Results.json.
Reference:
https://docs.microsoft.com/en-us/azure/applied-ai-services/form-recognizer/quickstarts/try-sample-label-tool

by rdemontis at Nov. 1, 2023, 5:20 p.m.

Comments

Submit Cancel

p2pitu

11 months, 2 weeks ago

I guess they are here to increase the page size so that more question can be behind paywall.

upvoted 2 times

...

omankoman

12 months ago

This type of simulation question was not included in the real exam, which was taken on 12 June.

upvoted 2 times

...

nanaw770

1 year ago

Simulation questions will not appear on the actual exam as of May 25, 2024; ET should remove this type of question.

upvoted 1 times

...

michaelmorar

1 year, 1 month ago

The issue I found when trying this is that you cannot choose the downloaded JSON file name. So one cannot ensure that the file is called Results.json - the studio names it for you.

upvoted 1 times

MonicaKarim

1 year, 1 month ago

don't choose download, instead press ctr+s then save as C:\Resources\Invoices\Results.json

upvoted 1 times

...

GHill1982

1 year, 2 months ago

I think this would be the method as of March 2024: 1. Create a Document Intelligence resource in Azure AI services 2. Launch Document Intelligence Studio 3. Select Invoices from the Prebuilt models 4. Configure the service resource by selecting your Document Intelligence Resource 5. Drag & drop of browse for the invoice in C:\Resources\Invoices 6. Click Run analysis 7. Click on Result and the Download icon to save the JSON results file

upvoted 3 times

...

josebernabeo

1 year, 4 months ago

Are these types of questions going to be on the exam?

upvoted 3 times

audlindr

1 year, 3 months ago

It was not on 2-Mar-2024

upvoted 6 times

...

rdemontis

1 year, 7 months ago

1. Create a form recognizer service as part of azure ai service 2. browse to https://fott-2-1.azurewebsites.net/ 3. select prebuilt model for invoices 4. choose local file because the file is a local disk c: and insert the path 5. come back to the azure portal and copy endpoint and key from the relative page of the form recognizer service 6. come back to https://fott-2-1.azurewebsites.net/prebuilts-analyze 7. past endpoint and key 8. run analysis 9. download 10. choose json format and the destionation indicated

upvoted 4 times

...
