Exam 70-345 topic 1 question 124 discussion

Actual exam question from Microsoft's 70-345

Question #: 124
Topic #: 1

HOTSPOT -

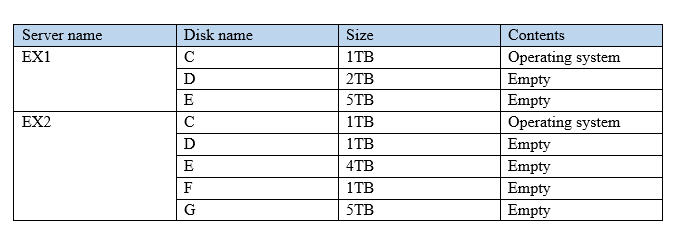

You deploy two Exchange Server 2016 Mailbox servers. The disks on the servers are configured as shown in the following table.

You plan to add both servers to a database availability group (DAG) named DAG1. Each server will host a copy of a mailbox database.
You calculate that during the lifespan of the servers, the mailbox databases will grow up to 4 TB. The logs will occupy up to 1 TB at any given time.
You need to identify which drives must be used to store the database and log files on the servers.

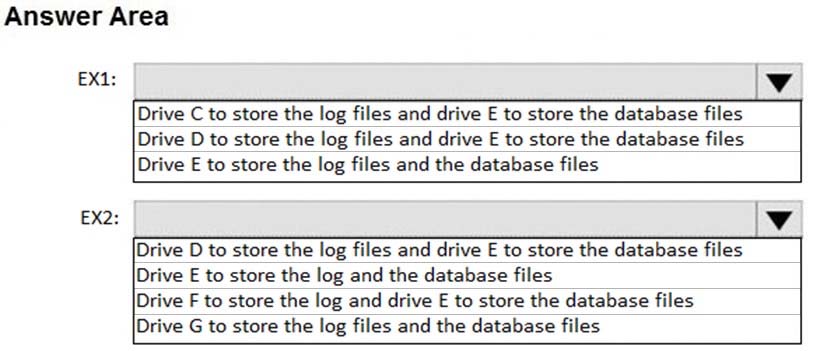

What should you identify for each server? To answer, select the appropriate options in the answer area.
Each correct selection is worth one point.
NOTE:
Hot Area:

Show Suggested Answer

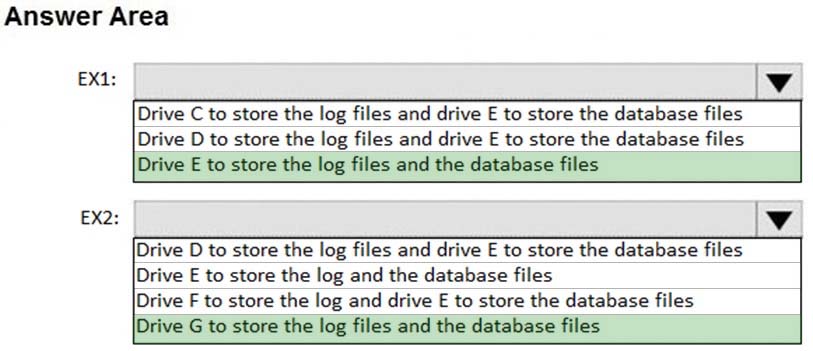

Suggested Answer:

References:
https://docs.microsoft.com/en-us/exchange/plan-and-deploy/deployment-ref/storage-configuration?view=exchserver-2019

by Boehlie at Jan. 26, 2020, 3:31 p.m.

Comments

Submit Cancel

Boehlie

Highly Voted 5 years, 5 months ago

So the answer must be Drive D for the log files and Drive E for the database files

upvoted 13 times

...

Boehlie

Highly Voted 5 years, 5 months ago

If the mailbox database being moved is replicated to one or more mailbox database copies, you must follow the procedure in this topic to move the mailbox database path. All copies of a mailbox database must be located in the same path on each server that hosts a copy. For example, if database DB1 is located at C:\mountpoints\DB1 on server EX1, copies of DB1 on servers EX2, EX3, and so on, must also be located at C:\mountpoints\DB1

upvoted 7 times
