Exam AZ-101 topic 3 question 33 discussion

Actual exam question from Microsoft's AZ-101

Question #: 33
Topic #: 3

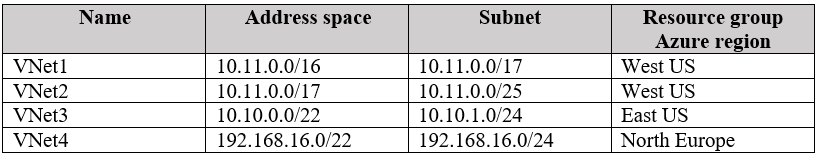

You have the Azure virtual networks shown in the following table.

To which virtual networks can you establish a peering connection from VNet1?

A. VNet3 and VNet4 only
B. VNet2 and VNet3 only
C. VNet2 only
D. VNet2, VNet3, and VNet4

Show Suggested Answer

Suggested Answer: D 🗳️
References:
https://docs.microsoft.com/en-us/azure/virtual-network/tutorial-connect-virtual-networks-portal

by Root_Access at Feb. 7, 2020, 12:25 a.m.

Comments

Submit Cancel

Novix

Highly Voted 5 years, 4 months ago

It's A: VNET 3 and 4 only. All the IP's for the ranges 10.11.0.1 - 10.11.255.254 VNET1 10.11.0.1 - 10.11.127.254 VNET2 10.10.0.1 - 10.10.3.254 VNET3 192.168.16.0/22 VNET4 - not even same class VNET 2 is out. Others are OK. If you're not strong with subnetting just remember the lower the number the more addresses. So a /16 will include all the address of /17, /18, 19... and so on up to /30. /16 is also the just the last 2 octets. That is why 10.10.0.0 is ok.

upvoted 5 times

jmyers43

5 years, 4 months ago

Correct

upvoted 1 times

...

Root_Access

Most Recent 5 years, 5 months ago

Vnet1 and Vnet2 are overlapping, arent they?

upvoted 1 times

...
