Exam 70-413 topic 1 question 58 discussion

Actual exam question from Microsoft's 70-413
Question #: 58
Topic #: 1
[All 70-413 Questions]

HOTSPOT -
Your network contains an Active Directory forest named northwindtraders.com.
The client computers in the finance department run either Windows 8.1, Windows 8, or Windows 7. All of the client computers in the marketing department run
Windows 8.1.
You need to design a Network Access Protection (NAP) solution for northwindtraders.com that meets the following requirements:
✑ The client computers in the finance department that run Windows 7 must have a firewall enabled and the antivirus software must be up-to-date.
✑ The finance computers that run Windows 8.1 or Windows 8 must have automatic updating enabled and the antivirus software must be up-to-date.
✑ The client computers in the marketing department must have automatic updating enabled and the antivirus software must be up-to-date.
✑ If a computer fails to meet its requirements, the computers must be provided access to a limited set of resources on the network.
✑ If a computer meets its requirements, the computer must have full access to the network.
What is the minimum number of objects that you should create to meet the requirements? To answer, select the appropriate number for each object type in the answer area.

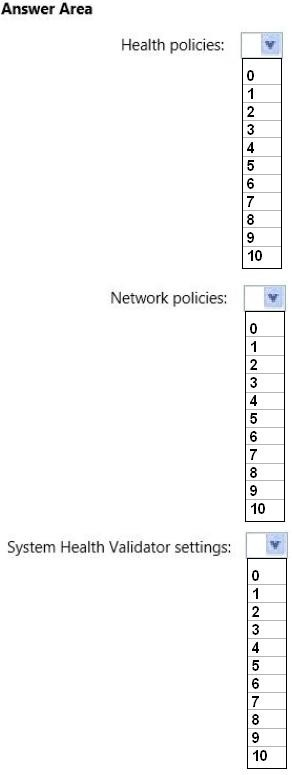

Hot Area:

Show Suggested Answer Hide Answer

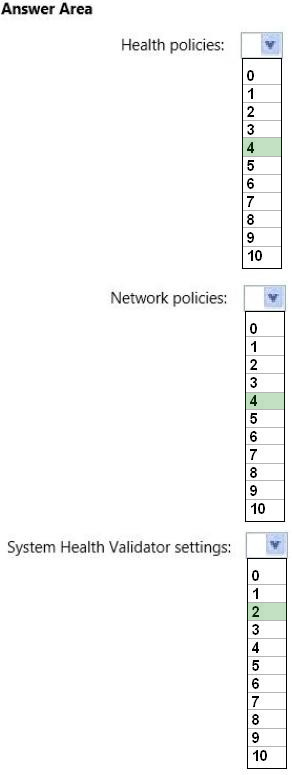

Suggested Answer:
Reference:
https://mizitechinfo.wordpress.com/2014/07/20/step-by-step-network-access-protection-nap-deployment-in-windows-server-2012-r2-part-3-of-7-configure-network- policies/

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
spam
5 years, 5 months ago
Correcting myself. There are two different configurations to validate; a) computers that must have a firewall enabled and the antivirus software must be up-to-date and b) computers that must have automatic updating enabled and the antivirus software must be up-to-date. You therefore require two SystemHealthValidators I believe. SHV-A > FW & AV SHV-B > WU & AV Per SystemHealthValidator, you require two HealthPolicies, one corresponding to a compliant health state and one other corresponding to a noncompliant health state. You therefore require four HealthPolicies I believe. HP-A1 > SHV-A compliant HP-A2 > SHV-A non compliant HP-B1 > SHV-B compliant HP-B2 > SHV-B non compliant Last you need 4 NetworkPolicies I believe, three to provide full access to the network for compliants and one to provide restricted access to the network, based on the above HealthPolicies combinations. NP-1 > Finance & Win7 & HP-A1 = allow NP-2 > Finance & Win8 & HP-B1 = allow NP-3 > Marketing & HP-B1 = allow NP-4 > Other = allow Restricted So the correct answer would be 4, 4, 2 I believe.
upvoted 1 times
...
spam
5 years, 5 months ago
SHV-A > FW & AV SHV-B > WU & AV HP-1 > SHV-A & Client Passes All HP-2 > SHV-B & Client Passes All NP-1 > Finance & Win7 & HP-1 = allow NP-2 > Finance & Win8 & HP-2 = allow NP-3 > Marketing & HP-2 = allow NP-4 > Other = allow Restricted 2 2 4
upvoted 1 times
...
