Exam 70-345 topic 1 question 51 discussion

Actual exam question from Microsoft's 70-345

Question #: 51
Topic #: 1

HOTSPOT -
You have an Exchange Server 2010 organization.
You plan to upgrade to Exchange Server 2016.

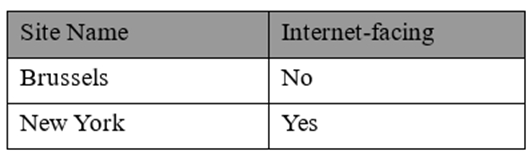

You have two Active Directory sites configured as shown in the following table.

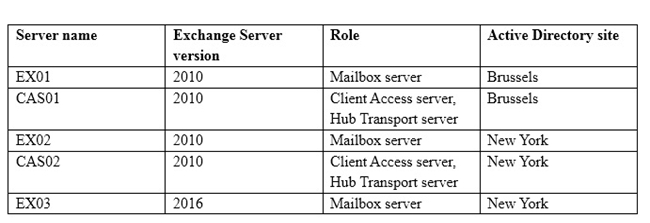

You have five servers configured as shown in the following table.

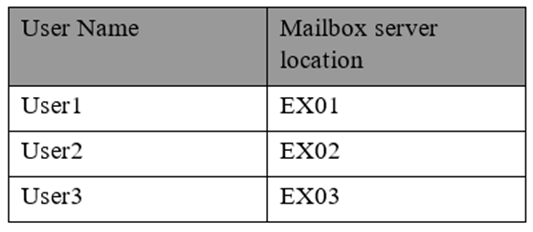

You have three users who have mailboxes configured as shown in the following table.

You have the following configurations:
✑ The OWA virtual directory ExternalUrl on CAS01 and CAS02 is $null.
✑ The OWA virtual directory ExternalUrl on EX03 is https://mail.contoso.com/owa.
For each of the following statements, select Yes if statements is true. Otherwise, select No.

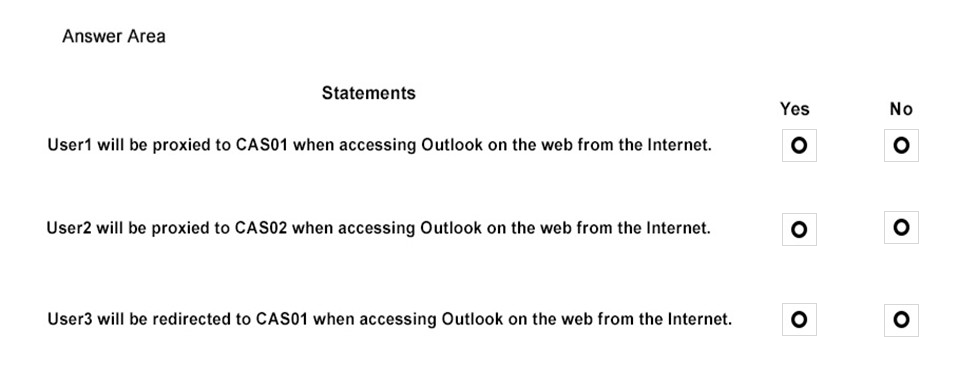

Hot Area:

Show Suggested Answer

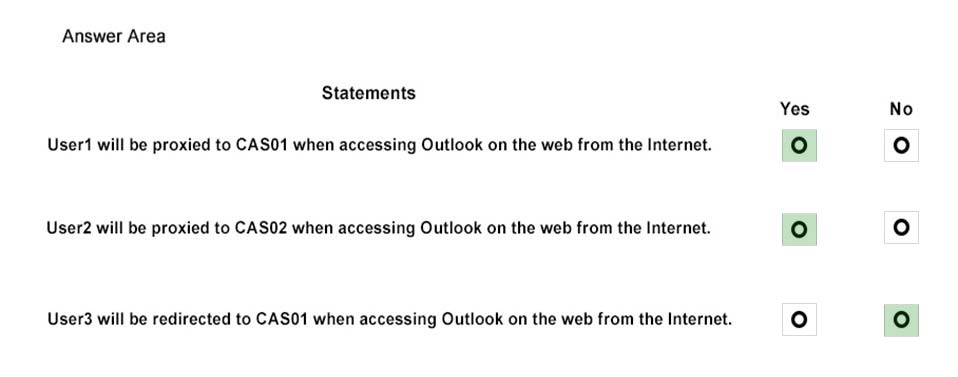

Suggested Answer:

References:
https://blogs.technet.microsoft.com/exchange/2015/10/26/client-connectivity-in-an-exchange-2016-coexistence-environment-with-exchange-2010/

by l1f3rl at March 9, 2020, 8:01 p.m.

Comments

Submit Cancel

RakRocky

4 years, 5 months ago

Yes,Yes,No

upvoted 1 times

...

MAMER

4 years, 6 months ago

Answer is correct. Since there is no external URL published for any of the two CASs, there is no Redirection concept. All the requests lands on EX03, which is the only server defined with an external URL. User 1 mailbox is located within EX01 (Brussels), which does not have any OWA ExternalURL defined. EX03 (Newyork) will proxy the request to CAS01(Intersite Proxying) User 2 mailbox is located within Ex02 (Newyork), again which does not have any OWA ExternalURL defined. EX03 (Newyork) will proxy the request to CAS02(IntraSite Proxying) User 3- mailbox is located within EX03(Newyork), which is self and does a local proxy to the active mailbox database copy.

upvoted 4 times

...

l1f3rl

5 years, 2 months ago

Correct.

upvoted 2 times

...
