Exam AZ-103 topic 4 question 54 discussion

Actual exam question from Microsoft's AZ-103

Question #: 54
Topic #: 4

HOTSPOT -
Your company has offices in New York and Los Angeles.
You have an Azure subscription that contains an Azure virtual network named VNet1. Each office has a site-to-site VPN connection to VNet1.
Each network uses the address spaces shown in the following table.

You need to ensure that all Internet-bound traffic from VNet1 is routed through the New York office.
What should you do? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

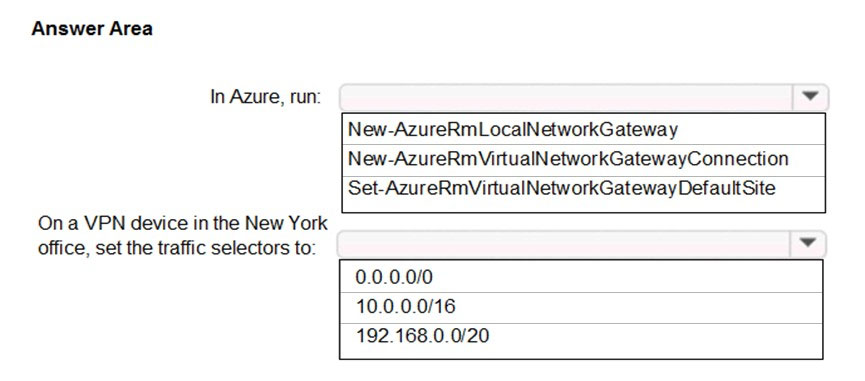

Hot Area:

Show Suggested Answer

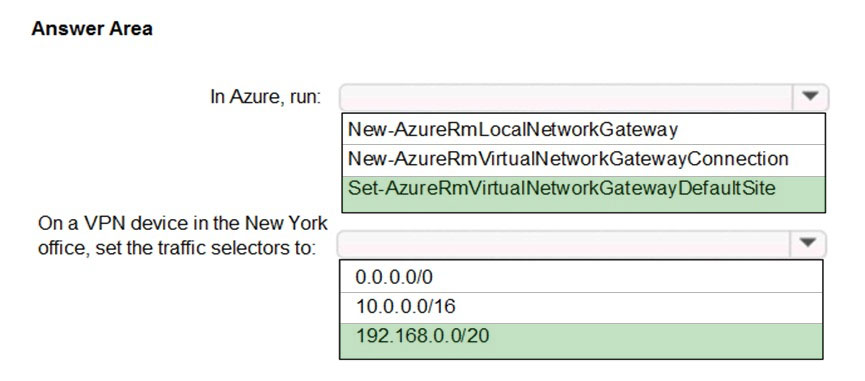

Suggested Answer:

by jall at March 9, 2020, 9:06 p.m.

Comments

Submit Cancel

InsaneCreep

Highly Voted 5 years, 2 months ago

https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-forced-tunneling-rm Forced tunneling must be associated with a VNet that has a route-based VPN gateway. You need to set a "default site" among the cross-premises local sites connected to the virtual network. Also, the on-premises VPN device must be configured using 0.0.0.0/0 as traffic selectors.

upvoted 28 times

TinyTrexArmz

4 years, 10 months ago

My question is, can you have a VPN without a Local Network Gateway? From what I can tell, the answer is yes. So while the question establishes that there is a VPN between Azure and both of the offices it says nothing about having the Local Network Gateway configured already. Shouldn't the first step be to create the LNG (New-AzLocalNetworkGateway) before you you run Set-AzVirtualNetworkGatewayDefaultSite to set the default?

upvoted 1 times

TinyTrexArmz

4 years, 10 months ago

I found the answer to my question, and the answer is no. You have to specify the LNG in the last step in creating a site to site connection. So you would have had to complete that step already. Ref: https://docs.microsoft.com/en-us/archive/blogs/canitpro/step-by-step-configuring-a-site-to-site-vpn-gateway-between-azure-and-on-premise

upvoted 2 times

...

certificatores

Highly Voted 5 years, 2 months ago

first box is correct second box is 0.0.0.0

upvoted 14 times

Thi

4 years, 7 months ago

agree first box is correct second box is 0.0.0.0

upvoted 1 times

...

I

Most Recent 4 years, 3 months ago

Given answers are right.

upvoted 1 times

...

Thi

4 years, 7 months ago

first box is correct second box is 0.0.0.0

upvoted 1 times

...

jjkidd72

4 years, 9 months ago

Default site / All 0's

upvoted 1 times

...

kate00

4 years, 11 months ago

The answer is correct. https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-about-point-to-site-routing

upvoted 3 times

...

msg1021

5 years, 1 month ago

Forced tunneling must be associated with a VNet that has a route-based VPN gateway. You need to set a "default site" among the cross-premises local sites connected to the virtual network. Also, the on-premises VPN device must be configured using 0.0.0.0/0 as traffic selectors. https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-forced-tunneling-rm 0.0.0.0 is correct for second

upvoted 10 times

jd1

5 years ago

You're correct, per the link you provided, the Microsoft Answer is 0.0.0.0. It might be worth noting that Microsoft is unique in its definition of "Traffic Selector"; its not fully compatible with Juniper (to whom both would be right answers), Cisco (where there is no such thing -- they're just negotiated peramaters), and others.

upvoted 2 times

...

Hanuman

4 years, 11 months ago

correct

upvoted 1 times

...

aka_tom

4 years, 9 months ago

so in the first question, regarding the script, it is correct right?

upvoted 1 times

...

wilmatic81

5 years, 2 months ago

0.0.0.0 is correct for second box https://www.checkyourlogs.net/the-case-of-configuring-forced-tunneling-in-azure-to-route-virtual-machine-traffic-back-through-an-on-prem-firewall-azure-azuresiterecovery/

upvoted 4 times

...

sapien45

5 years, 2 months ago

upvoted 3 times

...

jall

5 years, 3 months ago

https://docs.microsoft.com/en-us/powershell/module/azurerm.network/set-azurermvirtualnetworkgatewaydefaultsite?view=azurermps-6.13.0#description

upvoted 2 times

...
