Exam AZ-101 topic 2 question 2 discussion

HOTSPOT -

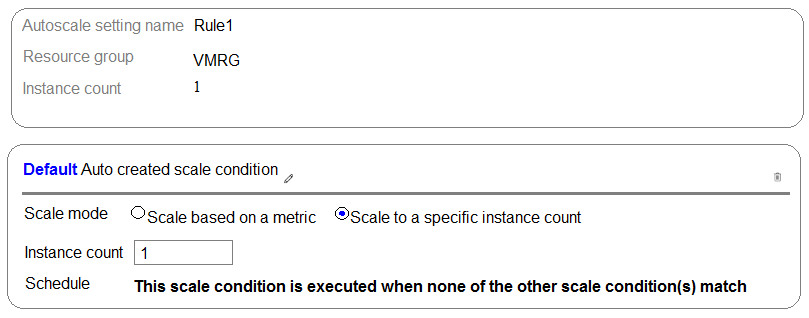

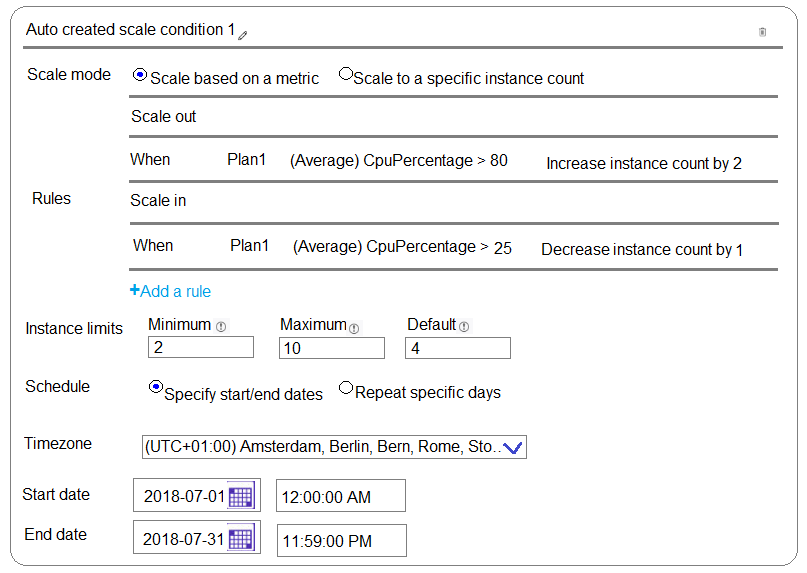

You create an Azure web app named WebApp1. WebApp1 has the autoscale settings shown in the following exhibit.


The scale out and scale in rules are configured to have a duration of 10 minutes and a cool down time of five minutes.
Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
Each correct selection is worth one point.
NOTE:

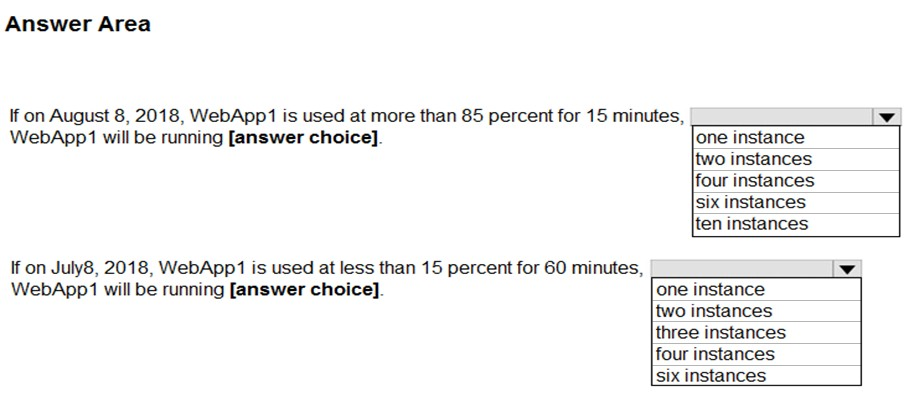

Hot Area:

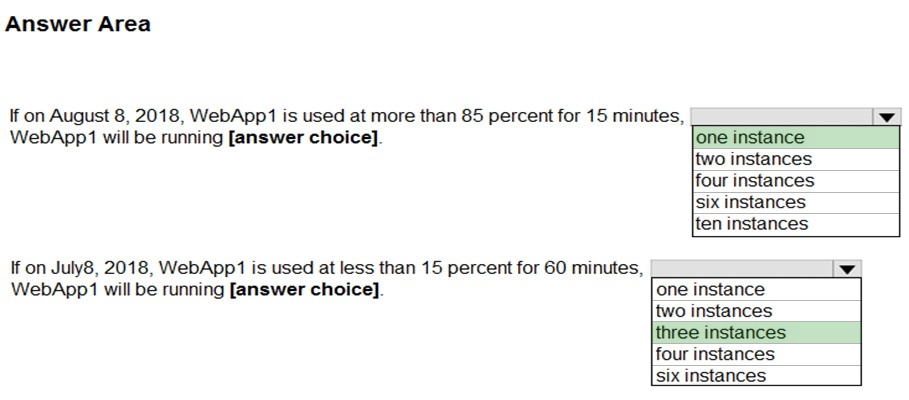

Suggested Answer:
Box 1: one instance -
August 8, 2018 is outside the schedule of the scale condition 1, and Default instance count is 1.

Box 2: three instances -
The Default instance count of scale condition 1 is 4, and the Scale in rule decreases the count with 1.
References:
https://docs.microsoft.com/en-us/azure/monitoring-and-diagnostics/insights-autoscale-best-practices
