Exam 70-744 topic 1 question 60 discussion

Actual exam question from Microsoft's 70-744
Question #: 60
Topic #: 1
[All 70-744 Questions]

HOTSPOT -
Your network contains an Active Directory named contoso.com
The domain contains the computers configured as shown in the following table.

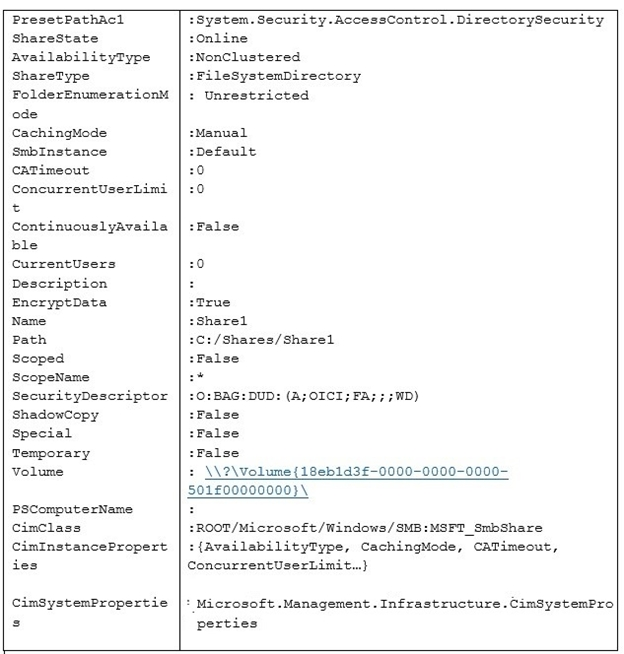

Server1 has a share named Share1 that has the following configurations.

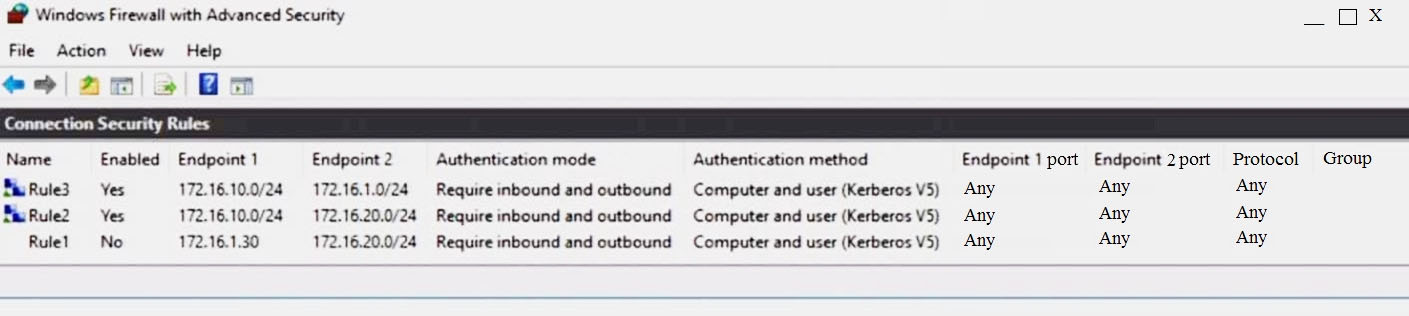

Server1, Computer1, and Computer2 have the connection security rules configured as shown in the exhibit. (Click the Exhibit button.)
Exhibit:

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.

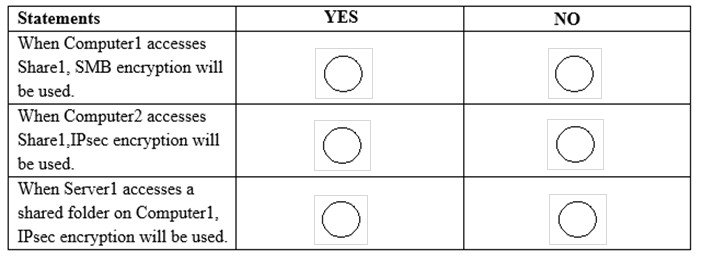

Hot Area:

Show Suggested Answer Hide Answer

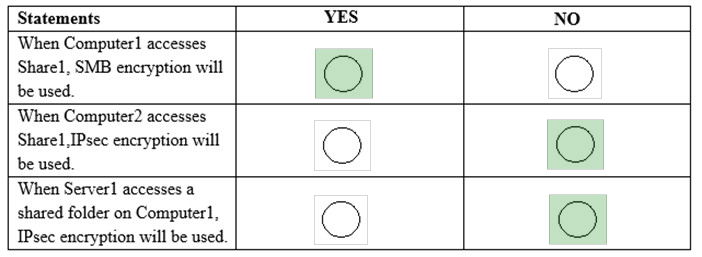

Suggested Answer:
by buiminhnhat at April 27, 2020, 7:18 a.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
Kamikazekiller
Highly Voted 4 years, 9 months ago
Correct answer is YES, YES, NO When Computer1 accesses Share1, SMB encryption will be used: YES When Computer2 accesses Share1, SMB encryption will be used: YES When Server1 accesses a shared folder on Computer1, IPsec encryption will be used: NO The shared folder "Share1" is configured with "EncryptData : True", no matter which network the client resides,SMB 3 communication will be encrypted.When Server1 access Computer1 over network, the original packet L3 IP Header is as follow:-172.16.1.30 ?gt; 172.16.10.60These traffic does not match the enabled IPSec rule "Rule2" nor "Rule3", and the only matching rule "Rule1" isdisabled. So, no IPsec encryption will be achieved.
upvoted 5 times
hkshado
4 years, 8 months ago
I think 172.16.1.30 <--> 172.16.10.60 match rule 3, is it?
upvoted 2 times
...
jelly_baby
4 years, 8 months ago
For Computer 2, it says IPsec encryption, not SMB encryption, so it should be YES NO NO.
upvoted 12 times
...
...
spleach
Most Recent 4 years, 3 months ago
I think the answer is correct: Yes, No, No. The Connection Security Rules will show a different symbol is IPSec was enabled in the rule. Therefore IPSec is not enabled on any of the connections.
upvoted 1 times
...
Matt71
4 years, 4 months ago
expert_ms is i right. Yes, No, Yes, as when ports are not specified connection direction doesn't matter.
upvoted 1 times
...
SamsOtro
4 years, 5 months ago
Looks like Yes, No, No, to me. Last two ask about IPSec encryption - of which there is no indication of use/configuration.
upvoted 2 times
...
expert_ms
4 years, 5 months ago
Yes, No, Yes
upvoted 4 times
rayman456
4 years, 5 months ago
For server1 to computer1 is it because of Rule 3? So how come not vice versa? Just curous thank you.
upvoted 1 times
Matt71
4 years, 4 months ago
If the port(s) is(are) not specified connection direction doesn't matter. Tested in lab. The IPSec was established whatever endpoint initiated a connection.
upvoted 2 times
...
...
...
buiminhnhat
5 years ago
Answer correct: Yes, Yes, No
upvoted 2 times
...
