Exam 70-486 topic 1 question 85 discussion

DRAG DROP -
You plan a new ASP. NET MVC application.
The application uses the Model-View Controller (MVC) pattern to separate the modeling of the domain, the presentation, and the actions. This separation is based on user input into three separate classes.
You need to diagram the structural relationship between the three classes.
What should you do? To answer, drag the appropriate object to the correct location or locations. Each object may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.

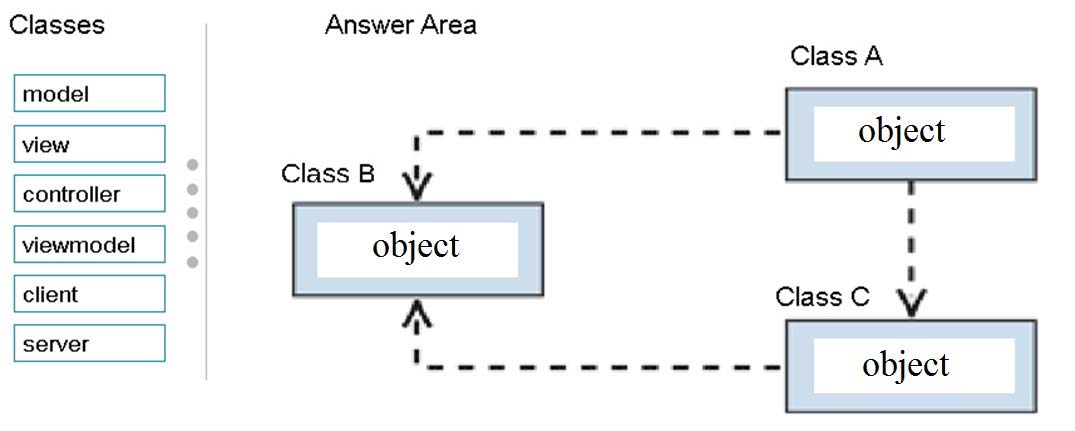

Select and Place:

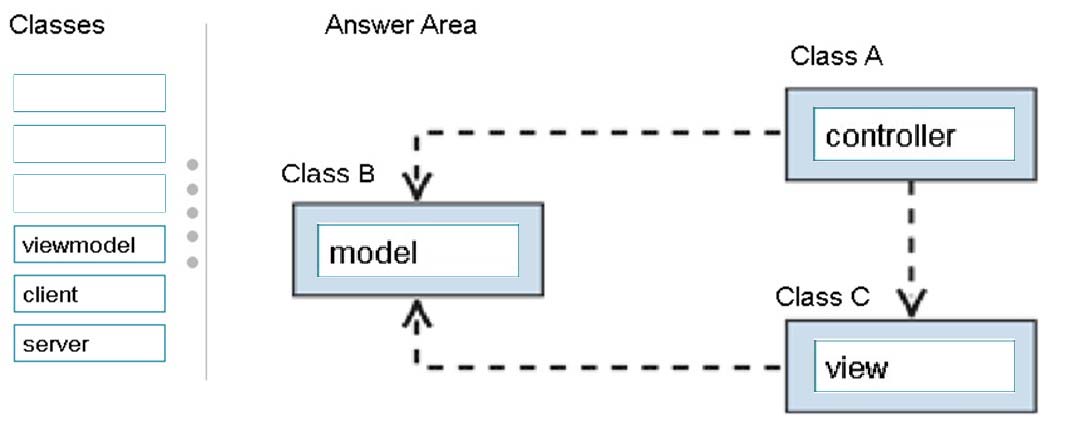

Suggested Answer:

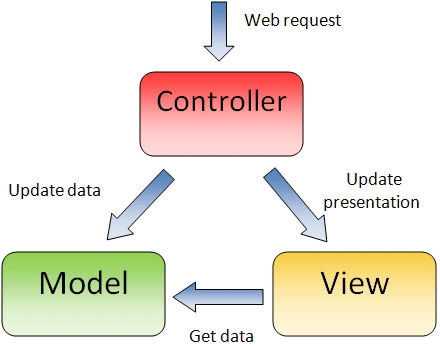

Graphically, MVC can be shown like on image bellow:

References:
http://www.beansoftware.com/ASP.NET-Tutorials/Intro-ASP.NET-MVC.aspx
