Exam 70-417 topic 1 question 252 discussion

Your network contains an Active Directory domain named contoso.com. The domain contains servers named Server1 and Server2 that run Windows Server 2012
R2. Server1 has the IP Address Management (IPAM) Server feature installed. You install the IPAM client on Server2.

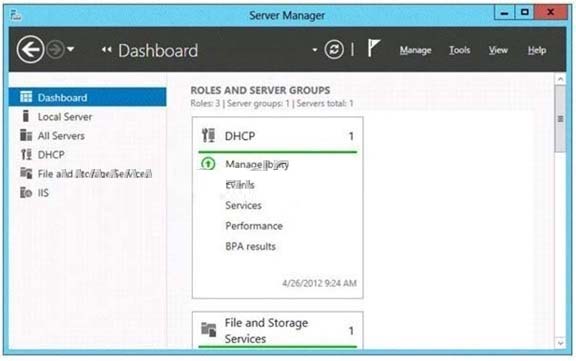

You open Server Manager on Server2 as shown in the exhibit. (Click the Exhibit button.)
You need to manage IPAM from Server2.
What should you do first?

Suggested Answer: C 🗳️
In the exhibit, we can see that only one server is managed with Server Manager on Server2 (itself, as in a Server, Server Manager always contains at least the server itself):

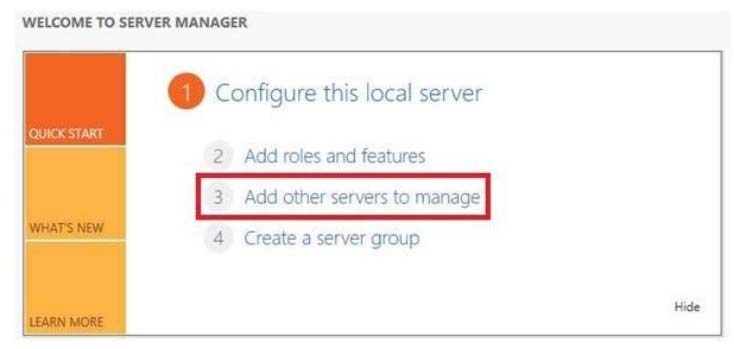

So we can be sure that Server1 is not added to Server2 ServerManager Console. so if we want to manage IPAM, we should add Server1 to Server2's Server

Manager -
http://technet.microsoft.com/en-us/library/hh831622.aspx
Step-by-Step: Configure IPAM to Manage
Your IP Address Space IP Address Management (IPAM) in Windows Server?2012 is a framework for discovering, monitoring, managing and auditing IP address space on a corporate network. IPAM provides the following features:
Automatic IP address infrastructure discovery
Highly customizable IP address space display, reporting, and management Configuration change auditing for DHCP and IPAM services Monitoring and management of DHCP and DNS services

IP address lease tracking -
[...]

IPAM security groups -
The following local IPAM security groups are created when you install IPAM. IPAM Users:
Members of this group can view all information in server discovery, IP address space, and server management. They can view IPAM and DHCP server operational events, but cannot view IP address tracking information.
IPAM MSM Administrators: IPAM multi-server management (MSM) administrators have IPAM Users privileges and can perform IPAM common management tasks and server management tasks. IPAM ASM Administrators: IPAM address space management (ASM) administrators have IPAM Users privileges and can perform
IPAM common management tasks and IP address space tasks. (that's a user group, not a computer group) IPAM IP Audit Administrators:
Members of this group have IPAM Users privileges and can perform IPAM common management tasks and can view IP address tracking information.
IPAM Administrators: IPAM Administrators have the privileges to view all IPAM data and perform all IPAM tasks. http://www.google.fr/url?sa=t&rct=j&q=&esrc=s&source=web&cd=2&cad=rja&ved=0CDwQ FjAB&url=http%3A%2F%2Fdownload.microsoft.com%2Fdownload%
2FF%2F6%2F9%2FF 69BE7E8-3E99-4A4A-B1898AFADABC6216%2FUnderstand%2520and%2520Troubleshoot%2520IP%2520Address%
2520Management%2520(IPAM)%2520in%2520Windows%2520Server%25208%2520Beta . docx&ei=5xXWUIzRAsaQhQeUz4GQCg&usg=AFQjCNGh5tHzxwcaU9vXDGmPUgtjfPvhn w&bvm=bv.1355534169,d.d2k
(download.microsoft.com)
Understand and Troubleshoot IP Address Management (IPAM) in Windows Server 8 Beta If you are accessing the IPAM server remotely using ServerManager
IPAM client RSAT, then you must be a member of the WinRMRemoteWMIUsers group on the IPAM server, in addition to being a member of the appropriate IPAM security group (or local Administrators group).
Installation Process ?IPAM Client
Although the IPAM client feature is automatically installed on a Windows Server "8
" Beta server, along with installation of the IPAM Server feature, this component can also be installed or uninstalled on its own. Click through the Add roles and features wizard screens to select Role or Feature Based Install and the target server. On the
Select Features screen, select Remote Server Administration Tools -> Feature Administration Tools -> IP Address Management (IPAM) Client. Click Add Features when prompted.
In order for the IPAM client to connect to an IPAM server, you must ensure that the target IPAM server is added to the Server Manager purview using the Add Servers wizard launched from the Manage menu. If both IPAM client and IPAM server are running on the same server, then by default the IPAM UI connects to the local IPAM server instance.
