Exam 70-417 topic 1 question 676 discussion

Your corporate network includes an Active Directory Domain Services (AD DS) domain named contoso.com. The domain contains a Windows Server 2012 R2 computer that is named Server1. On Server1 the role Windows Server Update Services is installed. You have created a new Group Policy object (GPO). To configure the Windows Update settings of the client computer so that Windows updates are every Wednesday installed at 13:00 clock.

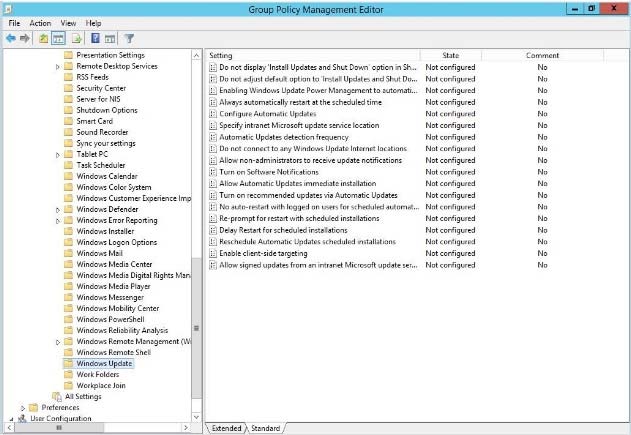

Which policy will configure? (To be configured dialog box shown in the picture. Click the Drawing button.)

Suggested Answer: A 🗳️
The policy Configure Automatic Updates determines whether the computer security updates and other important downloads obtained via the Windows Automatic
Updates service. In addition, you can specify one of the following options and a timetable for the installation:
2 =notify before downloading any updates and notify again before installation. If Windows detects updates that can be applied to the computer, an icon in the status area with a message that informs you that updates are available for download. Clicking the icon or message, you can select to download updates. The selected updates are then downloaded from Windows in the background. After downloading is complete, an icon in the status area again displayed that informs you that the updates can be installed. When you click the icon or message, you can select the updates that you want to install.
Automatically download 3 = (default) updates and notify you of updates installable Windows checks for updates that can be applied to the computer, and loads these automatically in the background without (the user is not notified during the process or disturbed). After downloading has been completed, the status area, the icon is displayed, informing you that the updates can be installed. When you click the icon or message, you can select the updates that you want to install
Automatically download 4 = Updates and schedule that I specify install Specify the schedule using the options in the Group Policy setting. By default, installations are planned daily for 3 clock in the morning, if no timetable is given. The completion of the update installation, if a restart is required, Windows will automatically restart the computer. (If a user is logged on to the computer when Windows is restarted, the user is notified and can delay the restart.)
5 = places allow administrators to select the configuration mode for the update installation through Automatic Updates This option can be enabled with local administrators, on the Control Panel icon "Automatic Updates" option to select a configuration. You can select a date for a planned installation example itself.
Local administrators will not be allowed to disable the configuration for "Automatic Updates"

References: https://docs.microsoft.com/en-us/windows/deployment/update/waas-wu-settings#allow-signed-updates-from-an-intranet-microsoft-update-service- location
