Exam AZ-103 topic 11 question 2 discussion

Actual exam question from Microsoft's AZ-103
Question #: 2
Topic #: 11
[All AZ-103 Questions]

HOTSPOT -
You are evaluating the connectivity between the virtual machines after the planned implementation of the Azure networking infrastructure.
For each of the following statements, select Yes if the statement is true. Otherwise, select No.

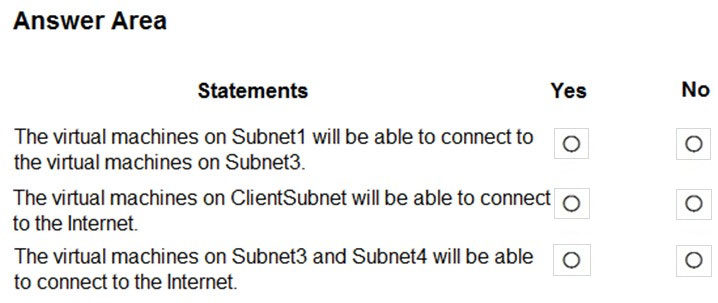

Hot Area:

Show Suggested Answer Hide Answer

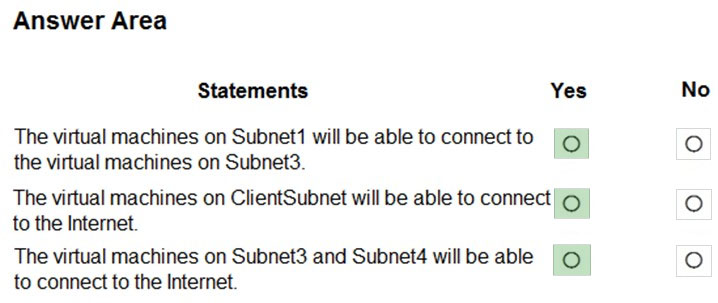

Suggested Answer:
Once the VNets are peered, all resources on one VNet can communicate with resources on the other peered VNets. You plan to enable peering between Paris-
VNet and AllOffices-VNet. Therefore VMs on Subnet1, which is on Paris-VNet and VMs on Subnet3, which is on AllOffices-VNet will be able to connect to each other.
All Azure resources connected to a VNet have outbound connectivity to the Internet by default. Therefore VMs on ClientSubnet, which is on ClientResources-VNet will have access to the Internet; and VMs on Subnet3 and Subnet4, which are on AllOffices-VNet will have access to the Internet.
Reference:
https://docs.microsoft.com/en-us/azure/virtual-network/virtual-network-peering-overview https://docs.microsoft.com/en-us/azure/networking/networking-overview#internet-connectivity
Configure and manage virtual networks
by Jmontenegro at June 7, 2020, 11:31 a.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
tashakori
1 year, 2 months ago
Given answer is correct
upvoted 1 times
...
I
4 years, 2 months ago
The answers are triple Yes, which is correct. Although it's not clear stated by the question, different loctaions work together must has Internet connection. Just make life easier.
upvoted 1 times
...
Neonlight8
4 years, 3 months ago
1. Yes - peering is enabled between Subnet 1 <> Subnet 3 2. Yes - Each office has dedicated internet link, no NSG default behaviour 3. Yes - Each office has dedicated internet link, no NSG default behaviour
upvoted 2 times
mroczyslaw
4 years, 1 month ago
"Each office" means on-prem, but question is about virtual machines on Azure...
upvoted 1 times
...
...
simanastasiya
4 years, 5 months ago
in exam az-104 29nov 2020
upvoted 4 times
...
Thi
4 years, 6 months ago
I will go for yes,yes,yes
upvoted 1 times
...
nfett
4 years, 11 months ago
i think 2nd one is no. there is no defined access to the internet for the clientsubnet
upvoted 2 times
macco455
4 years, 11 months ago
By Default there is internet connectivity. There is no NSG associated with the subnet to block it
upvoted 8 times
...
_syamantak
4 years, 9 months ago
No nfett, all access to Internet is opened by default in Azure, unless defined otherwise by an NSG. We have a statement "Default Azure system routes that will be the only routes used to route traffic", hence all defaults work here
upvoted 4 times
...
...
Jmontenegro
4 years, 11 months ago
it's correct, for the question #2and #3, >>> https://docs.microsoft.com/en-us/azure/networking/networking-overview#vnet
upvoted 3 times
...
