Exam 70-743 topic 1 question 29 discussion

Actual exam question from Microsoft's 70-743

Question #: 29
Topic #: 1

HOTSPOT -
You have a Windows Server 2016 failover cluster that has a cluster network named ClusterNetwork1.
You need to ensure that ClusterNetwork1 is enabled for cluster communication only.
What command should you run? To answer, select the appropriate options in the answer area.

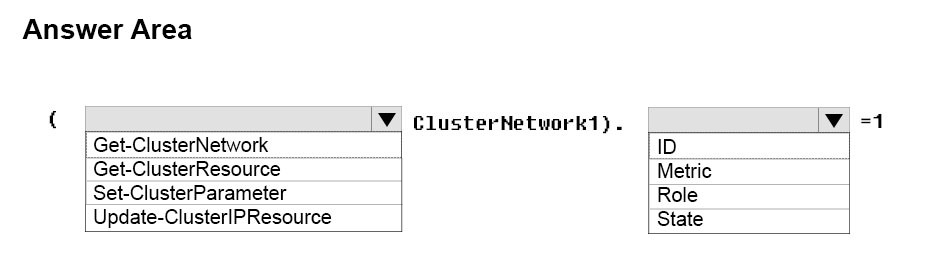

Hot Area:

Show Suggested Answer

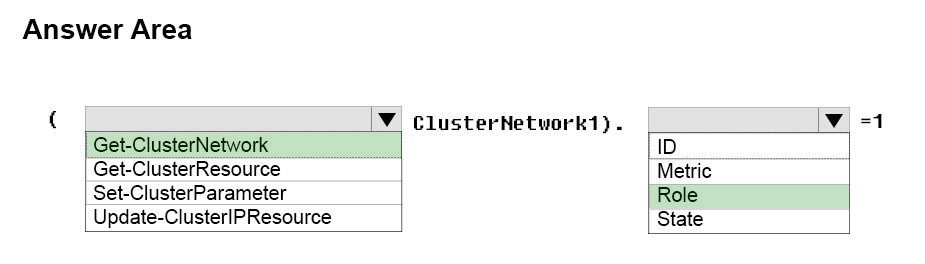

Suggested Answer:

Box 1: Get-ClusterNetwork -
Cluster network roles can be changed using PowerShell command, Get-ClusterNetwork.
For example:
(Get-ClusterNetwork "Cluster Network 1"). Role =1

Box 2: Role -
Cluster Network Roles:
Cluster networks are automatically created for all logical subnets connected to all nodes in the Cluster. Each network adapter card connected to a common subnet will be listed in Failover Cluster Manager. Cluster networks can be configured for different uses.
Three roles:
* Disabled for Cluster Communication (value 0)
* Enabled for Cluster Communication only (value 1)
* Enabled for client and cluster communication (value 3)
References: https://blogs.technet.microsoft.com/askcore/2014/02/19/configuring-windows-failover-cluster-networks/
