Exam AZ-120 topic 5 question 10 discussion

Actual exam question from Microsoft's AZ-120

Question #: 10
Topic #: 5

You plan to deploy a high availability SAP environment that will use a failover clustering solution.

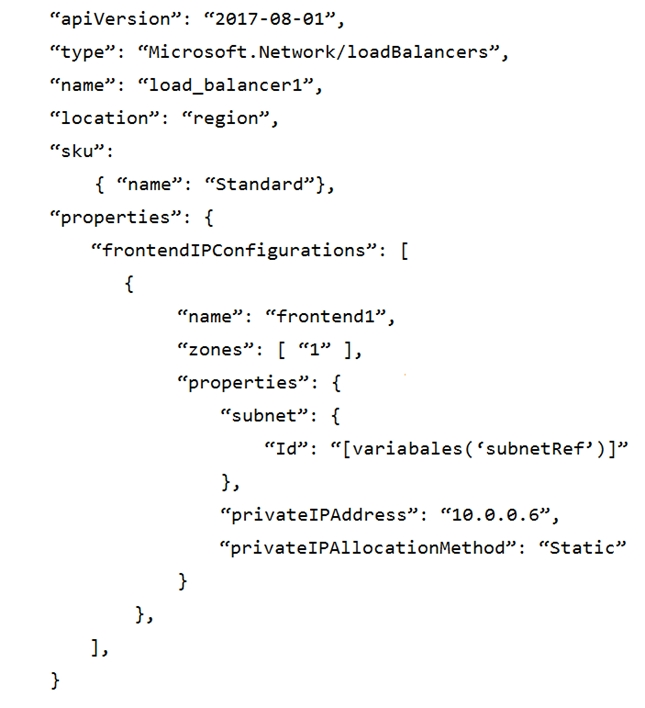

You have an Azure Resource Manager template that you will use for the deployment. You have the following relevant portion of the template.

What is created by the template?

A. a zone-redundant public IP address for the internal load balancer
B. a zone-redundant frontend IP address for the internal Azure Basic Load Balancer
C. a zone-redundant frontend IP address for the internal Azure Standard Load Balancer
D. a zonal frontend IP address for the internal Azure Standard Load Balancer

Show Suggested Answer

Suggested Answer: C 🗳️
Reference:
https://docs.microsoft.com/en-us/azure/virtual-machines/workloads/sap/high-availability-guide-standard-load-balancer-outbound-connections

by deepu_agrawal at June 22, 2020, 9:10 p.m.

Comments

Submit Cancel

Kapsy

Highly Voted 1 year, 3 months ago

Answer should be 'D'. The JSON file shows parameter 'Zone=1' which means this JSON will create a Zonal Frontend. If a Zone redundant ILB has to be created then the JSON file will not have parameters related to Zone.

upvoted 11 times

...

Kalyansarkar

Highly Voted 1 year, 4 months ago

In the context of the load balancer,zone-redundant always means multiple zones and zonal means isolating the service to a single zone.You can choose to have a frontend guaranteed to a single zone, which is known as a zonal frontend. This scenario means any inbound. I think Ans is D.

upvoted 7 times

...

PradyBear

Most Recent 7 months ago

answer is D . Since a Zone number is specified. A Load Balancer can either be zone redundant, zonal, or non-zonal. Goto azure portal and create a load balancer it would give you 5 options possibly for Availability Zone : No Zone , Zone Redundant , 1 , 2, 3. https://docs.microsoft.com/en-us/azure/load-balancer/load-balancer-standard-availability-zones

upvoted 5 times

...
