Actual exam question from Microsoft's AZ-120

Question #: 12
Topic #: 2

HOTSPOT -
You plan to deploy a highly available ASCS instance to SUSE Linux Enterprise Server (SLES) virtual machines in Azure.
You are configuring an internal Azure Standard Load Balancer for the ASCS instance.
How should you configure the internal Standard Load Balancer? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

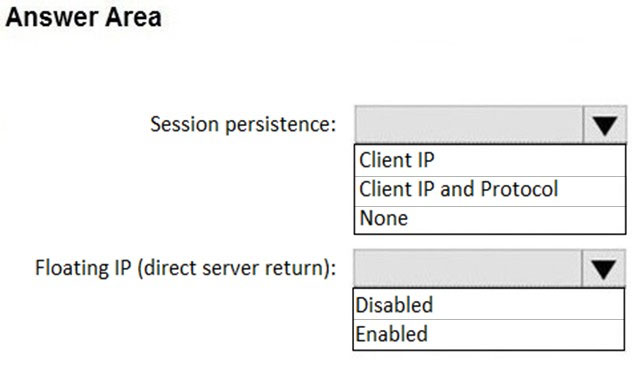

Hot Area:

Show Suggested Answer

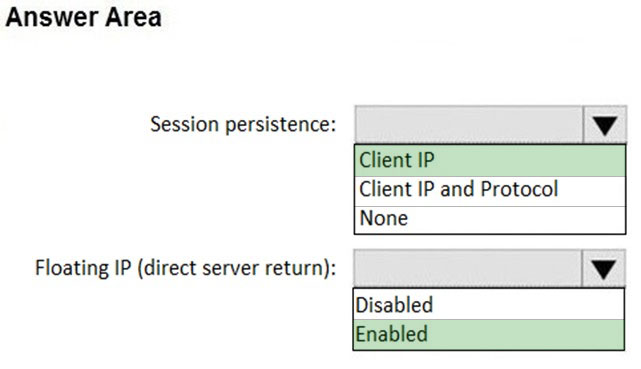

Suggested Answer:

Box 1: Client IP -
The standard load balancer allows stateful sessions to remain as there are no IP address changes with this method.

Box 2: Enabled -
Make sure to enable Floating IP.
References:
https://docs.microsoft.com/en-us/azure/virtual-machines/workloads/sap/high-availability-guide-suse

by johnnyj at June 29, 2020, 12:54 p.m.

Comments

Submit Cancel

fastlink

Highly Voted 3 years, 1 month ago

It should session persistence = none, floating ip = enabled. This is cluster setup with single server running at one time. there is no requirement for session persistent and ASCS is a onetime access only. It is not a web application.

upvoted 9 times

d0bermannn

2 years, 4 months ago

best comment here as 'no requirement for session persistent and ASCS is a onetime access only'

upvoted 1 times

...

johnnyj

Highly Voted 3 years, 7 months ago

session persistence = none floating ip = enabled https://github.com/MicrosoftLearning/AZ-120-Planning-and-Administering-Microsoft-Azure-for-SAP-Workloads/blob/master/Instructions/AZ-120_Lab01b-Azure_VM_Windows_Clustering.md

upvoted 8 times

Kalyansarkar

3 years, 7 months ago

12. From the az12001b-cl-lb1 - Load balancing rules blade, add a network load balancing rule with the following settings: This is for Network load balancing rule .

upvoted 3 times

AS007

3 years, 6 months ago

Given answer seems to be correct, thoughts?

upvoted 6 times

McDee

3 years, 6 months ago

session persistence = none floating ip = enabled This is correct answer.

upvoted 9 times

...

AJ_SAP

2 years, 7 months ago

this is absolutely correct Ans

upvoted 2 times

...

Mtree

Most Recent 7 months, 4 weeks ago

None Enabled https://blogs.sap.com/2022/04/02/sap-on-azure-sap-web-dispatcher-highly-availability-setup-and-virtual-hostname-ip-configuration-with-azure-load-balancer/

upvoted 1 times

...

PS324

1 year ago

Answer provided is correct https://help.sap.com/doc/a29eaeb9079948e2ac594421b23f7e38/3.0.12/en-US/7c2333ab700610148c00dd71f153734f.html https://learn.microsoft.com/en-us/azure/load-balancer/load-balancer-overview

upvoted 1 times

...

gills

2 years, 11 months ago

Sessions persistence is only none for cookies. Client IP is allowed. The second one is correct, enabled. SS

upvoted 2 times

...

Shub94

2 years, 12 months ago

1. None 2. Enabled

upvoted 3 times

...

NarenderSingh

3 years ago

https://github.com/MicrosoftLearning/AZ-120-Planning-and-Administering-Microsoft-Azure-for-SAP-Workloads/blob/master/Instructions/AZ-120_Lab01b-Azure_VM_Windows_Clustering.md From the az12001b-cl-lb0 blade, add a network load balancing rule with the following Session persistence: None Floating IP (direct server return): Enabled

upvoted 3 times

...

MukeshKhamparia

3 years, 5 months ago

None seems to be correct - https://docs.microsoft.com/en-us/azure/load-balancer/load-balancer-distribution-mode None (hash-based) - Specifies that successive requests from the same client may be handled by any virtual machine. Client IP (source IP affinity 2-tuple) - Specifies that successive requests from the same client IP address will be handled by the same virtual machine. Client IP and protocol (source IP affinity 3-tuple) - Specifies that successive requests from the same client IP address and protocol combination will be handled by the same virtual machine.

upvoted 3 times

...

Kapsy

3 years, 6 months ago

Ans - Session persistence: None. Floating IP: Enabled.

upvoted 4 times

...
