Exam MS-200 topic 2 question 16 discussion

Actual exam question from Microsoft's MS-200

Question #: 16
Topic #: 2

HOTSPOT -
You have a Microsoft Exchange Server 2019 organization.

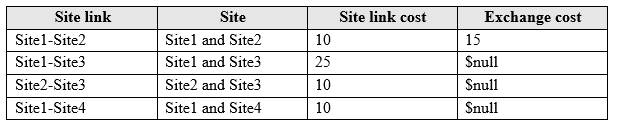

Active Directory contains the site links shown in the following table.

Site1 is configured as a hub site.

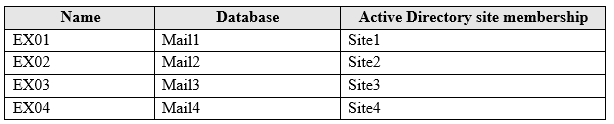

You have the Mailbox servers shown in the following table.

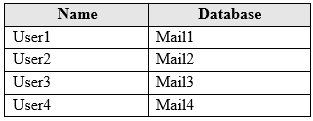

On the Mailbox servers, you have the mailboxes shown in the following table.

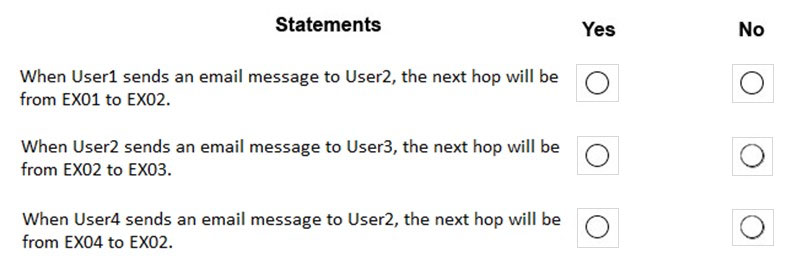

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:

Show Suggested Answer

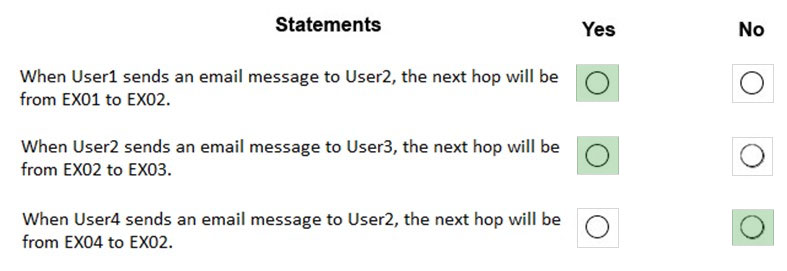

Suggested Answer:

References:
https://docs.microsoft.com/en-us/exchange/route-mail-between-active-directory-sites-exchange-2013-help

by Malik_Kh at July 9, 2020, 2:56 p.m.

Comments

Submit Cancel

mmorgan1234

4 years, 10 months ago

the second one the answer is yes as Whenever a hub site exists along the least-cost routing path for message delivery, the messages are queued and are processed by the Transport service on Mailbox servers in the hub site before they're relayed to their ultimate destination

upvoted 2 times

hitmk5

4 years, 9 months ago

Agreed. This situation described under "Misconfigured Hub Site" at https://docs.microsoft.com/en-us/exchange/route-mail-between-active-directory-sites-exchange-2013-help

upvoted 1 times

...

Malik_Kh

4 years, 11 months ago

Correct answer is Yes / No / No. "In your Exchange organization, you may want to force all message delivery through a specific Active Directory site. You can use the Shell to designate an Active Directory site as a hub site. When you do this, you cause additional overall overhead because more servers are involved in message delivery. For example, consider a message that's sent from Site A to Site E. If the least-cost routing path is Site A-Site B-Site C-Site D-Site E, and you designate Site C as a hub site, the message is relayed from Site A to Site C and then relayed from Site C to Site E." Source : https://docs.microsoft.com/en-us/exchange/route-mail-between-active-directory-sites-exchange-2013-help

upvoted 1 times

...
