Exam AZ-220 topic 3 question 5 discussion

Actual exam question from Microsoft's AZ-220

Question #: 5
Topic #: 3

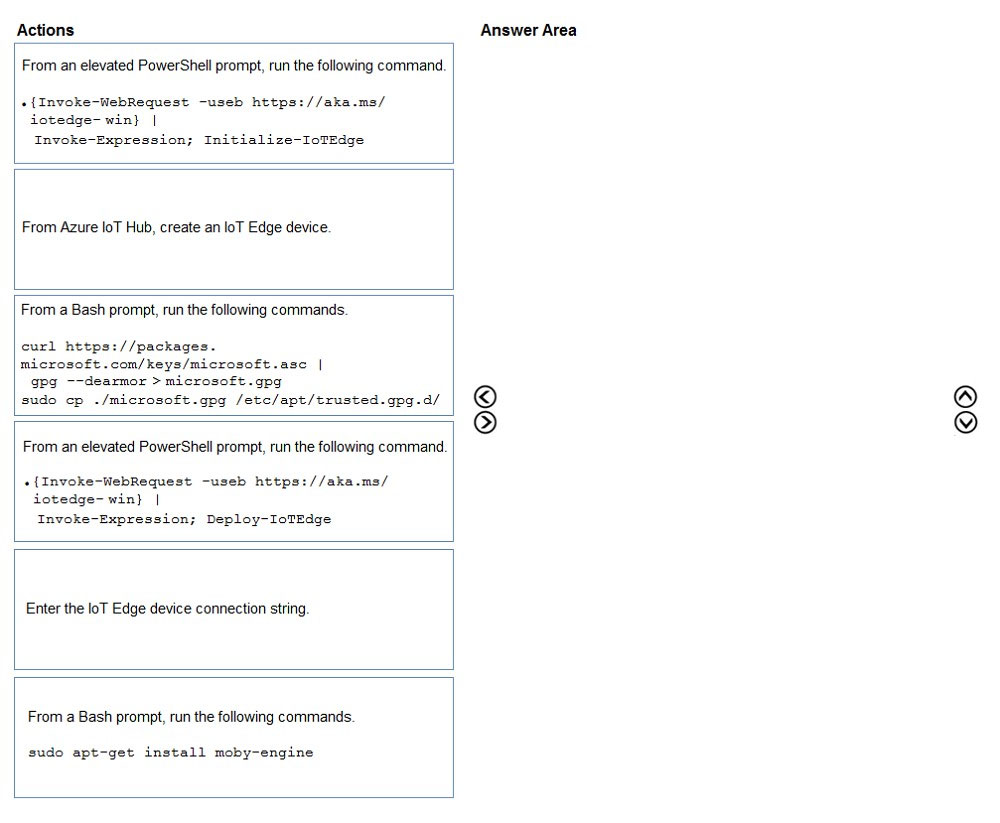

DRAG DROP -
You need to install the Azure IoT Edge runtime on a new device that runs Windows 10 IoT Enterprise.
Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:

Show Suggested Answer

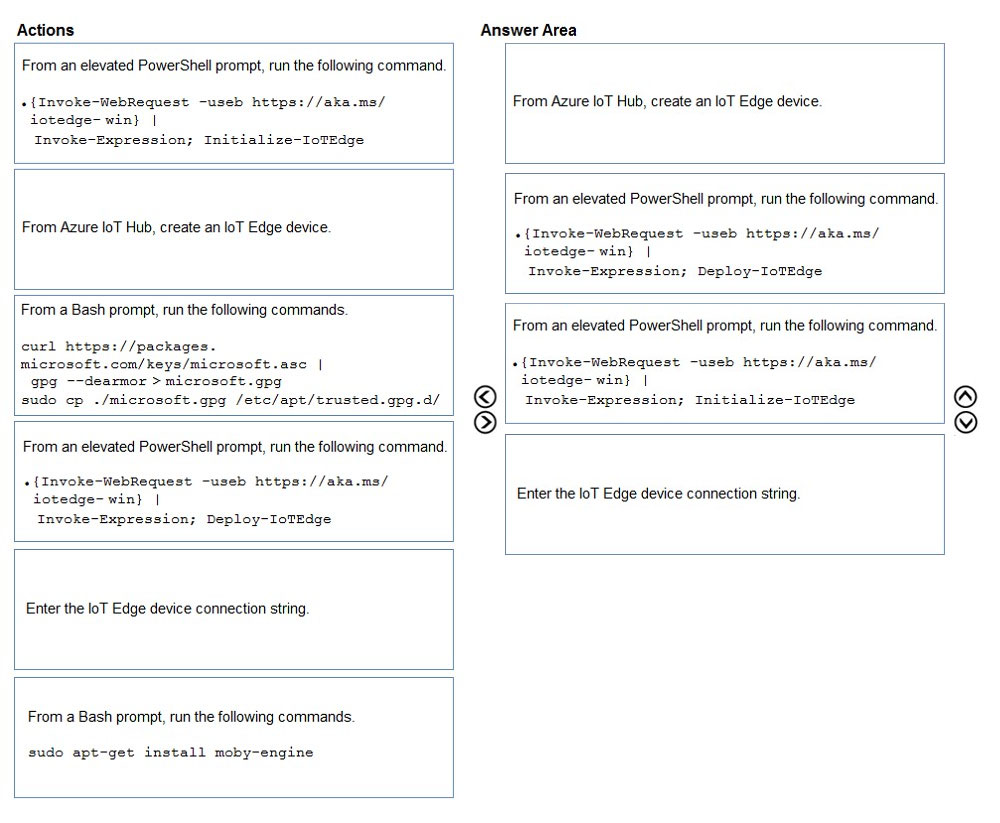

Suggested Answer:

Step 1: From Azure IoT Hub, create an IoT Edge Device

Step 2: Deploy-IoTEdge -
The Deploy-IoTEdge command checks that your Windows machine is on a supported version, turns on the containers feature, and then downloads the moby runtime and the IoT Edge runtime. The command defaults to using Windows containers.
{Invoke-WebRequest -useb https://aka.ms/iotedge-win} | Invoke-Expression; `

Deploy-IoTEdge -

Step 3: Initialize-IoTEdge -
The Initialize-IoTEdge command configures the IoT Edge runtime on your machine. The command defaults to manual provisioning with Windows containers.
{Invoke-WebRequest -useb https://aka.ms/iotedge
Step 4: Enter the IoT Edge device connection string.
When prompted, provide the device connection string that you retrieved in step 1. The device connection string associates the physical device with a device ID in
IoT Hub.
Reference:
https://docs.microsoft.com/en-us/azure/iot-edge/module-composition

by angelsrp at July 23, 2020, 9:46 p.m.

Comments

Submit Cancel

sballmer

Highly Voted 4 years, 4 months ago

Completely unnatural to first Deploy and then Initialize, but Answer are correct... 1. Create edge device in IoT HuB 2. Run Deploy Command 3. Run Initialize Command 4. Enter Edge Device Connection String

upvoted 14 times

...

tita_tovenaar

Highly Voted 3 years, 11 months ago

just to confirm, moby and curl options are applicable for Linux. As this is Windows, answers. are correct.

upvoted 6 times

d0bermannn

3 years, 4 months ago

since pwsh 7+ we can fire it on many *nix boxes)

upvoted 1 times

...

liberty123

Most Recent 3 years, 2 months ago

Correct answer

upvoted 1 times

...

angelsrp

4 years, 10 months ago

Ans are correct: https://docs.microsoft.com/en-us/azure/iot-edge/how-to-install-iot-edge-windows

upvoted 6 times

angelsrp

4 years, 10 months ago

After running the second cmlet you are prompted for the string.

upvoted 4 times

getazusername

4 years, 6 months ago

Thanks for the information. otherwise there would be two possible solutions. accuring your comment, you have to create the device before running the cmdlets

upvoted 3 times

...
