Exam 70-743 topic 1 question 107 discussion

Actual exam question from Microsoft's 70-743

Question #: 107
Topic #: 1

You have two Hyper-V hosts named Server1 and Server2 that run Windows Server 2016. Server1 and Server2 are connected to the same network.
On Server1 and Server2, you create an external network switch named Switch1.

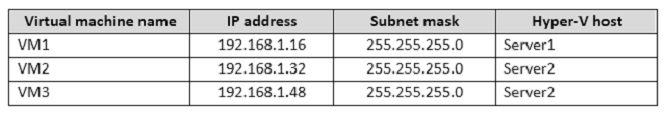

You have the virtual machines shown in the following table.

All three virtual machines are connected to Switch1.
You need to prevent applications in VM3 from being able to capture network traffic from VM1 or VM2. The solution must ensure that VM1 retains network connectivity.
What should you do?

A. On Server2, configure the VLAN ID setting of Switch1.
B. On Server2, create an external switch and connect VM3 to the switch.
C. Modify the subnet mask of VM1 and VM2.
D. Configure network virtualization for VM1 and VM2.

Show Suggested Answer

Suggested Answer: D 🗳️

by MelvinJohn at July 30, 2020, 9:28 p.m.

Comments

Submit Cancel

smp

4 years, 3 months ago

I suggest B. On Server2, create an external switch and connect VM3 to the switch. - You need to keep connectivity up on VM2 - external switch "Allows virtual machines on the same Hyper-V server to communicate with each other." - they are clearly on different Hyper V Hosts. https://docs.microsoft.com/en-us/windows-server/virtualization/hyper-v/get-started/create-a-virtual-switch-for-hyper-v-virtual-machines

upvoted 1 times

...

MelvinJohn

4 years, 9 months ago

A? https://blogs.technet.microsoft.com/networking/2016/l 0/26/network-virtualization-with-ws2016-sdn/

upvoted 2 times

...
