Exam 70-357 topic 1 question 38 discussion

Case Study -
This is a case study. Case studies are not limited separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other question on this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next sections of the exam. After you begin a new section, you cannot return to this section.

To start the case study -
To display the first question on this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. If the case study has an
All Information tab, note that the information displayed is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.

Background -
Fabrikam is a commercial bank. The primary customers are individuals and employers with up to 10,000 employees. Fabrikam provides Internet banking services to customers.
You are developing a Universal Windows Platform (UWP) app for Fabrikam that extends the Internet banking to a UWP app.

Business Requirements -

Core functionality -
Users must be able to access accounts, view balances, view recent transactions, and deposit checks by using the UWP app.

Usability -
The app must use industry proven design patterns across the app. All navigational elements must be visible at all times.

Security -
The app must provide secure transactions to protect customer privacy.

Technical Requirements -

Data -
The app must use a file based database. You must use a code first entity framework approach.

User interface -
You must use a Model-View-ViewModel (MVVM) pattern.

Users must be able to access all content through the top-level navigation after they sign in.

The app must allow the user to upload up to 50 images (front and back) of checks to deposit.

During the upload process, the app must be responsive to any other user actions.

The app must only upload images when no other pending inputs are in the queue.

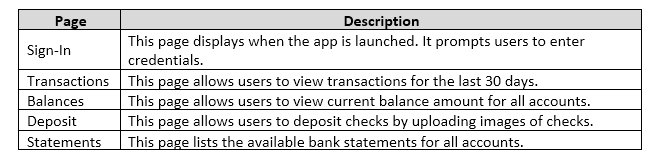

You must implement the following pages:


Network and web service -
The app must meet the following requirements related to networking and web services:
Connect to a web service over a secure HTTP connection to upload images.

Connect to Fabrikams core web service to retrieve account information.

Use networking technology already available in the .Net Framework.

Consume the JSON that the Fabrikam core web service provides.


User data and alerts -
The app must meet the following requirements related to user data and alerts:
Download new monthly bank statements when possible. The download process must not affect the performance of the app.

Report to the user when the statements are downloaded to the device.

Write a log entry when statement downloads are not successful.

Periodically check for user activity and automatically log the user out when there is no activity for more than 15 minutes.


Security -
The app must meet the following requirements related to security:
Use a multi-factor authentication (MFA) by using email and a verification code to identify the user.

Securely store credentials and retrieve credentials.

Automatically sign in the user irrespective of the device that is used to sign in to the app.

Store the resource name within the app itself.

Connect to an authentication app by using the URI schema fabrikam-security://oauth/.


Application Structure -

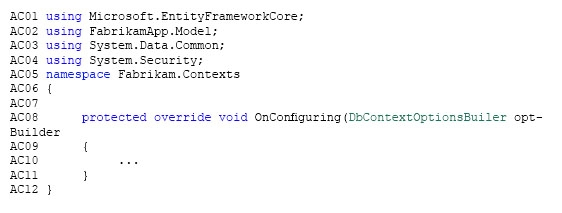

AccountContext.cs -
Relevant portions of the app files are shown below. Line numbers in the code segments are included for reference only and include a two-character prefix that denotes the specific file to which they belong.


ImageManager.cs -
Relevant portions of the app files are shown below. Line numbers in the code segments are included for reference only and include a two-character prefix that denotes the specific file to which they belong.

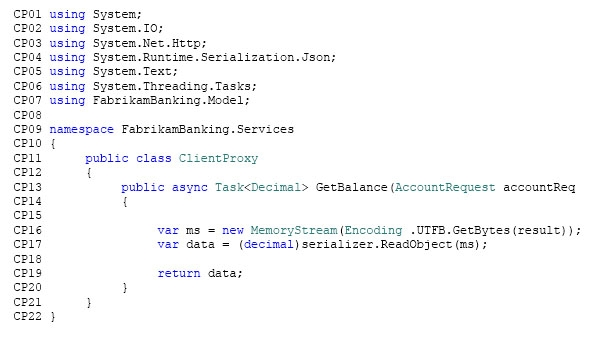

ClientProxy.cs -
Relevant portions of the app files are shown below. Line numbers in the code segments are included for reference only and include a two-character prefix that denotes the specific file to which they belong.

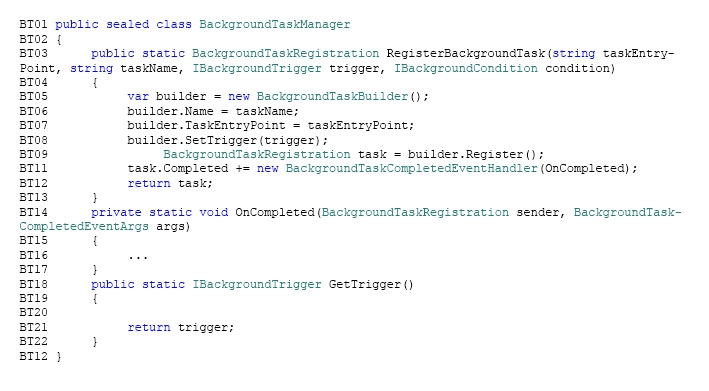

BkgTaskMgr.cs -
Relevant portions of the app files are shown below. Line numbers in the code segments are included for reference only and include a two-character prefix that denotes the specific file to which they belong.

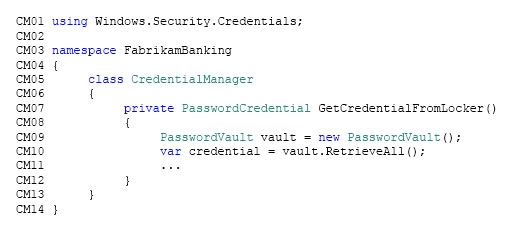

CredentialManager.cs -
Relevant portions of the app files are shown below. Line numbers in the code segments are included for reference only and include a two-character prefix that denotes the specific file to which they belong.

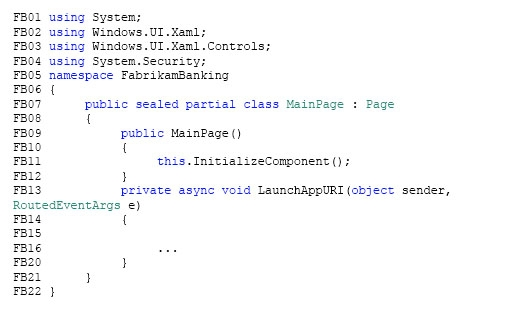

MainPage.cs -
Relevant portions of the app files are shown below. Line numbers in the code segments are included for reference only and include a two-character prefix that denotes the specific file to which they belong.

You need to configure authentication for the app.
Which two technologies should you use? Each correct answer presents part of the solution.

Suggested Answer: Explanation 🗳️
Microsoft Hello -
Microsoft Hello provides simple multi-factor authentication using facial recognition (or iris, or fingerprints) that is used to access the Microsoft Passport private key stored in the secure TPM chip. For the first time, Microsoft has included the biometric software (middleware) in Windows 10 to support biometrics for authentication. In previous versions of Windows, the OEM (HP, Dell, Lenovo, etc) needed to add its own biometric middleware to support biometric authentication.
From scenario: The app must meet the following requirements related to security:
Use a multi-factor authentication (MFA) by using email and a verification code to identify the user.

Securely store credentials and retrieve credentials.

Automatically sign in the user irrespective of the device that is used to sign in to the app.

Store the resource name within the app itself.

Connect to an authentication app by using the URI schema fabrikam-security://oauth/.


Note: Microsoft Passport -
Microsoft has resurrected the Passport moniker for a new PKI credential system that requires multi-factor authentication. Most interesting about Microsoft Passport is that it fully supports the Fast IDentity Online (FIDO) Alliance standards which means it will work with many web/cloud services without modification. The plan is that users of cloud services supporting FIDO is that there will no longer be passwords associated with the users account.
Microsoft Passport involves a user logging onto the Windows 10 computer with multi-factor (PIN, face, iris, fingerprint, etc) and either creating a new account or associating an existing account with an IDentity Provider (IDP). Windows generates a public/private key pair with the private key stored securely outside of the
Windows 10 OS. The public key is associated with the account so that a challenge can be sent that can only correctly respond to the IDP. Another key point to the
Microsoft Passport credential system is that the user needs to enroll every device used to access the service (IDP).
Reference:
https://adsecurity.org/?p=1535
