Exam 70-744 topic 1 question 82 discussion

Actual exam question from Microsoft's 70-744

Question #: 82
Topic #: 1

You have a Hyper-V host named Server1 that runs Windows Server 2016.

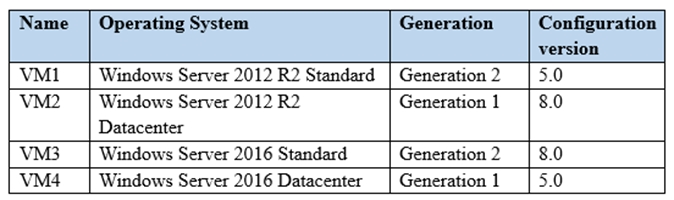

Server1 hosts the virtual machines configured as shown in the following table.

All the virtual machines have two volumes named C and D.
You plan to implement BitLocker Drive Encryption (BitLocker) on the virtual machines.

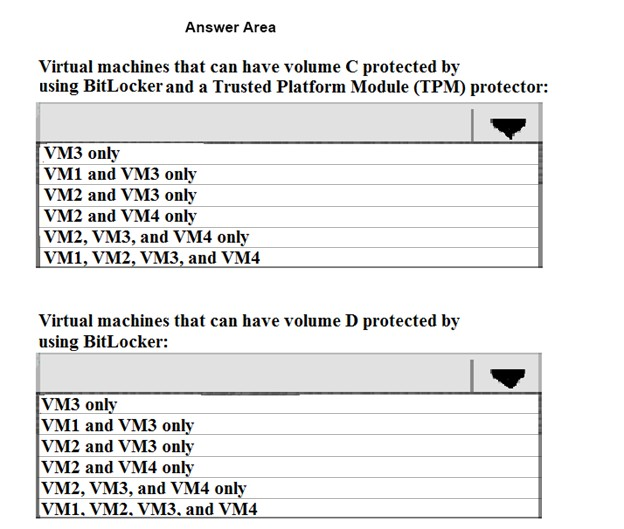

Which virtual machines can have their volumes protected by using BitLocker? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

Show Suggested Answer

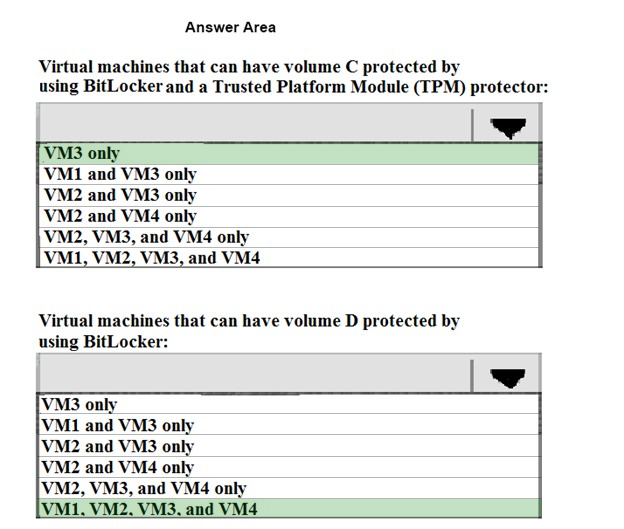

Suggested Answer:

References:
https://docs.microsoft.com/en-us/windows-server/virtualization/hyper-v/deploy/upgrade-virtual-machine-version-in-hyper-v-on-windows-or-windows-server http://www.shulerent.com/2012/09/04/locking-down-a-virtual-machine-with-bitlocker/

by Kamikazekiller at Aug. 9, 2020, 3 p.m.

Comments

Submit Cancel

Timock

4 years, 5 months ago

The following table shows the minimum virtual machine configuration version required to use some Hyper-V features. https://docs.microsoft.com/en-us/windows-server/virtualization/hyper-v/deploy/upgrade-virtual-machine-version-in-hyper-v-on-windows-or-windows-server Answer: VM3 only / ALL VMs. Virtual Trusted Platform Module (vTPM) 7.0

upvoted 1 times

...

Yebubbleman

4 years, 5 months ago

I think two important details for the second part of the question are that (a) Volume D is the drive being encrypted and (b) that you don't necessarily need a vTPM to enable BitLocker on a guest OS, thereby allowing version 5.0 VMs, Gen 1 VMs, and guests running Windows Server 2012 R2 and older to have BitLocker enabled.

upvoted 1 times

Yebubbleman

4 years, 5 months ago

That said, you DO need a Gen 2, 8.0 VM in order to have vTPM which is what is required for the first part of the question.

upvoted 1 times

chingcha

4 years, 5 months ago

1. VM3 Only, 2. VM1/2/3/4 Virtual Trusted Platform Module (vTPM) requires Config v7.0 https://docs.microsoft.com/en-us/windows-server/virtualization/hyper-v/deploy/upgrade-virtual-machine-version-in-hyper-v-on-windows-or-windows-server

upvoted 1 times

...

SamsOtro

4 years, 6 months ago

Given answer is correct

upvoted 3 times

...

allanp3na

4 years, 7 months ago

correct!

upvoted 3 times

...
