HOTSPOT -
You have a server named LON-SRV1 that runs Windows Server 2012 R2. LON-SVR1 has the Remote server role installed. LON-SVR1 is located in the perimeter network.

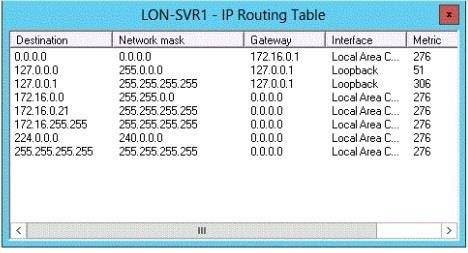

The IPv4 routing table on LON-SVR1 is configured as shown in the following exhibit. (Click the Exhibit Button)
Your company purchases an additional router named router named Router1. Router1 has an interface that connects to perimeter network and an interface that connects to the Internet. The IP address of interface that connects to the perimeter network is 172.16.0.2.
You need to ensure that LON-SRV1 will route traffic to the internet by using Router1 if the current detail gateway is unavailable.
How should you configure the static route on LON-SRV1?

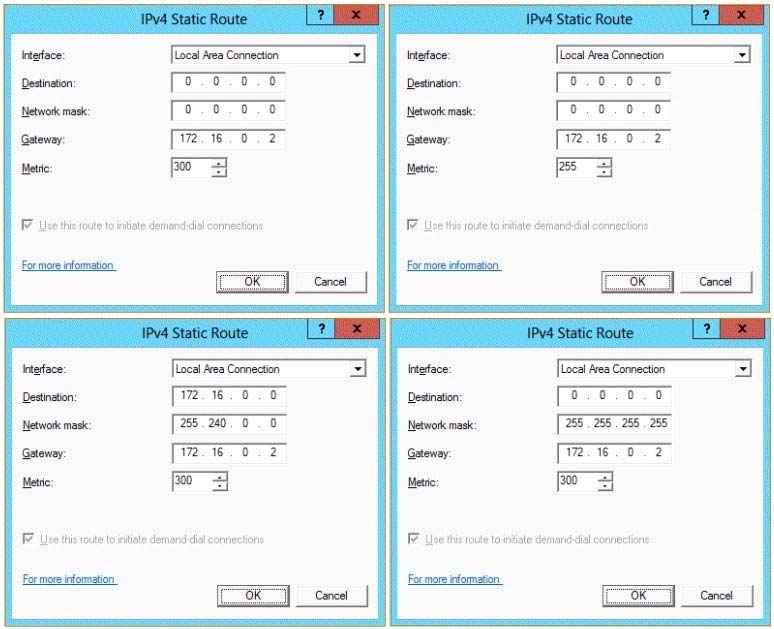

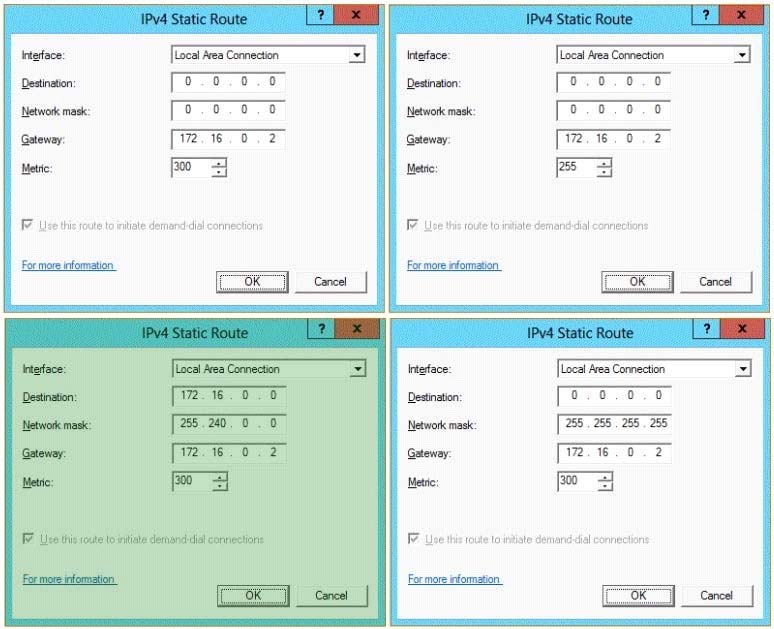

To answer, select the appropriate static route in the answer area.
Hot Area:
ms70743
4 years, 8 months ago
