Exam 70-413 topic 1 question 143 discussion

Actual exam question from Microsoft's 70-413

Question #: 143
Topic #: 1

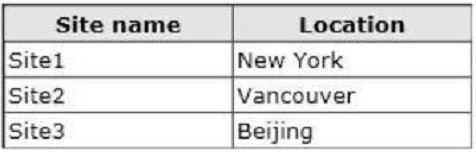

Your network contains an Active Directory domain named contoso.com. The domain contains three Active Directory sites. The Active Directory sites are configured as shown in the following table.

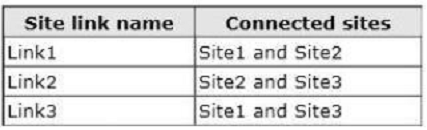

The sites connect to each other by using the site links shown in the following table.

You need to design the Active Directory site topology to meet the following requirements:
✑ Ensure that all replication traffic between Site2 and Site3 replicates through Site1 if a domain controller in Site1 is available.
✑ Ensure that the domain controllers between Site2 and Site3 can replicate if all of the domain controllers in Site1 are unavailable.
What should you do?

A. Delete Link3.
B. Create one SMTP site link between Site2 and Site3.
C. Delete Link1.
D. Delete Link2.
E. Disable site link bridging.
F. Create one SMTP site link between Site1 and Site3. Create one SMTP site link between Site1 and Site2.

Show Suggested Answer

Suggested Answer: D 🗳️
Reference:
https://technet.microsoft.com/en-us/library/cc961783.aspx

by falcon4fun at Oct. 7, 2020, 8:11 p.m.

Comments

Submit Cancel

falcon4fun

4 years, 8 months ago

Will it be replicate while Site1 is down? By my logic it should be enabled site lnik bridge between site2 and site3 to successfully replicate without site1.. Am I wrong? But there is no such an answer and there is no info about it has already been enabled..

upvoted 1 times

falcon4fun

4 years, 8 months ago

Hmm. Okay.. Found explanation: As SiteLInkBridging is Enabled by default, Site2 and Site3 are connected through Site1. So replication from Site2 to Site3 go through Site1 even if no DC in Site1 is available

upvoted 1 times

...
