Exam MD-100 topic 4 question 22 discussion

Actual exam question from Microsoft's MD-100
Question #: 22
Topic #: 4
[All MD-100 Questions]

SIMULATION -
Please wait while the virtual machine loads. Once loaded, you may proceed to the lab section. This may take a few minutes, and the wait time will not be deducted from your overall test time.
When the Next button is available, click it to access the lab section. In this section, you will perform a set of tasks in a live environment. While most functionality will be available to you as it would be in a live environment, some functionality (e.g., copy and paste, ability to navigate to external websites) will not be possible by design.
Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn't matter how you accomplish the task, if you successfully perform it, you will earn credit for that task.
Labs are not timed separately, and this exam may more than one lab that you must complete. You can use as much time as you would like to complete each lab.
But, you should manage your time appropriately to ensure that you are able to complete the lab(s) and all other sections of the exam in the time provided.
Please note that once you submit your work by clicking the Next button within a lab, you will NOT be able to return to the lab.

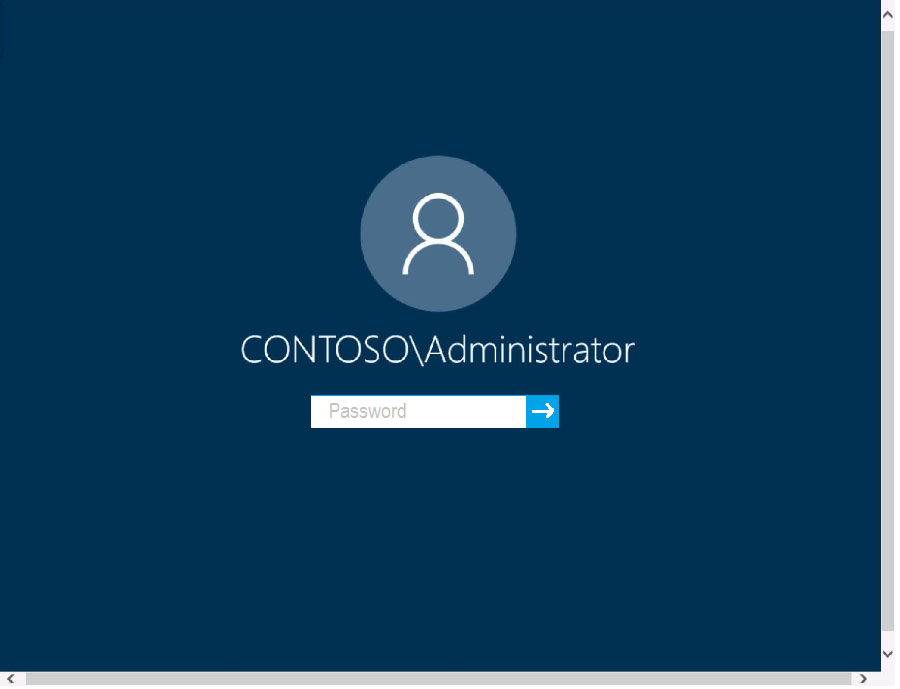

Username and password -

Use the following login credentials as needed:
To enter your password, place your cursor in the Enter password box and click on the password below.

Username: Contoso/Administrator -
Password: Passw0rd!
The following information is for technical support purposes only:

Lab Instance: 10921597 -

You need to ensure that you can successfully ping DC1 from Client3 by using the IP4 address of DC1.

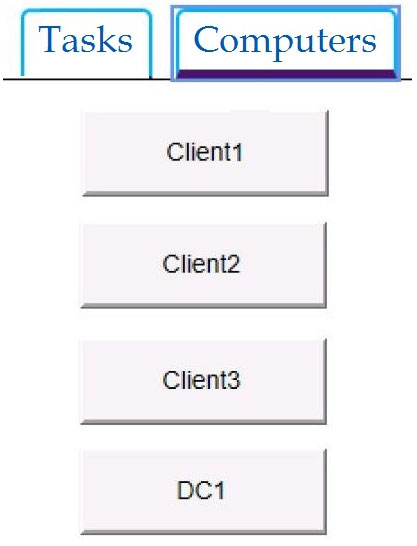

To complete this task, sign in to the required computer or computers.

Show Suggested Answer Hide Answer
Suggested Answer: See explanation below.
✑ On Client3, press Windows+R to access Run.
✑ Type cmd and click OK to access the command prompt.
Type ipconfig and press Enter to check that you have a valid IP address.

✑ On Client3, press Windows+R to access Run.
✑ Type cmd and click OK to access the command prompt.
✑ Type "ping" and the IP address of the Domain Controller (e.g. "ping 172.16.1.43").
Reference:
http://www.turn-n-burn.com/DestinyNetworks/Downloads/WebHelp3-1-1/Ping_the_Domain_Controller.htm
by doodoo3211 at Oct. 13, 2020, 1:47 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
pd3vlin
Highly Voted 4 years, 4 months ago
This one looks pretty easy. I'm assuming you may need to check ICMP on DC1's firewall to allow it to respond to ping requests. Just keep that in mind in case it doesn't respond to ping.
upvoted 13 times
ad2531
4 years, 3 months ago
https://www.howtogeek.com/howto/windows-vista/allow-pings-icmp-echo-request-through-your-windows-vista-firewall/
upvoted 3 times
...
...
JoenardAF
Highly Voted 4 years, 4 months ago
I think the first step would be: Go to DC1 Go to CMD type ipconfig check the ip address, remember it exit Now the next step would be: Go to Client3, Go to CMD type ipconfig enter ping the ip address of DC1 by using ping xxx.xxx.x.x exit Is this correct? I'm assuming it is. The answer provided didn't show you how you would know the ip address of DC1.
upvoted 13 times
ad2531
4 years, 4 months ago
ipconfig chief
upvoted 2 times
...
...
Saad91
Most Recent 2 years, 6 months ago
I think you should enable Echo Request - ICMPv4-In on DC first : Search for Windows Firewall , and click to open it. Click Advanced Settings on the left. From the left pane of the resulting window, click Inbound Rules. In the right pane, find the rules titled File and Printer Sharing (Echo Request - ICMPv4-In). Right-click each rule and choose Enable Rule.
upvoted 1 times
...
flabezerra
2 years, 6 months ago
I wouldn't waste my time on this question. So my fastest way would be ping -4 DC1 If I get the answer with the IP address in hand, then I ping back with that IPv4.
upvoted 1 times
...
JCkD4Ni3L
2 years, 8 months ago
1. Check on both DC1 and Client3 Firewall settings for Echo Request - ICMPv4-In. 2. On Client 3 ping DC1 to get it's IP. 3. Ping DC1's IP again from Client 3... Voila !
upvoted 1 times
...
Anon1212
3 years, 5 months ago
You don't necessarily need to ipconfig on both, just DC. Then go into Client 3>Open CMD>Ping DC1 IP, no?
upvoted 2 times
...
CARIOCA
3 years, 7 months ago
Will the other computers (Clent1, 2, DC1 and others) find themselves without passwords provided in the question or will they be informed in the question as only the administrator appears?
upvoted 2 times
...
ficijen895
3 years, 9 months ago
I needed to add an Inbound Rule in my Server VM allowing ICMPv4 Echo Requests
upvoted 3 times
PiPe
3 years, 3 months ago
I figured that would've been the answer to the question indeed
upvoted 2 times
...
...
tonytones
4 years, 1 month ago
systeminfo in powershell or command prompt from client3 will show logon severs by host name. get-dnsclientcache will show ip address of logon servers from host record clear-dnsclientcache will clear dns If pings still fail. Then I would check firewall rules on both machines
upvoted 1 times
...
geoffC
4 years, 1 month ago
On client3, open command prompt. ping -a DC1 will show the IP address of DC1, then ping that address.
upvoted 2 times
...
forummj
4 years, 2 months ago
There are also File & Printer Sharing (Echo Request - ICMPv4-In) too. The question doesn't ask you to ping the DC, it simply asks you to "ensure" that you can. The devices could be on different subnets and still ping each other if the route is known to the network. But if PING is blocked, as it is on many Servers, you may need to allow it through the firewall first.
upvoted 2 times
...
redadz
4 years, 4 months ago
use ping -4 <IP Address of DC1> to ensure your ping uses IPv4 instead of IPv6
upvoted 1 times
markservices
4 years ago
No, that is not true. When you use PING and enter a ipv4 address, it will never ping over ipv6. So -4 or -6 is not needed because we are pinging on 172.x.x.x. You could use -4 or -6 if you ping on hostname, but that's not the question here.
upvoted 1 times
...
...
Modernwasnas
4 years, 4 months ago
Is the right answer /ping DC1 ?
upvoted 2 times
ad2531
4 years, 3 months ago
without the forward slash. go to the DC1 type ipconfig in. get the ip. go to the client then type: ping 10.0.0.1 (whatever the ip of DC1 would be)
upvoted 1 times
...
...
Anthony_2770
4 years, 6 months ago
I would be running ipconfig on both machines first and then pinging the DC1
upvoted 8 times
AVP_Riga
4 years, 1 month ago
mb we should open ICMPv4 inbound rules for both of them?
upvoted 2 times
...
...
doodoo3211
4 years, 6 months ago
where was IPv4 picked up from? I thought I would need to do nslookup dc01 and then ping based on the results.
upvoted 3 times
doodoo3211
4 years, 6 months ago
or can I connect to dc01 as well to check its ipv4? I haven't done any of the labs yet
upvoted 2 times
...
...
