Exam MD-100 topic 4 question 4 discussion

Actual exam question from Microsoft's MD-100

Question #: 4
Topic #: 4

HOTSPOT -
You have a computer named Computer1 that runs Windows 10.

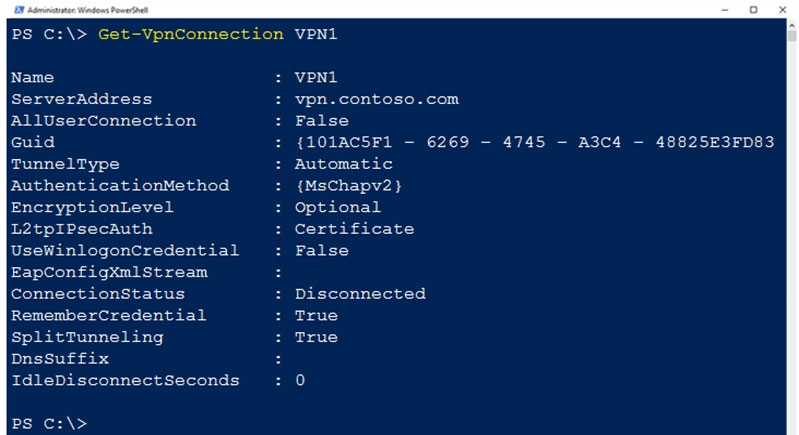

On Computer1, you create a VPN connection as shown in the following exhibit.

The corporate network contains a single IP subnet.

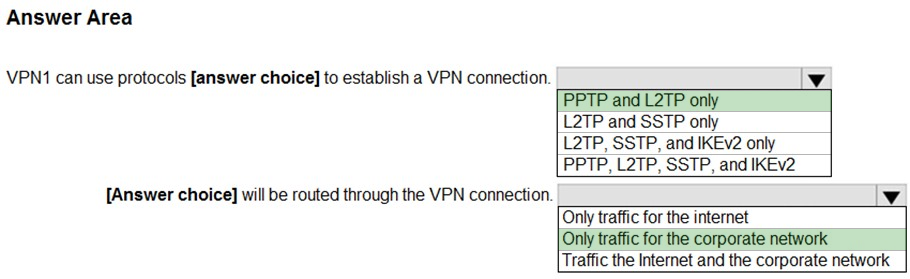

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.
Hot Area:

Show Suggested Answer

Suggested Answer:

by Dom20 at Nov. 6, 2020, 10:13 a.m.

Comments

Submit Cancel

Anthony_2770

Highly Voted 4 years, 7 months ago

VPN1 Protocols 1.Answer has to be revolve around what Tunnels support Mschapv2 authentication methods Tunnelling is automatic but the choice of using PAP, CHAP, or MSCHAPv2 applies only to PPTP, L2TP/IPsec, and SSTP tunnels; IKEv2 tunnels can only use EAP-MSCHAPv2 or certificates from my research. Microsoft PPTP VPN is using a weak algorithm (MS-CHAP v2) L2TP decides between PAP, CHAP, or MS-CHAPv2 authentication for users. SSTP accepts MSchapV2 on Microsoft win 10 vpns. Option 1 and 2 appear to be correct, therefore I would choose all 4 protocols but I cannot find anything to suggest that Microsoft vpns on win 10 machines can use Mschapv2 for an iEKv2 tunnel Accept option 4 (all protocols) 2.Only traffic for the corporate network Split-tunnelling is true. Corporate network goes through the vpn and internet access is routed from the local host.

upvoted 16 times

Anthony_2770

4 years, 7 months ago

Additionally on another sites sample questions : The TunnelType parameter is set to Automatic. The Automatic option means that the device will try each of the built-in tunneling protocols until one succeeds. It will attempt from most secure to least secure. I would accept all 4 protocols for part 1.

upvoted 4 times

Balena

4 years, 5 months ago

IKE-V2 requires EAP with MSCHAPv2. So only PPTP-L2TP/IPSEC-SSTP. From my lab: .... AuthenticationMethod : {EAP} .... +ref: https://docs.microsoft.com/en-us/previous-versions/windows/it-pro/windows-server-2008-R2-and-2008/ff687731(v=ws.10)

upvoted 2 times

Balena

4 years, 5 months ago

But there is only answer 1 and 2 without IKEv2. So I don't know here. You obviously cannot choose 3 or 4, and choosing 1 or 2 is wrong since all 3 protocols would work.

upvoted 1 times

...

tonytones

4 years, 3 months ago

See mllerena's comment

upvoted 1 times

...

hokieman91

Highly Voted 4 years, 8 months ago

Disagree with first answer since Tunnel Type is set to: Automatic – this should allow the host as being able to support all protocols for connection since the connection protocol was not predefined. Second answer is correct since the split tunnel: true means VPN traffic is split to the remote network (remote files, remote printers, RDP, etc.) while internet traffic will remain routed through the local host (opposite of full tunnel where all traffic tunnels through the remote connection, including internet)

upvoted 9 times

eufdf12342

4 years, 6 months ago

Opposite would be false since its boolean https://docs.microsoft.com/en-us/powershell/module/vpnclient/set-vpnconnection?view=win10-ps

upvoted 1 times

...

[Removed]

Most Recent 3 years ago

all are supported: https://docs.microsoft.com/en-us/windows/security/identity-protection/vpn/vpn-connection-type

upvoted 1 times

...

fxc119

3 years ago

The Automatic option means that the device will try each of the built-in tunneling protocols until one succeeds. It will attempt from most secure to least secure

upvoted 1 times

...

veteran_tech

3 years ago

I just tested this on Win10 v1809. Here are my results: All tunnel types (PPTP, L2TP with Machine Cert, L2TP with Pre-Shared Key, SSTP, IKEv2, and Auto) ALL support EAP. They also all support MS-CHAPv2, EXCEPT IKEv2 does NOT support it. Incidentally, you can only select MS-CHAPv2 if the user authentication type ("Type of sign-in info") is set to "User name and password". So IKEv2 is the only one that does NOT support MS-CHAPv2.

upvoted 1 times

veteran_tech

3 years ago

This question must be older because you CAN choose MsChapv2 for PPTP, both types of L2TP, and SSTP in Win10 v1809.

upvoted 1 times

...

CARIOCA

3 years, 10 months ago

What would be the final answer and justification?

upvoted 2 times

...

Perycles

4 years, 2 months ago

Q1 : All Protocol tested (from best to least secure : IKev2 - L2TP - SSPT -PPTP) because on Automatic (https://docs.microsoft.com/fr-fr/windows/security/identity-protection/vpn/vpn-connection-type) Q2 :Only intranet traffic

upvoted 4 times

...

mllerena

4 years, 5 months ago

SSTP-> SSL Certifcate IKE-V2 -> Certificate Box 1 PPTP, L2TP/IPsec

upvoted 8 times

...

TestTaker72

4 years, 5 months ago

I suspect they are going for all four since TunnelType it is set to Automatic (vs a specific tunnel type) https://docs.microsoft.com/en-us/powershell/module/vpnclient/add-vpnconnection?view=win10-ps

upvoted 2 times

...

Dom20

4 years, 8 months ago

can someone explain how to find the answer on this one?

upvoted 6 times

[Removed]

4 years, 8 months ago

I believe you look at the previous question. That question specifies the answer for this question on the first line. Bit of a shame that they don't mention this is a multipart question (unless I'm also missing something)

upvoted 3 times

51007

3 years, 3 months ago

Looks like different connections. Q4-3 says conn. Name is 'Contoso VPN' and SplitTunneling is False. This question (4-4) says Name 'VPN1' and SplitTunneling is True.

upvoted 1 times

...
