Exam AZ-104 topic 4 question 24 discussion

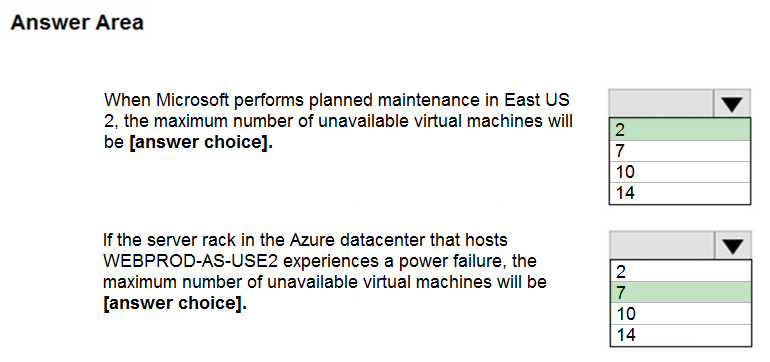

Correct Answer: Box 1: 2 There are 10 update domains. The 14 VMs are shared across the 10 update domains, so 4 update domains will have 2 VMs and 6 update domains will have 1 VM. Only one update domain is rebooted at a time. D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 vm1 vm2 vm3 vm4 vm5 vm6 vm7 vm8 vm9 vm10 vm11 vm12 vm13 vm14 Maximum Down = 2 Minimum Down = 1 Box 2: 7 There are 2 fault domains. The 14 VMs are shared across the 2 fault domains, so 7 VMs in each fault domain. A rack failure will affect one fault domain so 7 VMs will be offline. 14 VM in 2 Fault Domain Rack 1 Rack 2 vm1 vm8 vm2 vm9 vm3 vm10 vm4 vm11 vm5 vm12 vm6 vm13 vm7 vm14 Maximum Down = 7 Minimum Down = 7

Box 1: 2 - There are 10 update domains. The 14 VMs are shared across the 10 update domains so four update domains will have two VMs and six update domains will have one VM. Only one update domain is rebooted at a time. Therefore, a maximum of two VMs will be offline. Box 2: 7 - There are 2 fault domains. The 14 VMs are shared across the 2 fault domains, so 7 VMs in each fault domain. A rack failure will affect one fault domain so 7 VMs will be offline.

During planned maintenance or updates in Azure, only one Update Domain is updated at a time, regardless of how many Update Domains (UDs) you have, whether it's 5, 10, 100, or any number of UDs. for FD, divide the number of VM's by Fault domain.

Passed the exam today. This Q appeared. the exam had 53 Q's in total had 2 case study type Q's where you cannot come back for a review. around 30-35% of questions appeared as is from the free section of ET (First 28 pages). I do have a consolidated PDF of 288 Q's from these pages, send me a DM if you need it. ET is certainly helpful but I would not completely rely on it alone.

Given answer is correct

where is 14 VMs ?

This question was in my exam on 31/08/2023.

This question was in my exam on 31/08/2023.

Came on exam 29/08/23

i just gave up to understand this question/topic so I just hope this questions doesn't appear to me

1) "2" 2) "7" Explanation: We have 14 VM's and 10 Update Domains. this means that 6 VM's will each be in its isolated Update Domain and 8 VM's will share a Update Domain with another VM. UpdateDomain1: 2 VM's UpdateDomain2: 2 VM's UpdateDomain3: 2 VM's UpdateDomain4: 2 VM's UpdateDomain5: 1 VM's UpdateDomain6: 1 VM's UpdateDomain7: 1 VM's UpdateDomain8: 1 VM's UpdateDomain9: 1 VM's UpdateDomain10: 1 VM's This means that when a scheduled update occurs at maximum 2 VM's will be down. We also have 2 Fault Domains, which means that each Fault Domain will have 7 VM's inside. When a disaster occurs, at most 7 VM's will be impacted.

Box 1: 2 - There are 10 update domains. The 14 VMs are shared across the 10 update domains so four update domains will have two VMs and six update domains will have one VM. Only one update domain is rebooted at a time. Therefore, a maximum of two VMs will be offline. Box 2: 7 - There are 2 fault domains. The 14 VMs are shared across the 2 fault domains, so 7 VMs in each fault domain. A rack failure will affect one fault domain so 7 VMs will be offline.

I didn't have a clear idea about update domains until I found Saravana12g' Comment, thank you : UD1=VM1 and VM11 UD2=VM2 and VM12 UD3=VM3 and VM13 UD4=VM4 and VM14 UD5=VM5 UD6=VM6 UD7=VM7 UD8=VM8 UD9=VM9 UD10=VM10 4 UD's are having 2 VM's each 6 UD's are having 1 VM's each => Only one update domain is rebooted at a time. Therefore, a maximum of two VMs will be offline and a minimum of 1 VM will be offline.

Yep answer is correct and explanation is correct - 2 and 7

Box 1: 2 - There are 10 update domains. The 14 VMs are shared across the 10 update domains so four update domains will have two VMs and six update domains will have one VM. Only one update domain is rebooted at a time. Therefore, a maximum of two VMs will be offline. Box 2: 7 - There are 2 fault domains. The 14 VMs are shared across the 2 fault domains, so 7 VMs in each fault domain. A rack failure will affect one fault domain so 7 VMs will be offline.

Answer is correct 2 and 7 and explanation as per mlantonis (no need for me to reinvent the wheel)

how about the 14 VMs are shared across the 10 update domain as below, then max down is 3 UD1=VM1 and VM11 and VM12 UD2=VM2 and VM13 and VM14 UD3=VM3 UD4=VM4 UD5=VM5 UD6=VM6 UD7=VM7 UD8=VM8 UD9=VM9 UD10=VM10
