Exam AZ-104 topic 5 question 88 discussion

Actual exam question from Microsoft's AZ-104
Question #: 88
Topic #: 5
[All AZ-104 Questions]

HOTSPOT -
You have an Azure subscription that contains a virtual network named VNet1. VNet1 uses an IP address space of 10.0.0.0/16 and contains the VPN Gateway and subnets in the following table:

Subnet1 contains a virtual appliance named VM1 that operates as a router.
You create a routing table named RT1.
You need to route all inbound traffic from the VPN gateway to VNet1 through VM1.
How should you configure RT1? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

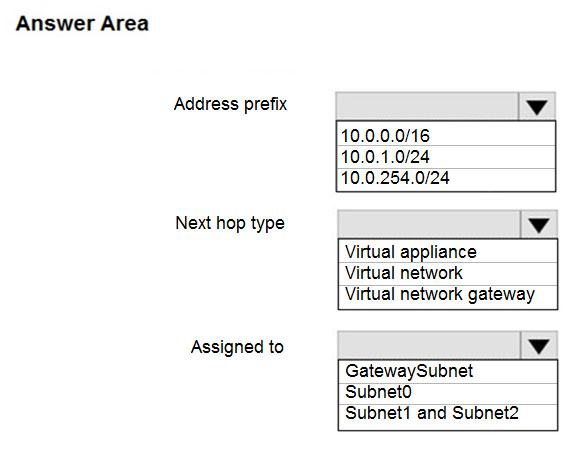

Hot Area:

Show Suggested Answer Hide Answer

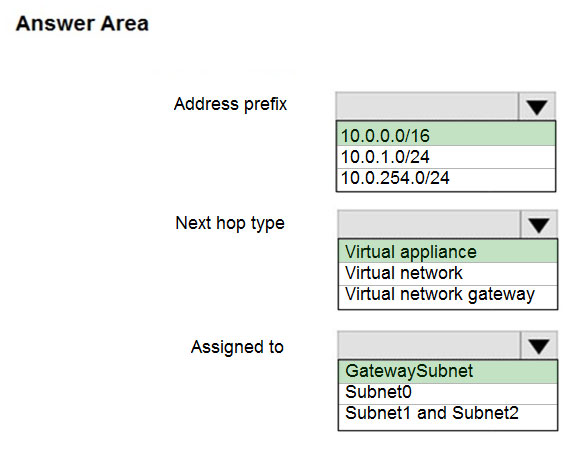

Suggested Answer:
by Hibs2016 at Dec. 6, 2020, 2:11 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
mlantonis
Highly Voted 3 years, 11 months ago
Correct Answer: Box 1: 10.0.0.0/16 Address prefix destination-> Vnet 1 (Address space of Vnet1) Box 2: Virtual appliance Next hop type VM1 ->Virtual Appliance. You can specify IP address of VM 1 when configuring next hop as Virtual appliance. Box 3: Gateway Subnet Assigned to This route is to be followed by Gateway Subnet for the incoming traffic. You can associate routing table to the Subnet from Rout Table -> subnet ->Associate.
upvoted 200 times
Holydud
2 years, 8 months ago
Was on exam 19 Aug 2022. Scored 870. Around 85% questions were also on ET. Answered: Box1: 10.0.0.0/16 Box2: Virtual appliance Box3: GatewaySubnet
upvoted 20 times
...
AzureG0d
2 years, 6 months ago
finally he's back lol
upvoted 58 times
...
...
Tom900
Highly Voted 4 years, 4 months ago
Answer is correct. See the explanation below from AZ-103 source. Address prefix- destination-> Vnet 1 (Address space of Vnet1) 2. Next Hop - VM1 ->Virtual Appliance (You can specify IP address of VM 1 when configuring next hop as virtual appliance) 3.Assignment - This route is to be followed by Gateway Subnet for the incoming traffic. You can associate routing table to the Subnet from Rout Table -> subnet ->Associate
upvoted 57 times
mikl
4 years, 2 months ago
Agree!
upvoted 2 times
...
...
[Removed]
Most Recent 6 months, 1 week ago
CORRECT
upvoted 3 times
...
tashakori
1 year, 1 month ago
Given answer is correct
upvoted 1 times
...
picho707
1 year, 11 months ago
Microsoft naming convention drives me nuts!!!.
upvoted 9 times
...
yaboo1617
2 years ago
ROUTE Address prefix = TO ROUTE Next Hop = THROUGH ROUTE Assignment = FROM
upvoted 30 times
[Removed]
8 months, 4 weeks ago
Thank you, this is all we need to understand
upvoted 2 times
...
...
zellck
2 years, 2 months ago
1. 10.0.0.0/16 2. Virtual appliance 3. GatewaySubnet https://learn.microsoft.com/en-us/azure/virtual-network/tutorial-create-route-table-portal
upvoted 5 times
...
klexams
2 years, 6 months ago
traffic to vnet1 addresses 10.0.0.0/16 VM1 as the next hop as router is a Virtual Appliance outside traffic comes through GatewaySubnet
upvoted 3 times
...
EmnCours
2 years, 8 months ago
Answer is correct.
upvoted 2 times
...
manalshowaei
2 years, 11 months ago
See the explanation below from AZ-103 source. Address prefix- destination-> Vnet 1 (Address space of Vnet1) 2. Next Hop - VM1 ->Virtual Appliance (You can specify IP address of VM 1 when configuring next hop as virtual appliance) 3.Assignment - This route is to be followed by Gateway Subnet for the incoming traffic. You can associate routing table to the Subnet from Rout Table -> subnet ->Associate
upvoted 1 times
...
babzbabz
2 years, 11 months ago
Came on exam today (24/05-2022)
upvoted 1 times
...
Dobby25
3 years, 1 month ago
Received this on my exam today 19/03/2022
upvoted 3 times
...
Tokawa
3 years, 7 months ago
Why is this not an IP address for Subnet1?
upvoted 1 times
...
AubinBakana
3 years, 7 months ago
Answer is correct: - Source: 10.0.254.0 - Next Hop: NVA - Assigned to 10.0.0.0/16. This covers 10.0.0.0/24, 10.0.1.0/24, 10.0.2.0/24
upvoted 2 times
...
AubinBakana
3 years, 8 months ago
I can picture this question coming in every single test. Answer is correct
upvoted 2 times
...
JimBobSquare101
3 years, 9 months ago
In 30 July 2021
upvoted 5 times
...
_UNA_
3 years, 9 months ago
You can watch this video for more clarity https://www.youtube.com/watch?v=sBII38Fngmk
upvoted 6 times
MimeTalk
3 years, 9 months ago
thanks for sharing
upvoted 2 times
...
umavaja
1 year, 2 months ago
thanks for the video link, it helps lot
upvoted 1 times
...
...
