Exam AZ-104 topic 5 question 6 discussion

Actual exam question from Microsoft's AZ-104

Question #: 6
Topic #: 5

HOTSPOT -
You have an Azure virtual network named VNet1 that connects to your on-premises network by using a site-to-site VPN. VNet1 contains one subnet named
Sunet1.
Subnet1 is associated to a network security group (NSG) named NSG1. Subnet1 contains a basic internal load balancer named ILB1. ILB1 has three Azure virtual machines in the backend pool.
You need to collect data about the IP addresses that connects to ILB1. You must be able to run interactive queries from the Azure portal against the collected data.
What should you do? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

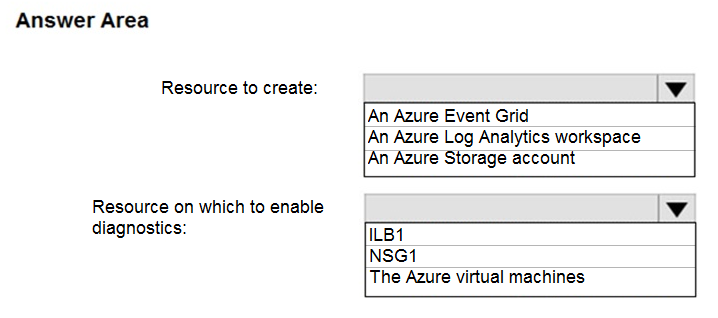

Hot Area:

Show Suggested Answer

Suggested Answer:

by Hibs2016 at Dec. 6, 2020, 4:09 p.m.

Comments

Submit Cancel

mlantonis

Highly Voted 4 years, 1 month ago

Correct Answer: Box 1: An Azure Log Analytics workspace In the Azure portal you can set up a Log Analytics workspace, which is a unique Log Analytics environment with its own data repository, data sources, and solutions. Box 2: NSG1 NSG flow logs allow viewing information about ingress and egress IP traffic through a Network security group. Through this, the IP addresses that connect to the ILB can be monitored when the diagnostics are enabled on a Network Security Group. We cannot enable diagnostics on an internal load balancer to check for the IP addresses. As for Internal LB, it is basic one. Basic can only connect to storage account. Also, Basic LB has only activity logs, which doesn't include the connectivity workflow. So, we need to use NSG to meet the mentioned requirements.

upvoted 257 times

awssecuritynewbie

2 years, 9 months ago

very good catch! Because yes you are right after looking at the link : https://learn.microsoft.com/en-gb/azure/load-balancer/skus#skus you cannot do diagnostics for the load balancer you know, which is crazy i would of picked that over the NSG. Box 2: NSG1

upvoted 10 times

marek_jazz

1 month ago

mlantonis doesn't need to catch anything...he knows everything

upvoted 1 times

...

mlantonis

4 years, 1 month ago

Reference: https://docs.microsoft.com/en-us/azure/log-analytics/log-analytics-quick-create-workspace https://docs.microsoft.com/en-us/azure/load-balancer/load-balancer-standard-diagnostics

upvoted 25 times

...

elrizos

2 years, 2 months ago

you r my hero

upvoted 3 times

...

Indy429

1 year, 6 months ago

I was about to say "why is the second one not NSG1?" Glad you confirmed NSG1 is the right answer for Q2.

upvoted 1 times

...

fedztedz

Highly Voted 4 years, 6 months ago

Answer is not correct. The correct answer is - Create a Log Analytics Workspace - NSG As for Internal LB, it is basic one. Basic can only connect to storage account. Also Basic LB has only activity logs which doesn't include the connectivity workflow. So, we need to use NSG to meet the mentioned requirements.

upvoted 96 times

Josh219

7 months ago

correct Box 1: An Azure Log Analytics workspace Box 2: NSG1

upvoted 1 times

...

Alvaroll

4 years, 5 months ago

I think the answer given is correct. - Azure Log Analytics workspace - ILB1 (Standard Load Balance) https://docs.microsoft.com/en-us/azure/load-balancer/load-balancer-monitor-log

upvoted 4 times

Alvaroll

4 years, 5 months ago

sorry, it's basic LB

upvoted 6 times

...

YooOY

3 years, 9 months ago

Basic LB no diagnositcs https://docs.microsoft.com/en-us/azure/load-balancer/skus

upvoted 3 times

...

s9p3r7

4 years ago

but you can't enable NSG flow logs with Log Analytics Workspace, you need a storage account. answer: storage acc and nsg ref: https://docs.microsoft.com/en-us/azure/network-watcher/network-watcher-nsg-flow-logging-portal#enable-nsg-flow-log

upvoted 4 times

s9p3r7

4 years ago

ignore my previous comment as Traffic Analytics can be integrated with Log Analytics Workspace,,

upvoted 6 times

...

khamrumunnu

Most Recent 1 month, 1 week ago

box1: LAW box1: ILB1

upvoted 1 times

...

[Removed]

9 months, 1 week ago

WRONG An Azure Log Analytics workspace NSG1

upvoted 3 times

...

tashakori

1 year, 3 months ago

Given answer is correct

upvoted 1 times

...

1828b9d

1 year, 3 months ago

This question was in exam 01/03/2024

upvoted 4 times

...

Josete1106

1 year, 11 months ago

B&B is correct!

upvoted 1 times

...

stonwall12

2 years ago

1. Azure Log Analytics 2. NSG1 Note: Internal Balancer is only BASIC

upvoted 1 times

...

shadad

2 years, 3 months ago

I took Exam of Azure- 104 at 27/2/2023 I score 920 points out of 1000 points. This was on it and my answer was: Box1: An Azure Log Analytics workspace Box2: Box 2: NSG1

upvoted 9 times

...

vbohr899

2 years, 3 months ago

Cleared Exam today 26 Feb, This question was there in exam.

upvoted 4 times

...

CyberKelev

2 years, 4 months ago

To collect data about the IP addresses that connect to ILB1 and run interactive queries from the Azure portal against the collected data, you should create an Azure Log Analytics workspace. You should enable diagnostic settings on ILB1. This will allow you to collect data about the IP addresses that connect to ILB1 and run interactive queries from the Azure portal against the collected data.

upvoted 1 times

...

Ashfaque_9x

2 years, 4 months ago

Passed today on 29Jan23 with a score of 970. This question was in the exam. Correct Answer: Box 1: An Azure Log Analytics workspace Box 2: NSG1

upvoted 5 times

...

djgodzilla

2 years, 5 months ago

I think it's good to pause and watch a video describing the available monitoring service for standard Load balancer (classic metrics view vs load balancer insights). It'll allow you to understand instead of just picking an answer . guess basic has no monitoring feature satisfying the question's requirement. https://www.youtube.com/watch?v=qfzOTNKYTgU&ab_channel=MicrosoftAzure

upvoted 2 times

...

Liriano

2 years, 7 months ago

In exam today, go with highly voted

upvoted 3 times

...

EmnCours

2 years, 10 months ago

An azure log analytics workspace NSG1

upvoted 1 times

...

Lazylinux

3 years ago

given answer not correct Box 1: An Azure Log Analytics workspace use Log Analytics workspace, which sets Log Analytics environment with its own data repository, data sources, and solutions. Box 2: NSG1 NSG flow logs, which provide you information about ingress and egress IP traffic through a Network Security Group associated to individual network interfaces, VMs, or subnets. By analyzing raw NSG flow logs, and inserting intelligence of security, topology, and geography, traffic analytics can provide you with insights into traffic flow in your environment. Traffic Analytics provides information such as most communicating hosts, most communicating application protocols, most conversing host pairs, allowed/blocked traffic, inbound/outbound traffic, open internet ports, most blocking rules, traffic distribution per Azure datacenter, virtual network, subnets, or, rogue networks.

upvoted 3 times

...
