Exam 70-761 topic 1 question 77 discussion

DRAG DROP -
Note: This question is part of a series of questions that use the same scenario. For your convenience, the scenario is repeated in each question. Each question presents a different goal and answer choices, but the text of the scenario is exactly the same in each question in this series.

Start of repeated scenario -

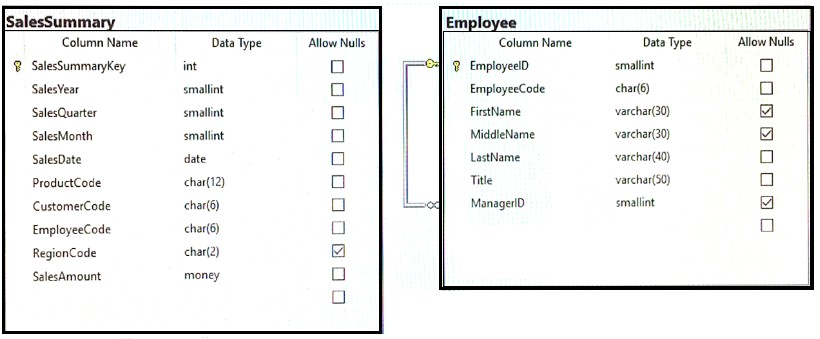

You have a database that contains the tables shown in the exhibit. (Click the Exhibit button.)

You review the Employee table and make the following observations:
✑ Every record has a value in the ManagerID except for the Chief Executive Officer (CEO).
✑ The FirstName and MiddleName columns contain null values for some records.
✑ The valid values for the Title column are Sales Representative manager, and CEO.
You review the SalesSummary table and make the following observations:
✑ The ProductCode column contains two parts: The first five digits represent a product code, and the last seven digits represent the unit price. The unit price uses the following pattern: ####.##.
✑ You observe that for many records, the unit price portion of the ProductCode column contains values.
✑ The RegionCode column contains NULL for some records.
✑ Sales data is only recorded for sales representatives.
You are developing a series of reports and procedures to support the business. Details for each report or procedure follow.

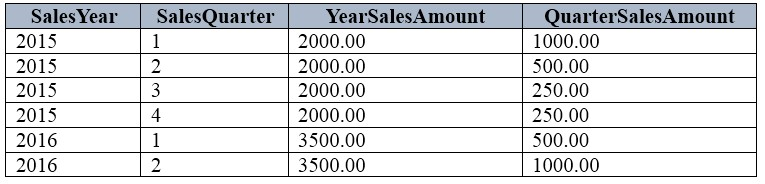

Sales Summary report: This report aggregates data by year and quarter. The report must resemble the following table.

Sales Manager report: This report lists each sales manager and the total sales amount for all employees that report to the sales manager.
Sales by Region report: This report lists the total sales amount by employee and by region. The report must include the following columns: EmployeeCode,
MiddleName, LastName, RegionCode, and SalesAmount. If MiddleName is NULL, FirstName must be displayed. If both FirstName and MiddleName have null values, the world Unknown must be displayed/ If RegionCode is NULL, the word Unknown must be displayed.
Report1: This report joins data from SalesSummary with the Employee table and other tables. You plan to create an object to support Report1. The object has the following requirements:
✑ be joinable with the SELECT statement that supplies data for the report
✑ can be used multiple times with the SELECT statement for the report
✑ be usable only with the SELECT statement for the report
not be saved as a permanent object

Report2: This report joins data from SalesSummary with the Employee table and other tables.
You plan to create an object to support Report1. The object has the following requirements:
✑ be joinable with the SELECT statement that supplies data for the report
✑ can be used multiple times for this report and other reports
✑ accept parameters
✑ be saved as a permanent object
Sales Hierarchy report: This report aggregates rows, creates subtotal rows, and super-aggregates rows over the SalesAmount column in a single result-set. The report uses SaleYear, SaleQuarter, and SaleMonth as a hierarchy. The result set must not contain a grand total or cross-tabulation aggregate rows.
Current Price Stored Procedure: This stored procedure must return the unit price for a product when a product code is supplied. The unit price must include a dollar sign at the beginning. In addition, the unit price must contain a comma every three digits to the left of the decimal point, and must display two digits to the left of the decimal point. The stored procedure must not throw errors, even if the product code contains invalid data.

End of Repeated Scenario -
You need to create the query for the Sales Managers report.

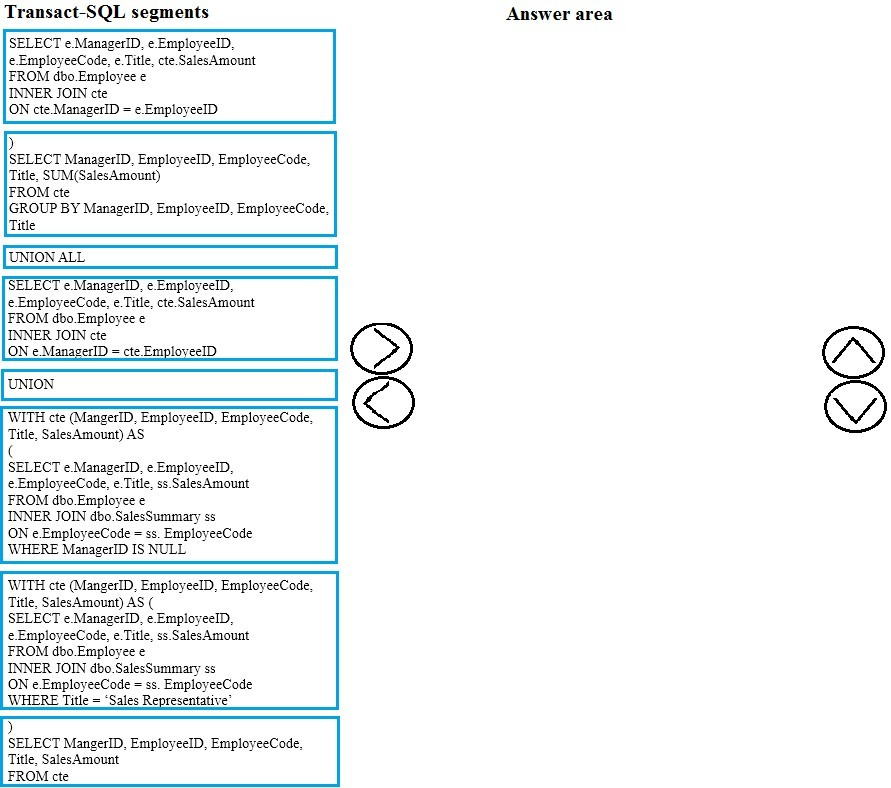

Which four Transact-SQL segments should you use to develop the solution? To answer, move the appropriate Transact-SQL segments from the list of Transact-
SQL segments to the answer area and arrange them in the correct order.
Select and Place:

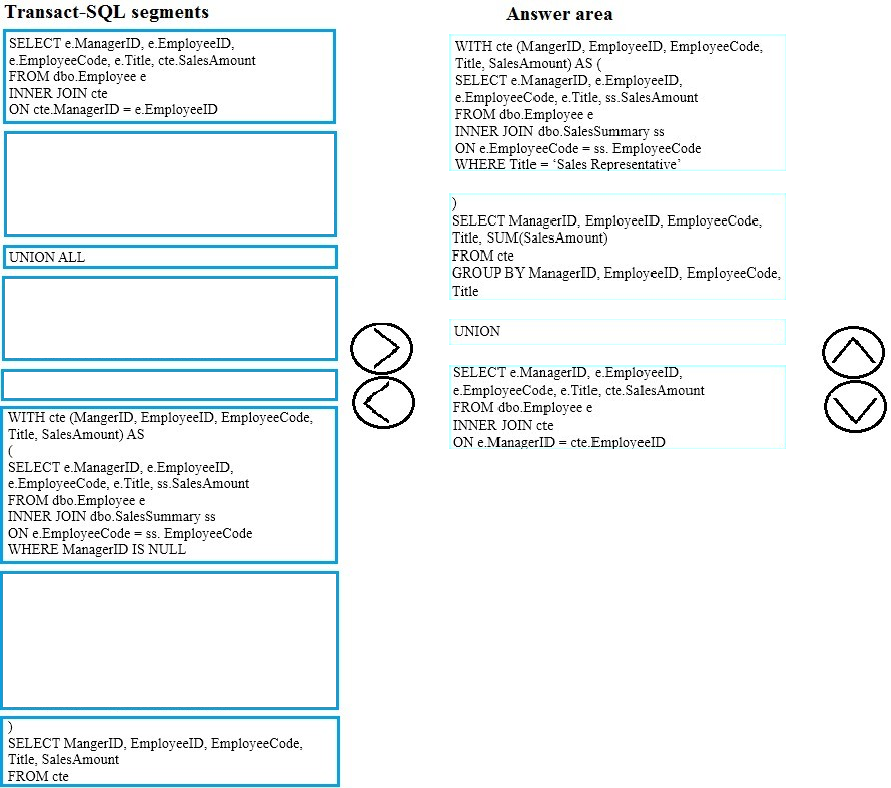

Suggested Answer:
From scenario: Sales Manager report: This report lists each sales manager and the total sales amount for all employees that report to the sales manager.
Box 1:..WHERE Title='Sales representative'
The valid values for the Title column are Sales Representative manager, and CEO.
First we define the CTE expression.
Note: A common table expression (CTE) can be thought of as a temporary result set that is defined within the execution scope of a single SELECT, INSERT,
UPDATE, DELETE, or CREATE VIEW statement. A CTE is similar to a derived table in that it is not stored as an object and lasts only for the duration of the query.
Unlike a derived table, a CTE can be self-referencing and can be referenced multiple times in the same query.
Box 2:
Use the CTE expression one time.

Box 3: UNION -
Box 4:
Use the CTE expression a second time.
References:
https://technet.microsoft.com/en-us/library/ms190766(v=sql.105).aspx
