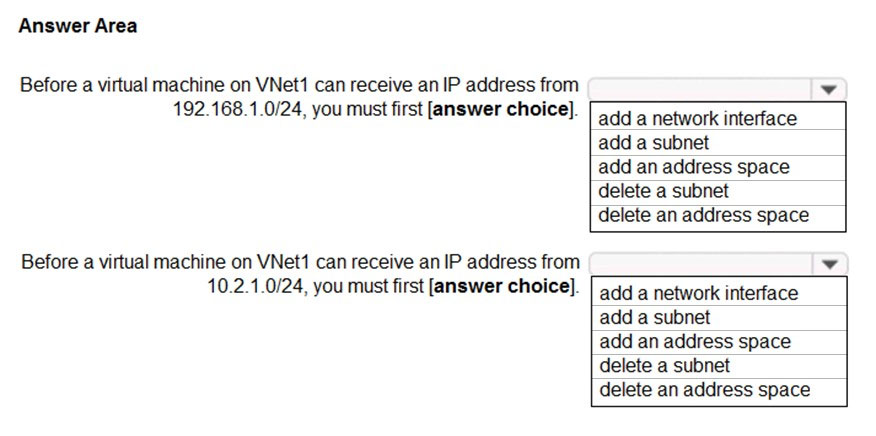

Exam AZ-303 topic 5 question 31 discussion

Answer - add an address space - add a subnet

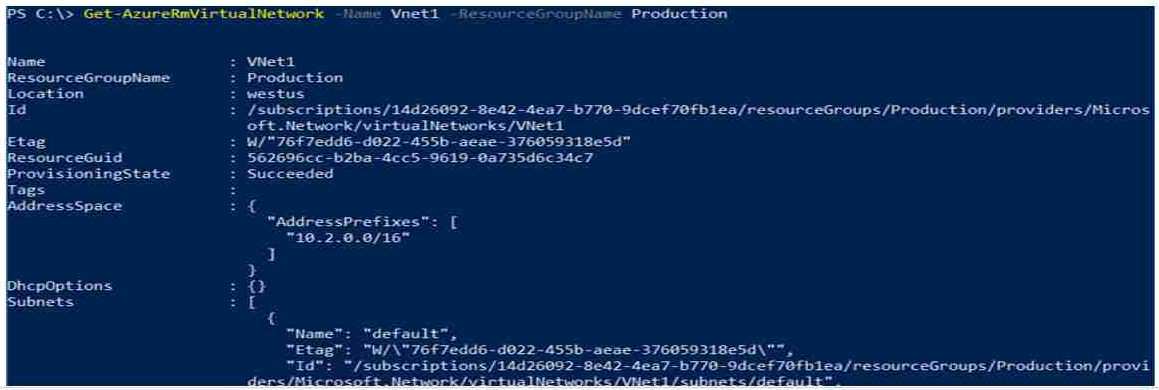

correct answer is add an address space and add a subnet biiger image is avaialble at https://vceguide.com/hotspot-734/ so as per bigger screenshot VNET address space CIDR is 10.2.0.0/16 and defaut subnet CIDR is 10.2.0.0/24 , VM in default subnet won't get the requested IP ,Need to create a subnet with CIDR: 10.2.1.0/24 and create VM in that subnet.Without adding subnet NIC addition won't be possible so definitely answer will be add a subnet.

In today's exam. Score 900+ Correct answer is Add address space Add s subnet

Box 1: add an address space - Your IaaS virtual machines (VMs) and PaaS role instances in a virtual network automatically receive a private IP address from a range that you specify, based on the address space of the subnet they are connected to. We need to add the 192.168.1.0/24 address space. Box 2: add a subnet References: https://docs.microsoft.com/en-us/office365/enterprise/designing-networking-for-microsoft-azure-iaas https://docs.microsoft.com/en-us/azure/virtual-network/virtual-networks-static-private-ip-arm-pportal

- add an address space - add a subnet

Image is incomplete so credit to SnakePlissken for the link (https://www.examtopics.com/assets/media/exam-media/03762/0026400001.jpg) Delete subnet and address space don't make sense so these can be eliminated https://docs.microsoft.com/en-us/azure/virtual-network/virtual-network-network-interface-vm When you create a virtual machine through the portal, the portal creates a network interface with default settings and attaches the network interface to the VM for you adding network interface is out For 192.168.1.0/24, it's a completely different space from VNet1 so add an address space is right 10.2.10/24 is within the space of VNet1 so add a subnet is correct

please. if you agree with the answer given in a comment, just "like" the answer. Do not REPEAT THE SAME RESPONSE FROM THE PREVIOUS POST.

ans is correct

1. Add an address space 2. Add a subnet Complete picture from AZ-104: https://www.examtopics.com/assets/media/exam-media/03762/0026400001.jpg

Answer Add an address space Add a subnet

INCORRECT 1. Add an Address Space 2. Add Subnet

I believe the 1st answer should be "add a network interface" as the question says before the VM gets 192.168. 1.X. which is the default DHCP IP Address range.

second question presupposes you complete operation for first question

I wonder why we dont have these answers updated. add a network interface to what to solve q2? that's funny...

Answer - add an address space - add a subnet If the default subnet exists, normally azure by default will create (in this case) the suggested 10.2.0.0/24,

The screenshot is showing that there is a default subnet associated with VNet1. When you create a VNet in Azure and a default subnet is assigned that default subnet will occupy the entire address space. Therefore the answer should be Add a Network Interface for the 2nd answer and NOT add a subnet. Azure portal If you let Azure create a VNet when you create a VM, the name is a combination of the resource group name that contains the VNet and -vnet. The address space is 10.0.0.0/24, the required subnet name is default, and the subnet address range is 10.0.0.0/24. Source: https://docs.microsoft.com/en-us/azure/virtual-machines/network-overview#:~:text=If%20you%20let%20Azure%20create,0.0%2F24.

- Add an address space - add a subnet
