Exam AZ-303 topic 5 question 37 discussion

Actual exam question from Microsoft's AZ-303

Question #: 37
Topic #: 5

SIMULATION -

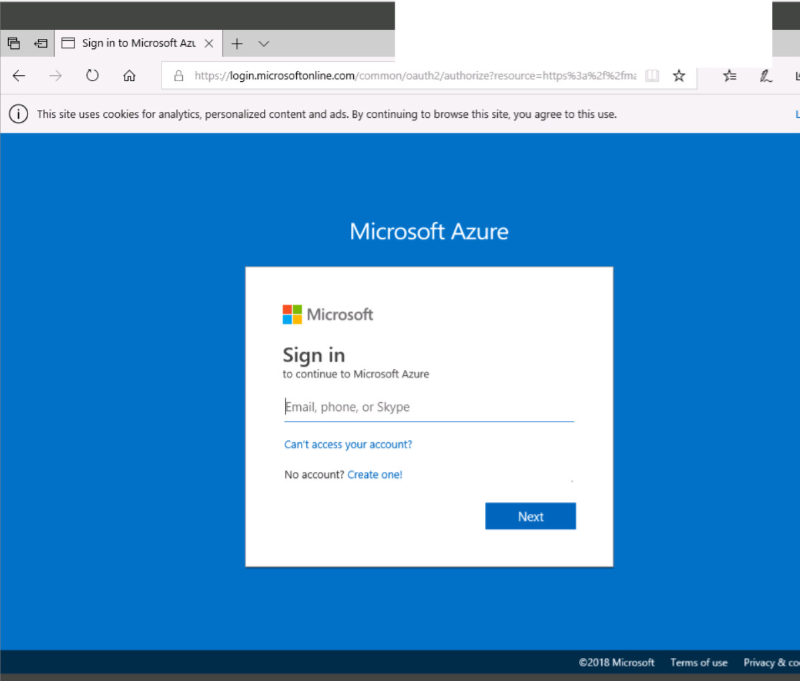

Click to expand each objective. To connect to the Azure portal, type https://portal.azure.com in the browser address bar.

When you are finished performing all the tasks, click the `˜Next' button.
Note that you cannot return to the lab once you click the `˜Next' button. Scoring occur in the background while you complete the rest of the exam.

Overview -
The following section of the exam is a lab. In this section, you will perform a set of tasks in a live environment. While most functionality will be available to you as it would be in a live environment, some functionality (e.g., copy and paste, ability to navigate to external websites) will not be possible by design.
Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn't matter how you accomplish the task, if you successfully perform it, you will earn credit for that task.
Labs are not timed separately, and this exam may have more than one lab that you must complete. You can use as much time as you would like to complete each lab. But, you should manage your time appropriately to ensure that you are able to complete the lab(s) and all other sections of the exam in the time provided.
Please note that once you submit your work by clicking the Next button within a lab, you will NOT be able to return to the lab.

To start the lab -
You may start the lab by clicking the Next button.
You plan to connect several virtual machines to the VNET01-USEA2 virtual network.
In the corpdatalod7523690 resource group, you need to create a virtual machine that uses the Standard_B2ms size named Web01 that runs Windows Server
2016. Web01 must be added to an availability set.
What should you do from the Azure portal?

Show Suggested Answer

Suggested Answer: See explanation below.

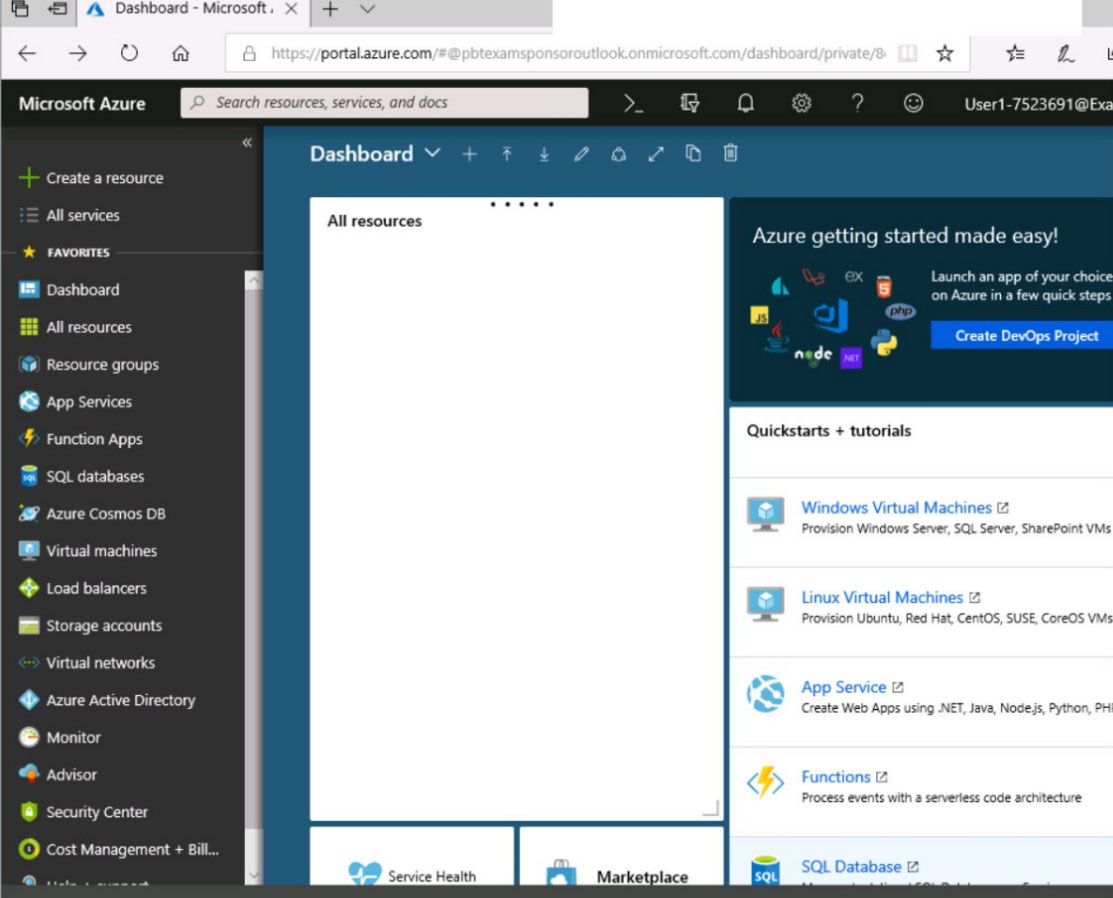

Step 1: Choose Create a resource in the upper left-hand corner of the Azure portal.
Step 2: In the Basics tab, under Project details, make sure the correct subscription is selected and then choose corpdatalod7523690 resource group

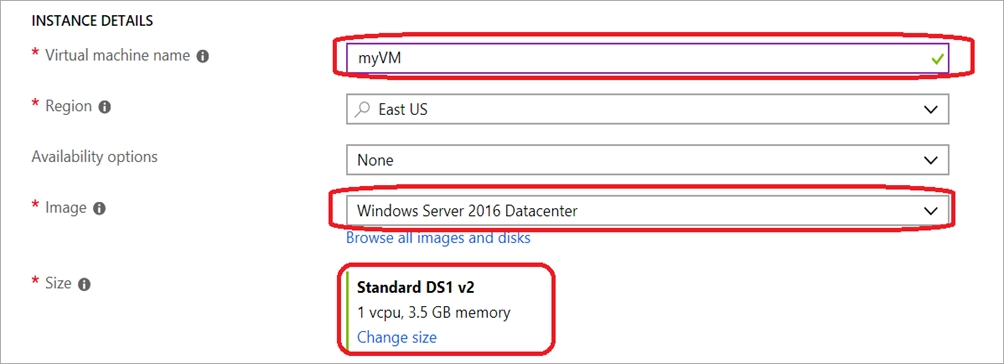

Step 3: Under Instance details type/select:

Virtual machine name: Web01 -
Image: Windows Server 2016
Size: Standard_B2ms size
Leave the other defaults.

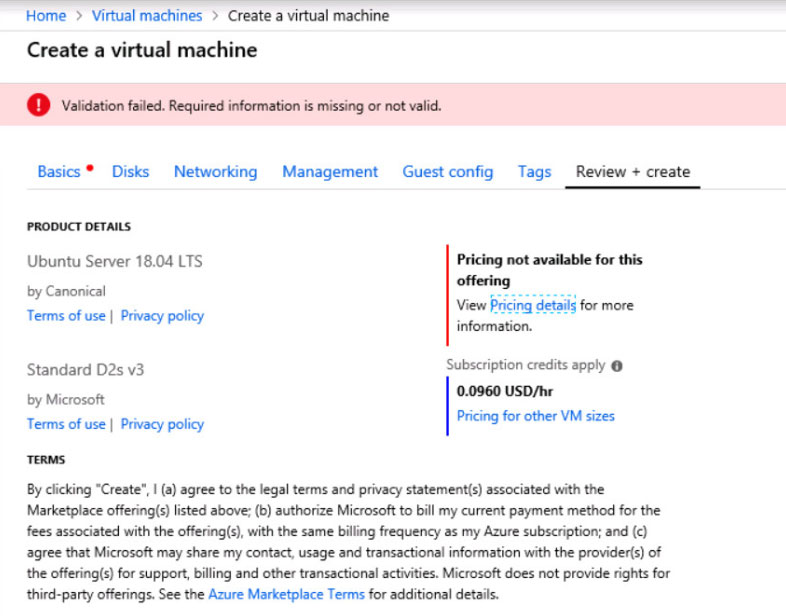

Step 4: Finish the Wizard

by MichaelCWWong at Jan. 3, 2021, 2:39 a.m.

Comments

Submit Cancel

MichaelCWWong

Highly Voted 4 years, 5 months ago

The answer forgets to state Select "Availability Set" in "Availability Option"

upvoted 22 times

RichardSt

4 years, 5 months ago

Create a VM Enter "Web01" as name For "Availabilty Options" select "Availability Set" If no availability set exists (which I assume) hit "Create New" and type a name Select "Windows Server 2016 Datacenter" for "Image" Select "Standard_B2ms" for "Size" (you have to search for it as it is not displayed) Type in an arbitrary username/password combination for "Administrator Account"

upvoted 34 times

sidk05

3 years, 2 months ago

why size specific - Standard_B2ms. We can select any size. Also, I feel RichardSt you forgot to mention the step to select the virtual network specified.

upvoted 1 times

...

PapaLion

Highly Voted 4 years, 4 months ago

We are all able to create a VM by following the indicated requirements, but please keep an eye on the requirement about the VNET where is located? I need to put the VM in the same REGION of the VNET.

upvoted 6 times

...
