Exam AZ-303 topic 6 question 6 discussion

Actual exam question from Microsoft's AZ-303

Question #: 6
Topic #: 6

SIMULATION -

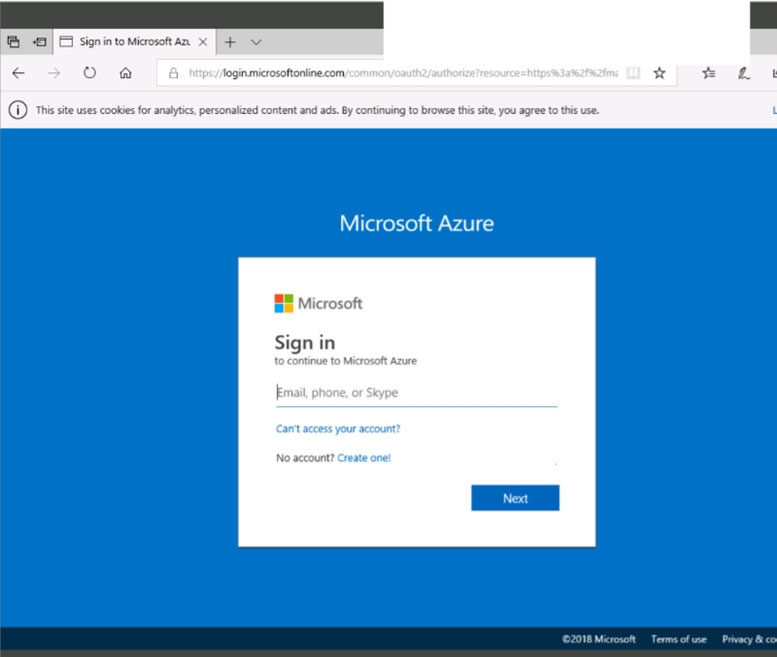

Click to expand each objective. To connect to the Azure portal, type https://portal.azure.com in the browser address bar.

When you are finished performing all the tasks, click the `˜Next' button.
Note that you cannot return to the lab once you click the `˜Next' button. Scoring occur in the background while you complete the rest of the exam.

Overview -
The following section of the exam is a lab. In this section, you will perform a set of tasks in a live environment. While most functionality will be available to you as it would be in a live environment, some functionality (e.g., copy and paste, ability to navigate to external websites) will not be possible by design.
Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn't matter how you accomplish the task, if you successfully perform it, you will earn credit for that task.
Labs are not timed separately, and this exam may have more than one lab that you must complete. You can use as much time as you would like to complete each lab. But, you should manage your time appropriately to ensure that you are able to complete the lab(s) and all other sections of the exam in the time provided.
Please note that once you submit your work by clicking the Next button within a lab, you will NOT be able to return to the lab.

To start the lab -
You may start the lab by clicking the Next button.
You plan to create several virtual machines in different availability zones, and then to configure the virtual machines to load balanced connections from the
Internet.
You need to create an IP address resource named ip1006 to support the planned load balancing solution.
The solution must minimize costs.
What should you do from the Azure portal?

Show Suggested Answer

Suggested Answer: See solution below.
We should create a public IP address.

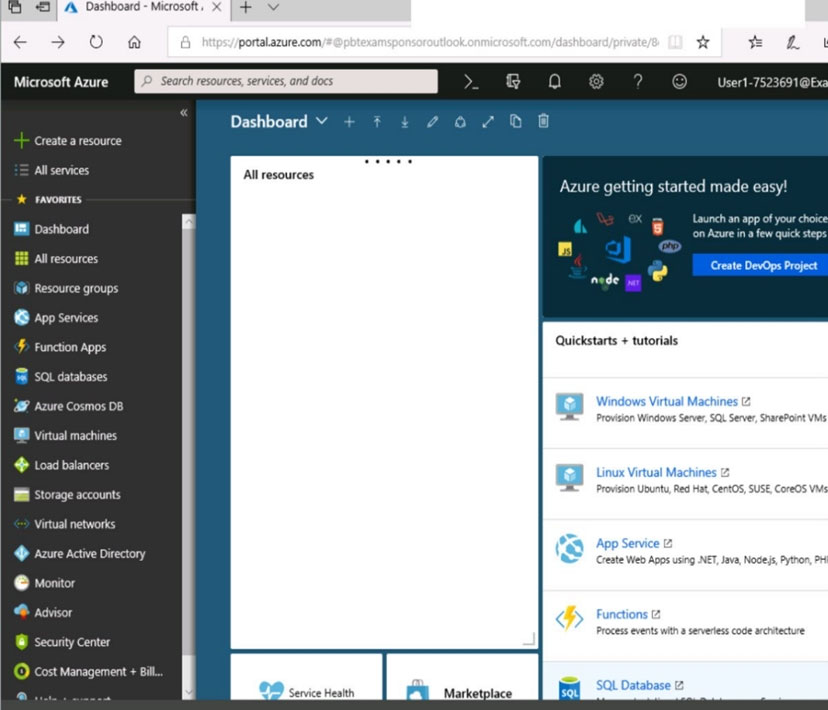

Step 1: At the top, left corner of the portal, select + Create a resource.
Step 2: Enter public ip address in the Search the Marketplace box. When Public IP address appears in the search results, select it.
Step 3: Under Public IP address, select Create.
Step 4: Enter, or select values for the following settings, under Create public IP address, then select Create:
Name: ip1006
SKU: Basic SKU
IP Version: IPv6
IP address assignment: Dynamic
Subscription: Select appropriate
Resource group: Select appropriate
References:
https://docs.microsoft.com/en-us/azure/virtual-network/virtual-network-public-ip-address

by widurr at Jan. 4, 2021, 10:53 p.m.

Comments

Submit Cancel

widurr

Highly Voted 4 years, 5 months ago

Standard SKU, since it has to go in pair with Standard SKU Load Balancer

upvoted 17 times

MichaelCWWong

4 years, 5 months ago

Agreed, only Standard SKU of IP address supports availability zone but not Basic SKU.

upvoted 8 times

...

Celtic_Bear

Highly Voted 4 years, 3 months ago

why is it IPv6?

upvoted 5 times

El_Hechizo

3 years, 11 months ago

Load balancer supports IPv6 addresses for your frontend. Learn more about load Balancer and IPv6. https://docs.microsoft.com/en-us/azure/load-balancer/manage

upvoted 3 times

DeepHouse

3 years, 3 months ago

Yeah, fine. But the question didn't ask for IPv6

upvoted 1 times

...

junear

Most Recent 4 years, 2 months ago

Should be Static IP + Standard SKU https://docs.microsoft.com/en-us/azure/load-balancer/quickstart-load-balancer-standard-public-portal?tabs=option-1-create-load-balancer-standard

upvoted 5 times

altafpatel1984

3 years, 4 months ago

For Standard SKU, it will be by default Static and cannot be changed.

upvoted 1 times

...

prashantjoge

4 years, 4 months ago

it doesnt ask the LB to be zonal. Just the VMs are zonal. Plus they are asking for a cost effective solution. basic sku should be fine

upvoted 2 times

s1fd01

4 years, 3 months ago

Yes but that defeats the purpose of having VMs in zones in first place, see diagram https://docs.microsoft.com/en-us/azure/load-balancer/load-balancer-standard-availability-zones#zone-redundant

upvoted 3 times

...

Stephan99

4 years, 4 months ago

Microsoft recommends Static IP addresses for Azure Load Balancer. https://docs.microsoft.com/en-us/azure/load-balancer/manage

upvoted 3 times

...

Stephan99

4 years, 4 months ago

Standard IPs can be assigned to network interfaces, Standard public load balancers, application gateways, or VPN gateways. https://docs.microsoft.com/en-us/learn/modules/design-ip-addressing-for-azure/3-azure-public-private-ip-addressing

upvoted 1 times

...
