Exam AZ-303 topic 5 question 52 discussion

Actual exam question from Microsoft's AZ-303

Question #: 52
Topic #: 5

HOTSPOT -
Your company has a virtualization environment that contains the virtualization hosts shown in the following table.

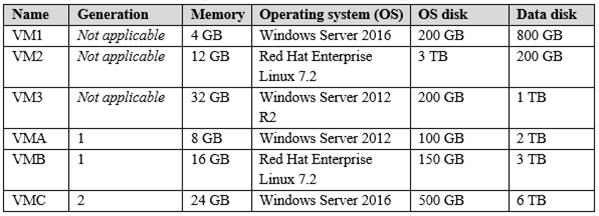

The virtual machines are configured as shown in the following table.

All the virtual machines use basic disks. VM1 is protected by using BitLocker Drive Encryption (BitLocker).
You plan to migrate the virtual machines to Azure by using Azure Site Recovery.
You need to identify which virtual machines can be migrated.

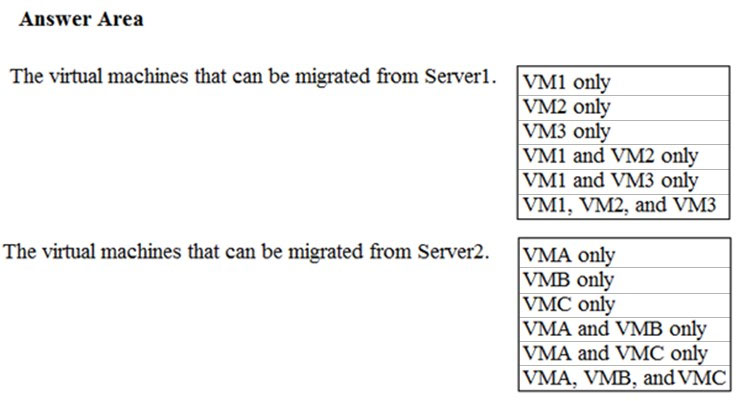

Which virtual machines should you identify for each server? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

Show Suggested Answer

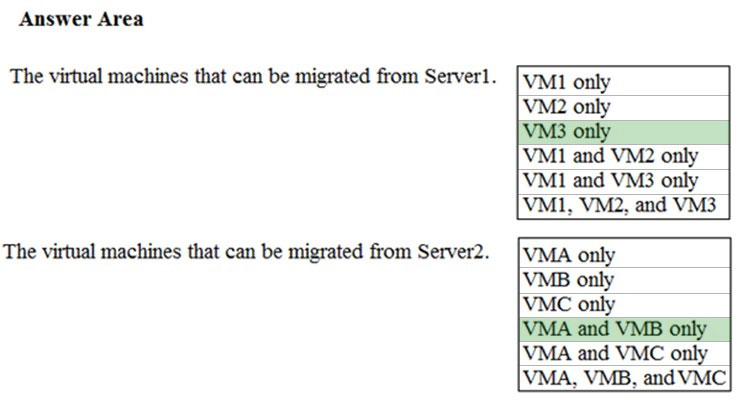

Suggested Answer:

Incorrect Answers:
VM1 cannot be migrates as it has BitLocker enabled.
VM2 cannot be migrates as the OS disk on VM2 is larger than 2TB.
VMC cannot be migrates as the Data disk on VMC is larger than 4TB.
References:
https://docs.microsoft.com/en-us/azure/site-recovery/hyper-v-azure-support-matrix#azure-vm-requirements

by yassali at Jan. 5, 2021, 6:33 a.m.

Comments

Submit Cancel

yassali

Highly Voted 4 years, 5 months ago

correct based on below ,also VMC is out coz of either data disk size larger than 4TB or OS disk size larger than 300GB for generation 2 https://docs.microsoft.com/en-us/azure/site-recovery/hyper-v-azure-support-matrix#azure-vm-requirements

upvoted 19 times

Amit3

4 years, 5 months ago

What about VM1

upvoted 2 times

tj1296

4 years, 4 months ago

VM1 is out because it is using BitLocker Drive Encryption

upvoted 4 times

...

pramod

4 years, 4 months ago

Bitlocker , not supported

upvoted 4 times

...

Sizar

Highly Voted 3 years, 11 months ago

VMware - OS disk size: o Up to 2,048 GB for Generation 1 machines. (BIOS boot type) o Up to 4,095 GB for Generation 2 machines. (EFI boot type) - Data disk size: o Up to 32,767 GB when replicating to managed disk (9.41 version onwards) o Up to 4,095 GB when replicating to storage account Hyper V limits: - OS disk size: o Up to 2,048 GB for generation 1 VMs. o Up to 300 GB for generation 2 VMs - Data disk size: o Up to 4,095 GB Minimum disk size requirement - at least 1024 MB Linux Generation 2 VMs aren't supported

upvoted 8 times

...

Stato71

Most Recent 3 years, 2 months ago

The data disk on VNC meet the migration requirements for hyperv upto 32 TB. So answer 2 should be all 3 vms

upvoted 2 times

[Removed]

3 years, 2 months ago

https://docs.microsoft.com/en-us/azure/migrate/migrate-support-matrix-hyper-v-migration https://docs.microsoft.com/en-us/azure/migrate/migrate-support-matrix-vmware-migration

upvoted 1 times

...
