You plan to connect a virtual network named VNET1017 to your on-premises network by using both an Azure ExpressRoute and a site-to-site VPN connection.
You need to prepare the Azure environment for the planned deployment. The solution must maximize the IP address space available to Azure virtual machines.
What should you do from the Azure portal before you create the ExpressRoute and the VPN gateway?

Show Suggested Answer

Suggested Answer: See explanation below.
We need to create a Gateway subnet
Step 1:

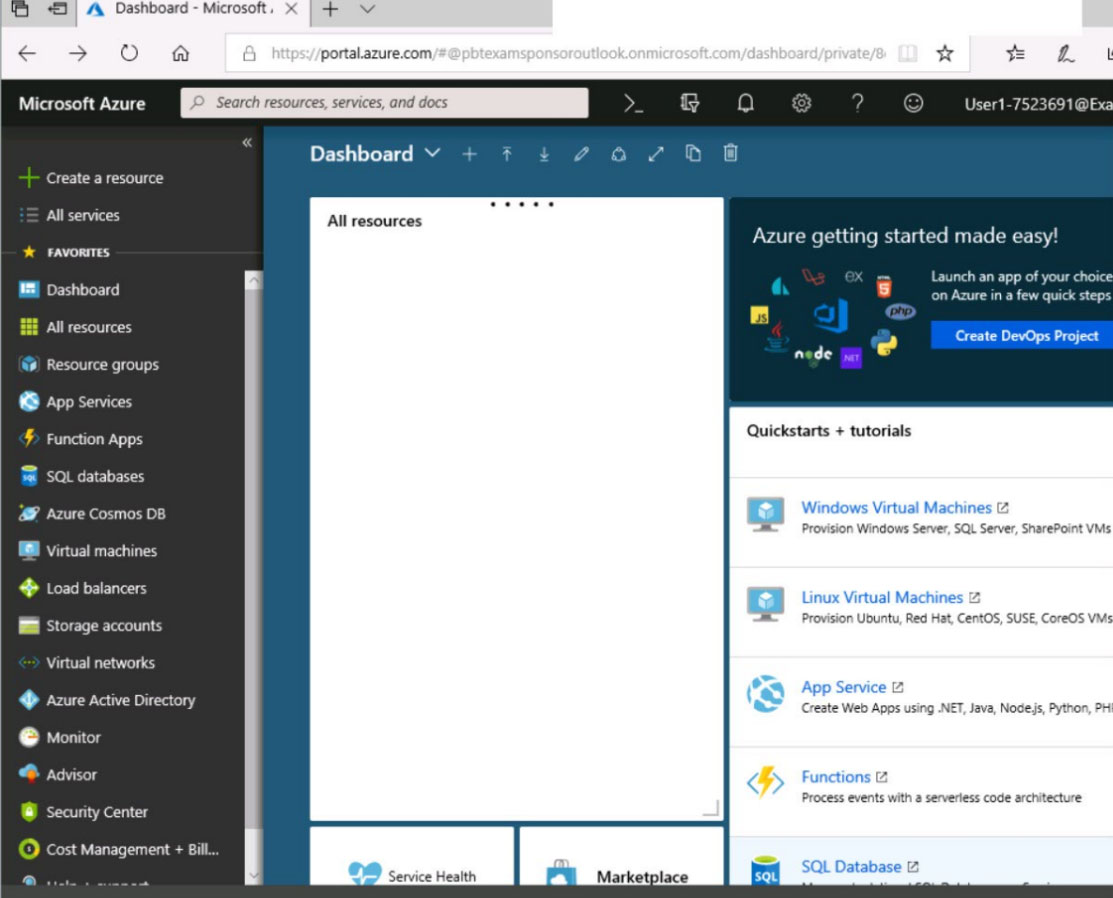

Go to More Services > Virtual Networks
Step 2:
Then click on the VNET1017, and click on subnets. Then click on gateway subnet.
Step 3:

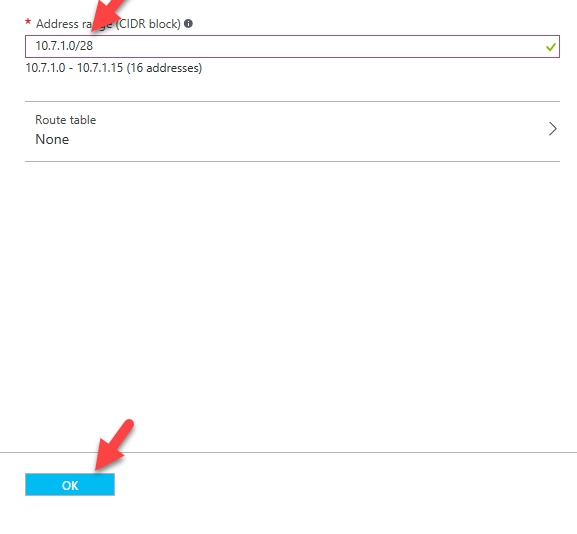

In the next window define the subnet for the gateway and click OK

It is recommended to use /28 or /27 for gateway subnet.
As we want to maximize the IP address space we should use /27.
References:
https://blogs.technet.microsoft.com/canitpro/2017/06/28/step-by-step-configuring-a-site-to-site-vpn-gateway-between-azure-and-on-premise/

by Stevezzc at Jan. 7, 2021, 1:50 p.m.

Comments

Submit Cancel

ursnanda

Highly Voted 4 years, 4 months ago

/27 is correct

upvoted 9 times

Arush

4 years ago

I believe /28 is correct. https://docs.microsoft.com/en-us/azure/vpn-gateway/tutorial-site-to-site-portal /28 leaves more IP address spaces for VMs as required here.

upvoted 1 times

pentium75

3 years, 10 months ago

/28 is enough when you have one gateway. Here you have two (VPN and ExpressRoute), thus must be /27 per https://docs.microsoft.com/en-us/azure/expressroute/expressroute-howto-coexist-resource-manager#add

upvoted 3 times

...

leo_az300

Most Recent 3 years, 10 months ago

it should be /27. question said for both expressroute and VPN. which means 2 gateways. \28 only allows one in gateway subnet

upvoted 1 times

...

nfett

3 years, 11 months ago

https://docs.microsoft.com/en-us/azure/vpn-gateway/tutorial-site-to-site-portal When you create the gateway subnet, you specify the number of IP addresses that the subnet contains. The number of IP addresses needed depends on the VPN gateway configuration that you want to create. Some configurations require more IP addresses than others. We recommend that you create a gateway subnet that uses a /27 or /28. /27/ or /28 is right.

upvoted 1 times

...

guptavishal7982

4 years ago

The Gateway Subnet must be /27. https://docs.microsoft.com/en-us/azure/expressroute/expressroute-howto-coexist-resource-manager#add

upvoted 2 times

...

GabrieleSolieri

4 years, 2 months ago

/28 is correct

upvoted 2 times

pentium75

3 years, 10 months ago

Not if you have both VPN and ExpressRoute. "If you have a virtual network that has only one virtual network gateway (let's say, Site-to-Site VPN gateway) and you want to add another gateway of a different type (let's say, ExpressRoute gateway), check the gateway subnet size. If the gateway subnet is /27 or larger, you can skip the steps below and follow the steps in the previous section to add either a Site-to-Site VPN gateway or an ExpressRoute gateway. If the gateway subnet is /28 or /29, you have to first delete the virtual network gateway and increase the gateway subnet size."

upvoted 2 times

...

paulb2b

4 years, 4 months ago

/27 is correct subnet range or larger

upvoted 2 times

prashantjoge

4 years, 3 months ago

it says 27 or larger. I think you can do 28 so there is more space for the VM's

upvoted 2 times

...

CeliaZhou

4 years, 4 months ago

Agree /27, as posted in the article: https://docs.microsoft.com/en-us/azure/expressroute/expressroute-howto-coexist-resource-manager#new "The Gateway Subnet must be /27 or a shorter prefix (such as /26 or /25)."

upvoted 4 times

...

Stevezzc

4 years, 5 months ago

/29 is support. https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-about-vpn-gateway-settings#gwsub

upvoted 1 times

nexnexnex

4 years, 4 months ago

Mentioned link states, that /29 is a minimum for VPN-only and that it's not enough for VPN+ExpressRoute. /29 is too small /28 - there is not enough info in docs (except that it was previous minimum for a VPN) /27 is a recommended minimum

upvoted 8 times

...
