Exam AZ-303 topic 5 question 55 discussion

Actual exam question from Microsoft's AZ-303

Question #: 55
Topic #: 5

HOTSPOT -
You have an Azure subscription named Subscription1.
You have a virtualization environment that contains the virtualization servers in the following table.

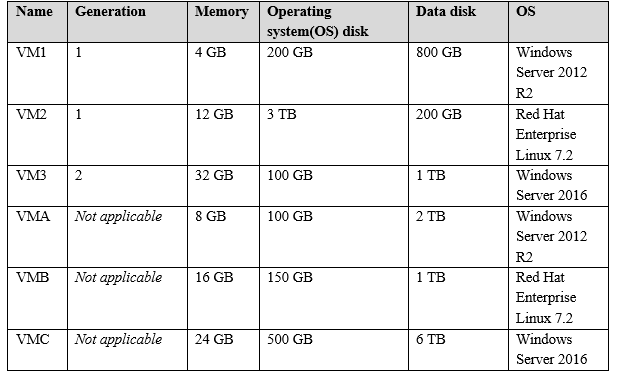

The virtual machines are configured as shown in the following table.

All the virtual machines use basic disks. VM1 is protected by using BitLocker Drive Encryption (BitLocker).
You plan to use Azure Site Recovery to migrate the virtual machines to Azure.
Which virtual machines can you migrate? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

Show Suggested Answer

Suggested Answer:

Incorrect Answers:
VM1 cannot be migrates as it has BitLocker enabled.
VM2 cannot be migrates as the OS disk on VM2 is larger than 2TB.
VMC cannot be migrates as the Data disk on VMC is larger than 4TB.
References:
https://docs.microsoft.com/en-us/azure/site-recovery/hyper-v-azure-support-matrix#azure-vm-requirements

by Kraviecc at Jan. 16, 2021, 9:45 a.m.

Comments

Submit Cancel

acasella

Highly Voted 4 years, 2 months ago

Be careful! it's not the same as question 23. In the previous ones, server 1 is vm-ware and server 2 is hyper-V. In this case is the opposite. vm-ware support up to 32 TB for data disks: https://docs.microsoft.com/en-us/azure/migrate/migrate-support-matrix-hyper-v-migration So correct answer is VM-A,VM-B,VM-C

upvoted 28 times

azprepd

4 years, 1 month ago

Azure Migrate and Azure Site Recovery are two different migration options: https://docs.microsoft.com/en-us/azure/site-recovery/migrate-overview. For example, for Hyper-V: https://docs.microsoft.com/en-us/azure/migrate/migrate-support-matrix-hyper-v-migration vs https://docs.microsoft.com/en-us/azure/site-recovery/hyper-v-azure-support-matrix#azure-vm-requirements. The migration option doesn't have a difference between 1st and 2nd generation 300GB vs 2TB for Azure system disk and there is the 8Tb limit for the Hyper-V VM data disk The VMWare data disk limitation is relevant to the migration scenario while the exam question is about using Azure Site Recovery (disaster recovery). There is an article regarding the VMWare migration using the ASR, but it doesn't mention the disk limits: https://docs.microsoft.com/en-us/azure/site-recovery/vmware-azure-about-disaster-recovery

upvoted 1 times

azprepd

4 years, 1 month ago

actually, i did find the option for VMWare DR scenario: https://docs.microsoft.com/en-us/azure/site-recovery/vmware-physical-azure-support-matrix. 2TB for Gen1, 2TB for Gen 2. Regarding the data disks: "Up to 32,767 GB when replicating to managed disk (9.41 version onwards) Up to 4,095 GB when replicating to storage account Minimum disk size requirement - at least 1024 MB"

upvoted 2 times

rdemontis

4 years ago

thanks a lot

upvoted 1 times

...

pentium75

4 years ago

Actually the documentation is ambigous. https://docs.microsoft.com/en-us/azure/migrate/migrate-support-matrix-hyper-v-migration For the source Hyper-V VM it says: "Disk size: up to 2 TB OS disk, 8 TB for the data disks." But for the destination Azure VM it says: "Data disk size: Up to 4,095 GB" So ... you can migrate VMs with 8 TB disk as long as the disk is not larger than 4 TB ... huh?

upvoted 1 times

Simon_G

3 years, 5 months ago

Maybe this has been updated since you posted. but that page for Hyper-v now says up to 4, not 8, for data disk. "Disk size: up to 2 TB OS disk, 4 TB for the data disks." https://docs.microsoft.com/en-us/azure/migrate/migrate-support-matrix-hyper-v-migration

upvoted 1 times

...

norbitek

4 years, 2 months ago

What about VM3. In my opinion it meets requirements for HyperV migration as well

upvoted 1 times

pentium75

4 years ago

Yes, it does. Not encrypted, OS disk < 300 GB, data disk < 2 TB.

upvoted 1 times

...

ZetaZeti

4 years, 2 months ago

You're right, acasella. Vm-ware and Hyper-V are inverted compared to question 23 and also question 52. Vmware limits: 2 TB OS and 32 TB data Hyper-V limits: 2 TB OS and 8 TB data So: VM3 VMA-VMB-VMC

upvoted 5 times

El_Hechizo

4 years ago

Hyper-V 2 TB OS and 4 TB data

upvoted 3 times

...

crazyaboutazure

4 years ago

Correct answer for second is VM - A, VM - B, VM - C as for VMWare migration Disk size up to 2 TB OS disk for gen 1 VM and gen 2 VMs; 32 TB for data disks.

upvoted 7 times

...

scorpion20047

Highly Voted 4 years, 6 months ago

repeated question

upvoted 6 times

pentium75

4 years ago

no, this time VMware / Hyper-V switched

upvoted 2 times

...

Aghora

4 years, 6 months ago

number 13 so far

upvoted 3 times

...

pentium75

Most Recent 4 years ago

The question is a bit weird as it's asking about 'using Azure Site Recovery to migrate', while you'd typically use Azure Site Recovery for DR purposes and Azure Migrate for migrating. But anyway. VM1 = No. Would meet specs but uses Bitlocker. VM2 = No. OS disk too big, max. 2 TB for Hyper-V Gen 1. VM3 = Yes. OS disk < 300 GB, data disk < 4 TB, no encryption. VMA = Yes. OS disk < 2 TB, data disk < 32 TB, no encryption. VMB = Yes. OS disk < 2 TB, data disk < 32 TB, no encryption. VMC = Yes. OS disk < 2 TB, data disk < 32 TB but > 4 TB, no encryption. Can be migrated with Managed Disks (not with disks in Storage Account).

upvoted 2 times

Pinto

4 years ago

Where do you get the info of size for encrypted and not encrypted disks?

upvoted 1 times

...

Linus0

4 years ago

https://docs.microsoft.com/en-us/azure/site-recovery/vmware-physical-azure-support-matrix OS disk size: Up to 2,048 GB for Generation 1 machines. (BIOS boot type) Up to 4,095 GB for Generation 2 machines. (EFI boot type) Data disk size: Up to 32,767 GB when replicating to managed disk (9.41 version onwards) Up to 4,095 GB when replicating to storage account Minimum disk size requirement - at least 1024 MB So can VM2 be migrated using Gen2 machines? How do we know the VM2 (red hat) is not EFI boot type?

upvoted 2 times

pentium75

4 years ago

VM2 is Hyper-V Generation 1, which uses BIOS boot. Generation 2 uses EFI boot.

upvoted 1 times

...

Kraviecc

4 years, 6 months ago

Correct

upvoted 3 times

...
