Exam AZ-500 topic 3 question 51 discussion

Actual exam question from Microsoft's AZ-500
Question #: 51
Topic #: 3
[All AZ-500 Questions]

DRAG DROP -
You are configuring network connectivity for two Azure virtual networks named VNET1 and VNET2.
You need to implement VPN gateways for the virtual networks to meet the following requirements:
✑ VNET1 must have six site-to-site connections that use BGP.
✑ VNET2 must have 12 site-to-site connections that use BGP.
✑ Costs must be minimized.

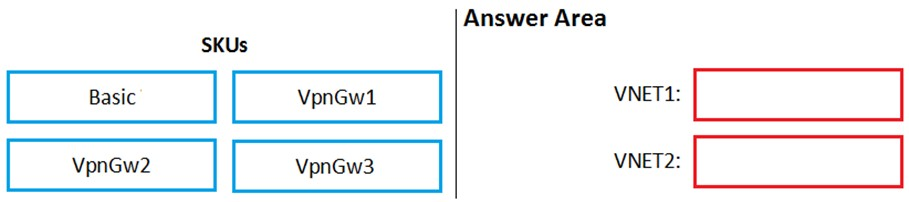

Which VPN gateway SKU should you use for each virtual network? To answer, drag the appropriate SKUs to the correct networks. Each SKU may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Select and Place:

Show Suggested Answer Hide Answer

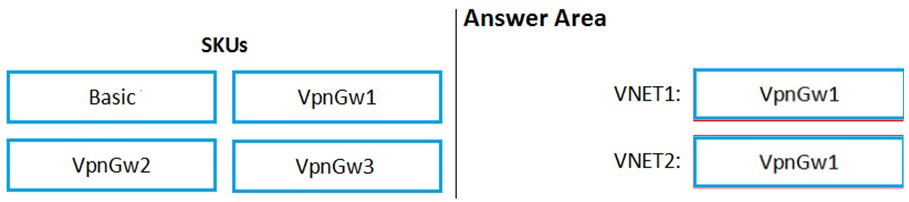

Suggested Answer:
References:
https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-about-vpngateways#gwsku
by nihao381 at March 11, 2021, 2:35 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
Fred64
Highly Voted 4 years, 3 months ago
in real life, do you kno someone learning things like that for every sazure service?
upvoted 82 times
rawrkadia
4 years ago
Thats every certification test I've ever taken. Its a little irritating for Azure where there's a million SKUs and what is supported where is constantly changing but its also not *that* hard to remember basic guidelines like "no BGP on basic sku vpn gateway". Don't bother retaining it past the test, just cram it in move on.
upvoted 22 times
tshamilton
3 years, 1 month ago
To look at it another way, they're testing your ability to use what you've crammed in a situation where the knowledge can be applied, not just reduce the question to "Hey, do you remember the thing you crammed?"
upvoted 4 times
...
...
xRiot007
1 year ago
No, it would be ridiculous to know this stuff by heart when you can google it in 2 minutes.
upvoted 3 times
...
kimalto452
4 years, 2 months ago
yes, you for example :D
upvoted 8 times
...
whysohardwhy
4 years, 1 month ago
"remember they are just exams, don't argue with them"
upvoted 20 times
EM1234_111
2 years, 9 months ago
I wrote that down so I will remember it.
upvoted 3 times
...
...
Load full discussion...
...
nihao381
Highly Voted 4 years, 5 months ago
Correct, as BGP is not supported in the Basic SKU.
upvoted 21 times
souvik123
4 years, 3 months ago
Any reference for BGP not supported in Basic SKU?
upvoted 2 times
nicksu
4 years, 3 months ago
Same as below https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-about-vpngateways Generation1 Basic Max. 10 Max. 128 Not Supported 100 Mbps ->Not Supported<- No
upvoted 3 times
...
SandroAndrade
4 years, 2 months ago
https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-about-vpngateways#gwsku
upvoted 2 times
...
...
...
khamrumunnu
Most Recent 2 months, 3 weeks ago
Final Answer is vpngW1 and vpngw1 https://azure.microsoft.com/en-us/pricing/details/vpn-gateway/ VpnGw1 $138.70/month 650 Mbps Max 30 1-10: Included 11-30: $0.015/hour per tunnel Max 250 1-128: Included 129-250: $0.01/hour per connection
upvoted 1 times
...
khamrumunnu
2 months, 3 weeks ago
Final Answer: VNET1 → VpnGw1 VNET2 → VpnGw2 SKU Max S2S Connections BGP Support Cost (Relative) Basic 0 No Cheapest VpnGw1 10 Yes Low VpnGw2 30 Yes Medium VpnGw3 30 Yes High
upvoted 1 times
...
pentium75
1 year ago
How is that related to security?
upvoted 2 times
...
datz
1 year, 1 month ago
this should be under AZ700, not 500zzz
upvoted 2 times
...
flafernan
1 year, 9 months ago
When you use BGP (Border Gateway Protocol) over a VPN connection in Azure, you gain benefits such as support for custom routing policies, making network configuration and management more efficient and flexible. BGP enables the dynamic exchange of routing information between your on-premises network and the Azure virtual network. Instead of having to manually configure static routes, BGP automates updating routing tables. VPN gateway SKUs take into account the number of connections and throughput. Below are some examples of the dozens of G. VPN SKU possibilities. a) Basic SKU – Max 10 S2S tunnels – 100 Mbps – single without any BGP support. b) SKU VpnGw1 – Max 30 S2S tunnels – 650 Mbps – with BGP support. c) SKU VpnGw2 – Max 30 S2S tunnels – 1 Gbps – with BGP support. d) SKU VpnGw3 – Max 30 S2S tunnels – 1.25 Gbps – with BGP support
upvoted 6 times
...
ESAJRR
1 year, 10 months ago
1. VpnGw1 1. VpnGw1
upvoted 1 times
...
zellck
2 years, 3 months ago
1. VpnGw1 1. VpnGw1 https://learn.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-about-vpngateways#benchmark SKU - VpnGw1 S2S/VNet-to-VNet Tunnels - Max. 30
upvoted 3 times
zellck
2 years, 3 months ago
Typo. 1. VpnGw1 2. VpnGw1
upvoted 2 times
...
...
majstor86
2 years, 5 months ago
VNET1: VpnGw1 VNET2: VpnGw1
upvoted 2 times
...
ltjones12
2 years, 7 months ago
Memorizing SKUs that constantly change every few months. Makes perfect sense to include this on a test :)
upvoted 3 times
...
baloum
3 years, 1 month ago
Correct, as BGP is not supported in the Basic SKU. https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-about-vpngateways#gwsku
upvoted 2 times
...
Eltooth
3 years, 4 months ago
Correct - VpnGw1 is minimum SKU that allows upto 10 S2S VPNs.
upvoted 2 times
...
mahi83
3 years, 7 months ago
Correct: VpnGw1 $0.19/hour 650 Mbps Max 30 1-10: Included 11-30: $0.015/hour per tunnel Max 250 1-128: Included 129-250: $0.01/hour per connection
upvoted 5 times
...
GQ
3 years, 11 months ago
If this really come up for my exam, i will rage -.-
upvoted 6 times
...
cosine
3 years, 11 months ago
Not only VpnGw1. VpnGw2 and VpnGw3 can be the correct answer as well. https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-about-vpngateways#gwsku
upvoted 1 times
hazard74
3 years, 11 months ago
"cost must be minimize"
upvoted 12 times
...
...
Cyberbug2021
4 years, 3 months ago
https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-about-vpngateways
upvoted 1 times
...
Load full discussion...
