Exam 70-741 topic 1 question 97 discussion

Actual exam question from Microsoft's 70-741

Question #: 97
Topic #: 1

HOTSPOT -
You are implementing IPv6 addressing for your company by using the following specifications:
✑ The global address space is 2001:db8:1234.
✑ The company has 100 locations worldwide.
✑ Each location has up to 300 subnets.
✑ 64 bits will be used for hosts.
You need to identify how many bits to use for the locations and the subnets.
How many bits should you identify? To answer, drag the appropriate amounts to the correct targets. Each amount may be used once, more than once, or not at all.
You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.

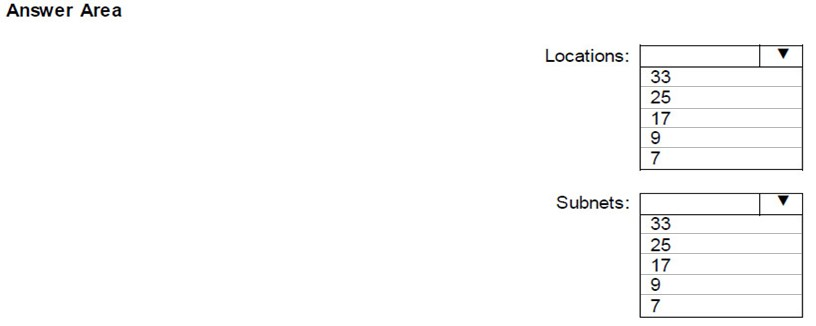

Hot Area:

Show Suggested Answer

Suggested Answer:

by dritter at March 1, 2019, 9:30 a.m.

Comments

Submit Cancel

dritter

Highly Voted 6 years, 4 months ago

2001:db8:1234 uses up 48 bits (as one hexadecimal digit is equivalent to 4 bits (2^4 = 16 possibilities). 64 bits are used for the hosts so 16 bits remain. 2^7 = 128 and sufficient to provide for 100 locations. 2^9 = 512 and sufficient to provide for 300 subnets.

upvoted 37 times

gagol14

5 years, 6 months ago

2^7 - 1(127 possible locations) and 2^9 - 1(511 possible subnets) ;)

upvoted 14 times

...

Thermal

Most Recent 4 years, 5 months ago

Definitely got this on the exam.

upvoted 1 times

...

panda

4 years, 5 months ago

The 7 bit for locations is in 2001:db8:1234 The 9 bit for subnet is in 16bit following 2001:db8:1234 The 64 bit for hosts, this quetion doesn't refer to, is in 64 bit following 16bit.

upvoted 1 times

...

ykarma

4 years, 7 months ago

I believe i had this on my exam too, not sure November 27th 2020

upvoted 3 times

...
