Exam AZ-304 topic 5 question 14 discussion

Actual exam question from Microsoft's AZ-304

Question #: 14
Topic #: 5

HOTSPOT -
Your company develops a web service that is deployed to an Azure virtual machine named VM1. The web service allows an API to access real-time data from
VM1.

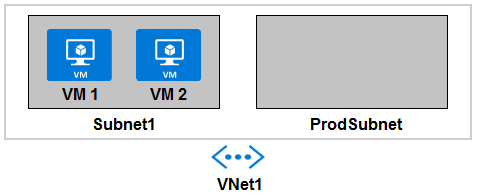

The current virtual machine deployment is shown in the Deployment exhibit. (Click the Deployment tab).

The chief technology officer (CTO) sends you the following email message: `Our developers have deployed the web service to a virtual machine named VM1.
Testing has shown that the API is accessible from VM1 and VM2. Our partners must be able to connect to the API over the Internet. Partners will use this data in applications that they develop.`

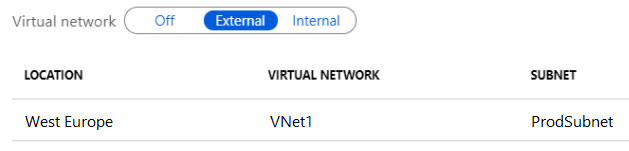

You deploy an Azure API Management (APIM) service. The relevant API Management configuration is shown in the API exhibit. (Click the API tab.)

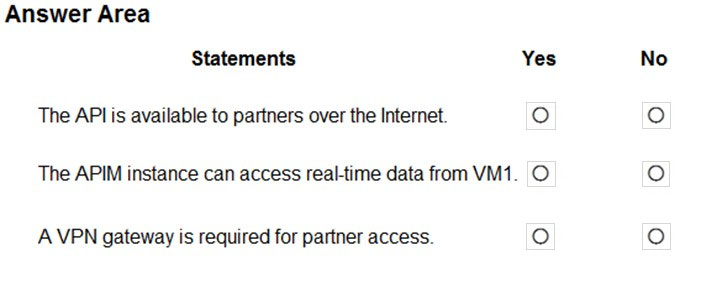

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:

Show Suggested Answer

Suggested Answer:

Reference:
https://docs.microsoft.com/en-us/azure/api-management/api-management-using-with-vnet

by Stephan99 at March 13, 2021, 7:05 a.m.

Comments

Submit Cancel

czarul79

Highly Voted 4 years, 2 months ago

1. Yes - Because we are using an APIM, deployed to a VNET but configured to be "External" 2. Yes - Because the APIM is deployed in the same vNET as VM1 just in a different subnet. Communication between subnets are enabled by default and there is no mention of otherwise. 3. No - No VPN required because the APIM is accessible from the internet by virtue of it being configured as "External"

upvoted 105 times

heamgu

3 years, 11 months ago

Thank you!!

upvoted 3 times

...

oberte007

4 years ago

Thank you bro for your bright explanation!

upvoted 4 times

...

rdemontis

3 years, 6 months ago

Thanks for clear explanation

upvoted 3 times

...

JackFrag

Highly Voted 4 years, 2 months ago

Y Y N Further discussions: https://www.examtopics.com/exams/microsoft/az-301/view/20/

upvoted 16 times

...

Santosh12345

Most Recent 3 years, 5 months ago

yes yes no

upvoted 1 times

...

syu31svc

3 years, 8 months ago

Provided link supports the answer given Y Y N

upvoted 1 times

...

dennnnnnnnnn

3 years, 10 months ago

Just want to clarify some of us who get confuse with the subnet. The ProdSubnet is used by APIM which need a dedicated empty subnet for VNET integration. Set it be EXTERNAL will open the whole VNET connectivity to internet

upvoted 7 times

...

RRRN

3 years, 12 months ago

I think ans N,N,Y. Prodsubnet is configured. external users cant access VM1 on subnet1.

upvoted 2 times

pentium75

3 years, 9 months ago

Prodsubnet is just another subnet in the same Vnet. Connectivity between subnets in a VNet is allowed by default.

upvoted 2 times

...

Stephan99

4 years, 2 months ago

N,Y,N API is accessable from the internet only over APIM. No direct access.

upvoted 2 times

Oracleist

4 years, 1 month ago

Select the desired access type: Off: This is the default. API Management is not deployed into a virtual network. External: The API Management gateway and developer portal are accessible from the public internet via an external load balancer. The gateway can access resources within the virtual network. why don't read the enclosed link into the answer?

upvoted 4 times

...
