Exam AZ-304 topic 5 question 16 discussion

DRAG DROP -
You are designing a network connectivity strategy for a new Azure subscription. You identify the following requirements:
✑ The Azure virtual machines on a subnet named Subnet1 must be accessible only from the computers in your London office.
Engineers require access to the Azure virtual machines on a subnet named Subnet2 over the Internet on a specific TCP/IP management port.

✑ The Azure virtual machines in the West Europe Azure region must be able to communicate on all ports to the Azure virtual machines in the North Europe Azure region.
✑ Azure virtual machines on Subnet1 and Subnet2 have public IP addresses.
You need to recommend which components must be used to meet the requirements. The solution must minimize costs and administrative effort whenever possible.
What should you include in the recommendation? To answer, drag the appropriate components to the correct requirements. Each component may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.

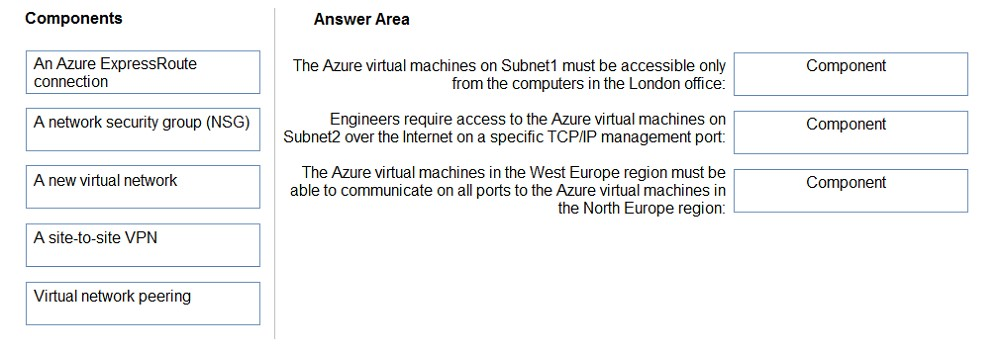

Select and Place:

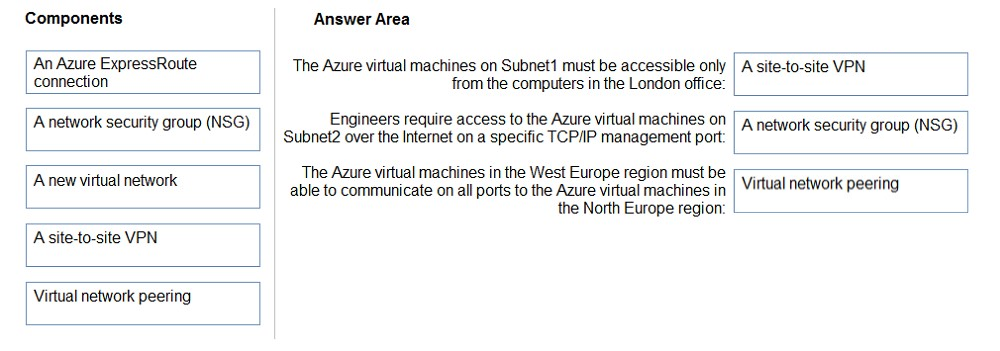

Suggested Answer:
