Exam DP-201 topic 6 question 1 discussion

Actual exam question from Microsoft's DP-201

Question #: 1
Topic #: 6

DRAG DROP -
You need to design the system for notifying law enforcement officers about speeding vehicles.
How should you design the pipeline? To answer, drag the appropriate services to the correct locations. Each service may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.

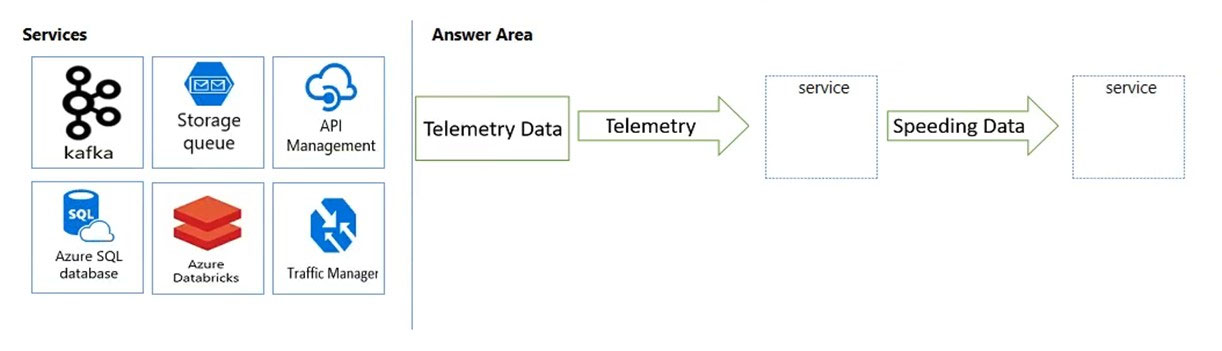

Select and Place:

Show Suggested Answer

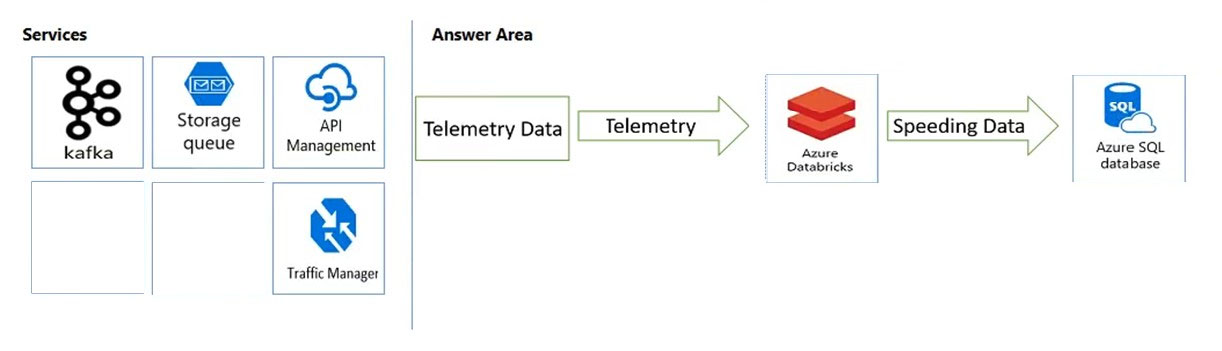

Suggested Answer:

Scenario:
Information about vehicles that have been detected as going over the speed limit during the last 30 minutes must be available to law enforcement officers. Several law enforcement organizations may respond to speeding vehicles.

Telemetry Capture -
The telemetry capture system records each time a vehicle passes in front of a sensor. The sensors run on a custom embedded operating system and record the following telemetry data:
✑ Time
✑ Location in latitude and longitude
✑ Speed in kilometers per hour (kmph)
✑ Length of vehicle in meters
Reference:
https://docs.microsoft.com/en-us/azure/azure-databricks/what-is-azure-databricks
Design data processing solutions

by Devendra00023 at April 26, 2021, 6:45 a.m.

Comments

Submit Cancel

ismaelrihawi

Highly Voted 4 years ago

Should be Kafka + Databricks!

upvoted 18 times

Dhaval_Azure

3 years, 11 months ago

Kafka should be an event reader, but data processing should be done by Azure Databricks & store in Cosmos DB or Azure SQL. Given answer looks correct to me

upvoted 1 times

...

Devendra00023

Most Recent 4 years, 1 month ago

As per the description, first box should be KAFKA

upvoted 2 times

davita8

4 years, 1 month ago

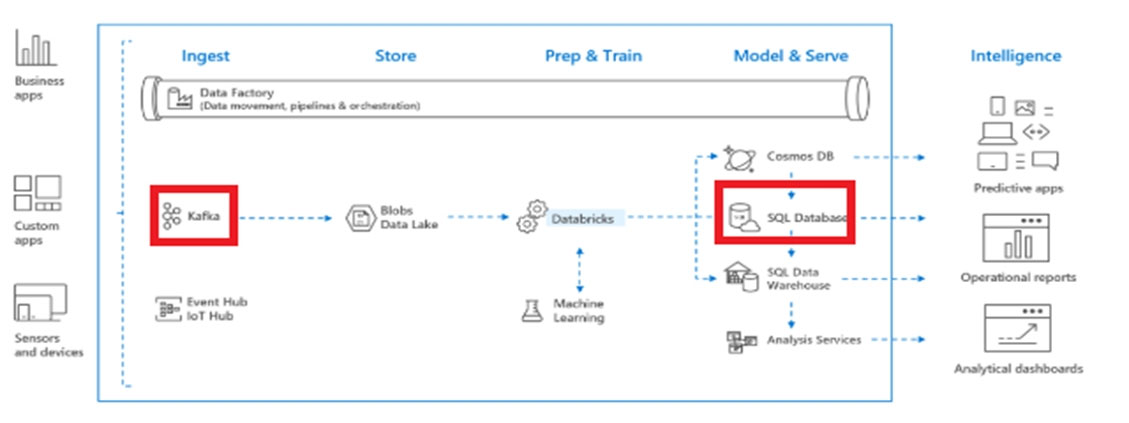

Telemetry data should be stored in NOSQL database preferably Cosmos DB or blob storage. However in this question, Cosmos DB is not an option given. If given that would have been the best answer. Coming to why Azure Server. Below is what the case study states and storage doesn't support query language Requirement :The solution must allow for searches of vehicle images by license plate to support law enforcement investigations. Searches must be able to be performed using a query language and must support fuzzy searches to compensate for license plate detection errors. https://docs.microsoft.com/en-us/azure/architecture/reference-architectures/data/stream-processing-databricks

upvoted 2 times

...
