Exam AZ-304 topic 2 question 31 discussion

Actual exam question from Microsoft's AZ-304

Question #: 31
Topic #: 2

HOTSPOT -
You have an Azure blueprint named BP1.

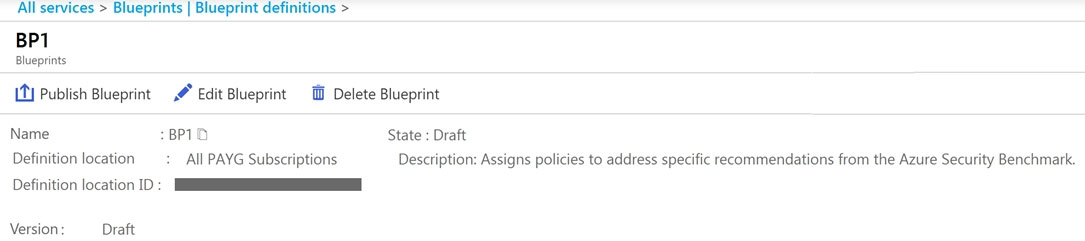

The properties of BP1 are shown in the Properties exhibit. (Click the Properties tab.)

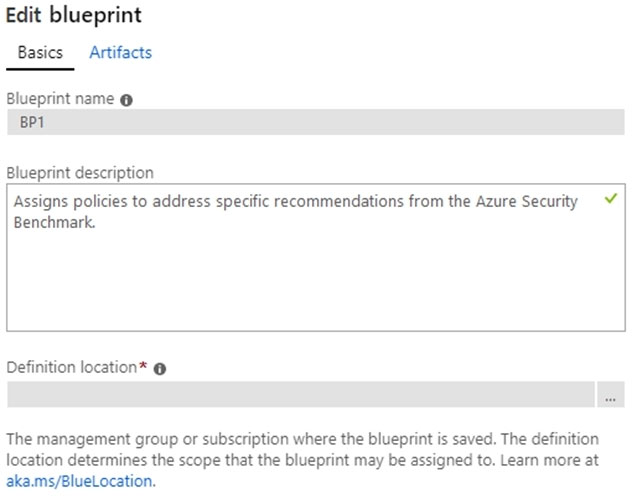

The basic configuration of the blueprint is shown in the Basics exhibit. (Click the Basics tab.)

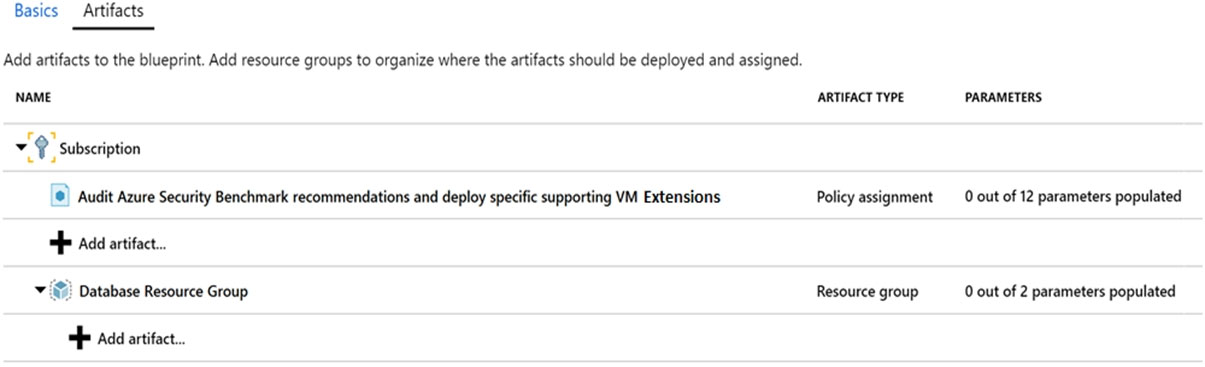

The artifacts attached to BP1 are shown in the Artifacts exhibit. (Click the Artifacts tab.)

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.

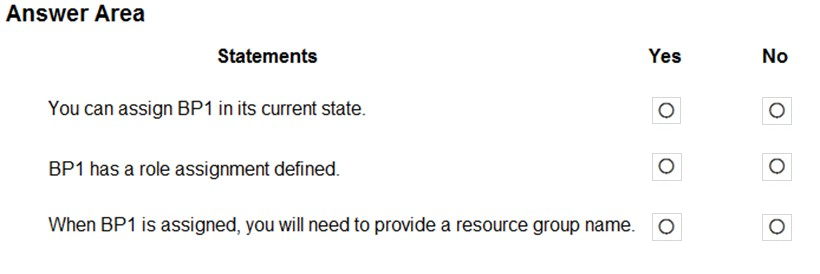

Hot Area:

Show Suggested Answer

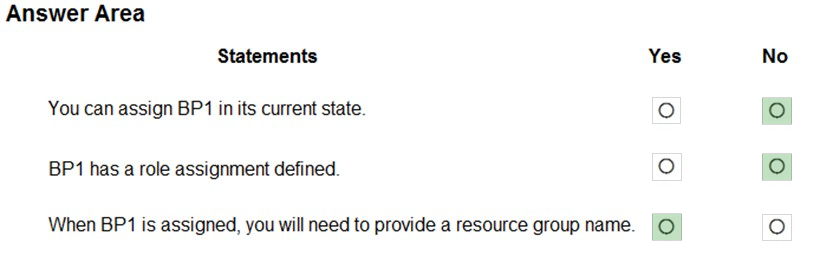

Suggested Answer:

Box 1: No -
BP1 is in draft mode.
When a blueprint is first created, it's considered to be in Draft mode. When it's ready to be assigned, it needs to be Published.

Box 2: No -
The BP1 artifacts include one Policy assignment and a Resource group, but no Role assignments.
Note: Blueprints are a declarative way to orchestrate the deployment of various resource templates and other artifacts such as:

Role Assignments -

Policy Assignments -
Azure Resource Manager templates (ARM templates)

Resource Groups -

Box 3: Yes -
Yes, the BP1 artifacts include a Resource group.
Reference:
https://docs.microsoft.com/en-us/azure/governance/blueprints/overview

by bbcz at May 1, 2021, 2:47 p.m.

Comments

Submit Cancel

Krsto

Highly Voted 4 years, 1 month ago

Answer is correct

upvoted 27 times

...

syu31svc

Highly Voted 3 years, 8 months ago

https://docs.microsoft.com/en-us/azure/governance/blueprints/overview When a blueprint is first created, it's considered to be in Draft mode. When it's ready to be assigned, it needs to be Published Assign BP1 is No Blueprints are a declarative way to orchestrate the deployment of various resource templates and other artifacts such as: Role Assignments Policy Assignments Azure Resource Manager templates (ARM templates) Resource Groups No role assignment seen so BP1 role assignment defined is No 0 parameters defined for resource group so need to provide RG name is Yes N N Y

upvoted 22 times

...

Dpejic

Most Recent 3 years, 5 months ago

On exam 24.12.2021

upvoted 4 times

...

Dpejic

3 years, 5 months ago

Appere on exam 23-dec-2021

upvoted 4 times

...

dkltruong88

3 years, 8 months ago

Was in exam today 1-10-2021. I passed with score 896. I chose provided answer

upvoted 6 times

...

kumarts

3 years, 10 months ago

Blue print needs a resource group name but the question in 3 is BP1 which cannot be assigned in its current state

upvoted 1 times

...

kumarts

3 years, 10 months ago

When you say BP cannot be assigned in its current state in 1, 3 should be definitely No

upvoted 2 times

pentium75

3 years, 10 months ago

But contrary to question 1, question 3 does not mention the "current state". IF you assign this BP (later when it's not a draft anymore), THEN it asks for RG name because it contains an RG that does not have any parameters (thus also no name) specified.

upvoted 3 times

examineezer

3 years, 6 months ago

My thoughts exactly.

upvoted 2 times

...

Hank_Qin

4 years ago

3 should No: Each Published Version of a blueprint can be assigned (with a max name length of 90 characters) to an existing management group or subscription.

upvoted 1 times

keilah123

3 years, 11 months ago

You need to read the question again. It's asking about the Resource Group artifact. SInce 0 out of 2 parameter are populated, the resource group name is missing, hence you need to provide it during the assignment. You better try it so you can understand better.

upvoted 2 times

...

Hank_Qin

4 years ago

Shoud be Y Y N. According to https://docs.microsoft.com/en-us/azure/governance/blueprints/overview. For item 2, blueprint definition can have role assignment. For item 3, Each Published Version of a blueprint can be assigned (with a max name length of 90 characters) to an existing management group or subscription. Not resource group.

upvoted 1 times

Amit3

4 years ago

Blueprint BP1 is in Draft state, so how can it be assigned ?. Answer should be N.

upvoted 2 times

jr_luciano

3 years, 4 months ago

The question is asking WHEN it will be assigned, that is, at some point it will be assigned, which obviously will be after the BP is published. Shoud be NNY

upvoted 1 times

...
