Exam AZ-104 topic 5 question 47 discussion

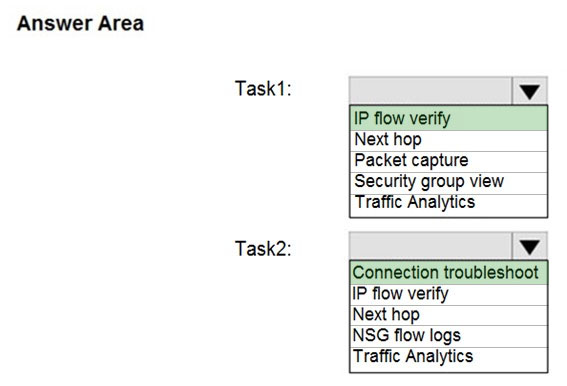

Correct Answer: Box 1: IP flow verify At some point, a VM may become unable to communicate with other resources, because of a security rule. The IP flow verify capability enables you to specify a source and destination IPv4 address, port, protocol (TCP or UDP), and traffic direction (inbound or outbound). IP flow verify then tests the communication and informs you if the connection succeeds or fails. If the connection fails, IP flow verify tells you which. Box 2: Connection troubleshoot Diagnose outbound connections from a VM: The connection troubleshoot capability enables you to test a connection between a VM and another VM, an FQDN, a URI, or an IPv4 address. The test returns similar information returned when using the connection monitor capability, but tests the connection at a point in time, rather than monitoring it over time, as connection monitor does. Learn more about how to troubleshoot connections using connection-troubleshoot.

IP Flow Verify "You might override Azure's default rules, or create additional rules. At some point, a VM may become unable to communicate with other resources, because of a security rule. IP flow verify then tests the communication and informs you if the connection succeeds or fails." https://docs.microsoft.com/en-us/azure/network-watcher/network-watcher-monitoring-overview#diagnose-network-traffic-filtering-problems-to-or-from-a-vm Connection Troubleshoot "The connection troubleshoot capability enables you to test a connection between a VM and another VM, an FQDN, a URI, or an IPv4 address" https://docs.microsoft.com/en-us/azure/network-watcher/network-watcher-monitoring-overview#connection-troubleshoot

CORRECT

6/13/24 on exam

The given answer is correct. Ip Flow Verify: The IP flow verify feature allows you to determine if a packet is allowed or denied based on the configured NSG rules Connection Troubleshoot: diagnose connectivity issues from a VM to an external endpoint.

I know it isnt an option, but you could also use Connection Monitor for this as well...

This question was in exam 15/01/24

It was in EXAM, thanks Examtopic.

1. IP flow verify 2. Connection troubleshoot https://learn.microsoft.com/en-us/azure/network-watcher/network-watcher-ip-flow-verify-overview IP flow verify checks if a packet is allowed or denied to or from a virtual machine. The information consists of direction, protocol, local IP, remote IP, local port, and a remote port. If the packet is denied by a security group, the name of the rule that denied the packet is returned. While any source or destination IP can be chosen, IP flow verify helps administrators quickly diagnose connectivity issues from or to the internet and from or to the on-premises environment.

Here 1/5/23

A & C (from teacher and slide) Today just finished the total summary of AZ104 extended course (before the exam)

Correct today came this question and I choose IP flow and troubleshoot passed 900 score

Box1: IP flow verify Box2: Connection troubleshoot

Given Answer is correct IP Flow Verify: This can used to check if packet is allowed or denied to or from a virtual machine. If a packet is being denied by security group, you can see which rule is denying the packet Connection Troubleshoot: Check the connection from a virtual machine to virtual machine, fully qualified domain name, URI or IPv4 address. The test returns similar information returned when using the connection monitor capability, but tests the connection at a point in time, rather than monitoring it over time.

this question was there on 16/03/2022 with same question and passed with 900 percent

On exam 01.02.22 Answer: Box 1: IP Flow Verify Box 2: Connection Troubleshoot

The question came in the exam today 03/12/21.
