Exam AZ-140 topic 2 question 5 discussion

Actual exam question from Microsoft's AZ-140

Question #: 5
Topic #: 2

DRAG DROP -
You have a Azure Virtual Desktop deployment.

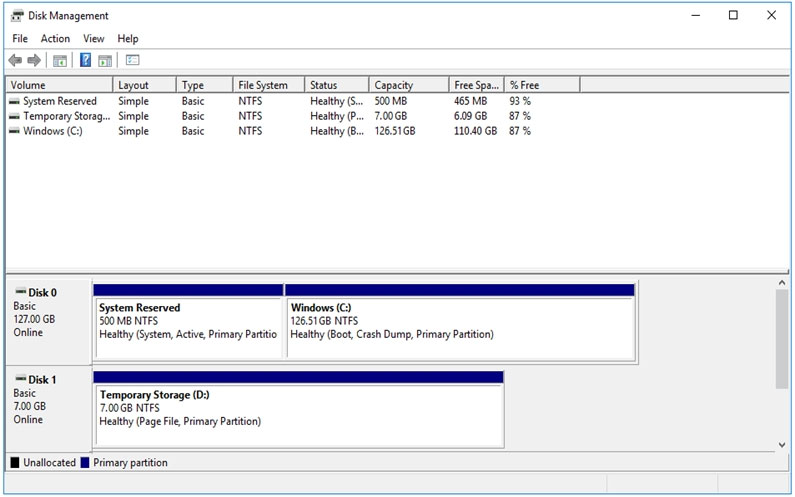

You have a session host named Host1 that has the disk layout shown in the exhibit. (Click the Exhibit tab.)

You plan to deploy an app that must be installed on D. The app requires 500 GB of disk space.
You need to add a new data disk that will be assigned the drive letter D. The solution must maintain the current performance of Host1.

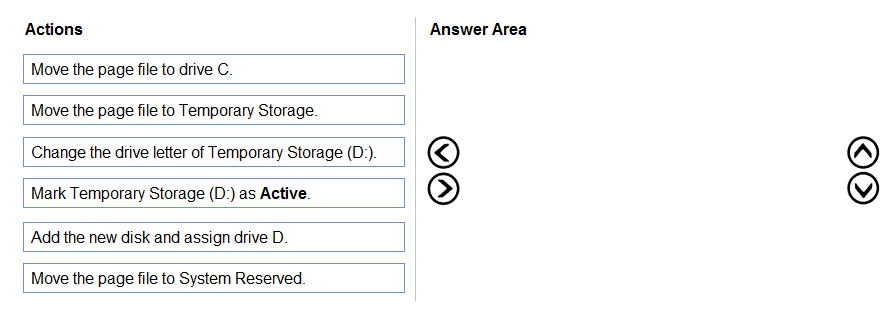

Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:

Show Suggested Answer

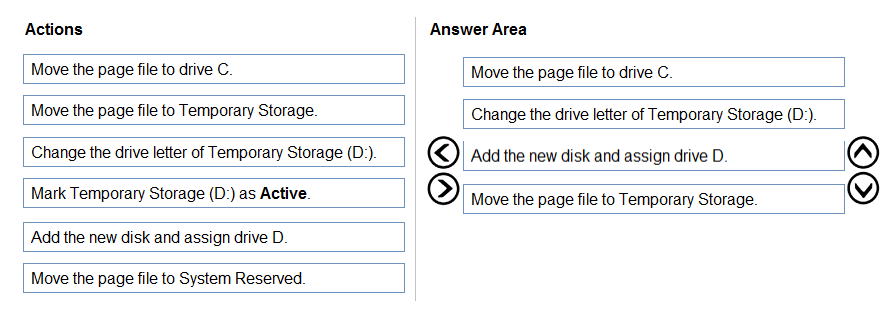

Suggested Answer:

Reference:
https://www.azurecorner.com/change-temporary-drive-azure-vm-use-d-persistent-data-disks/

by Nail at May 8, 2021, 9:04 p.m.

Comments

Submit Cancel

vlq

Highly Voted 3 years, 1 month ago

Seems to be correct: 1. First, you need to move page file from Temporary Storage, since this will block drive letter change 2. Then change Temporary Storage to other than D: 3. Assign letter D: to newly created storage 4. Finally, move page file back to Temporary Storage

upvoted 29 times

...

olivio

Highly Voted 3 years ago

Correct https://docs.microsoft.com/en-us/azure/virtual-machines/windows/change-drive-letter "If your application needs to use the D drive to store data, follow these instructions to use a different drive letter for the temporary disk. Never use the temporary disk to store data that you need to keep."

upvoted 7 times

...

Leocan

Most Recent 1 year, 1 month ago

Correct. If you have an application that specifically requires the D: drive, you need to follow these steps to temporarily move the pagefile.sys, attach a new data disk and assign it the letter D and then move the pagefile.sys back to the temporary drive. https://learn.microsoft.com/en-us/azure/virtual-machines/windows/change-drive-letter

upvoted 1 times

...

kevino81

1 year, 7 months ago

According to documentation, the order would be the following: Attach the data disk Temporarily move pagefile.sys to C drive Change the drive letters Move pagefile.sys back to the temporary storage drive https://learn.microsoft.com/en-us/azure/virtual-machines/windows/change-drive-letter

upvoted 1 times

[Removed]

9 months, 3 weeks ago

The problem with that is that the answer says you "Add the new Disk and Assign drive D." In this scenario you cannot assign Drive D until it has been removed from the temporary storage. You cannot remove D from temporary storage until the Page File has been moved. So the order must be: Move Page file to C: Move Temp Storage to a Different Drive Letter Attach New Disk and Assign D Move Page File back to Temp Storage (Although moving the Page File the second time could be done before or after attaching the new Disk)

upvoted 1 times

...
