You plan to connect a virtual network named VNET1017 to your on-premises network by using both an Azure ExpressRoute and a site-to-site VPN connection.
You need to prepare the Azure environment for the planned deployment. The solutions must maximize the IP address space available to Azure virtual machines.
What should you do from the Azure portal before you create the ExpressRoute and the VPN gateway?

Show Suggested Answer

Suggested Answer: See explanation below.
We need to create a Gateway subnet
Step 1:
Go to More Services > Virtual Networks
Step 2:
Then click on the VNET1017, and click on subnets. Then click on gateway subnet.
Step 3:

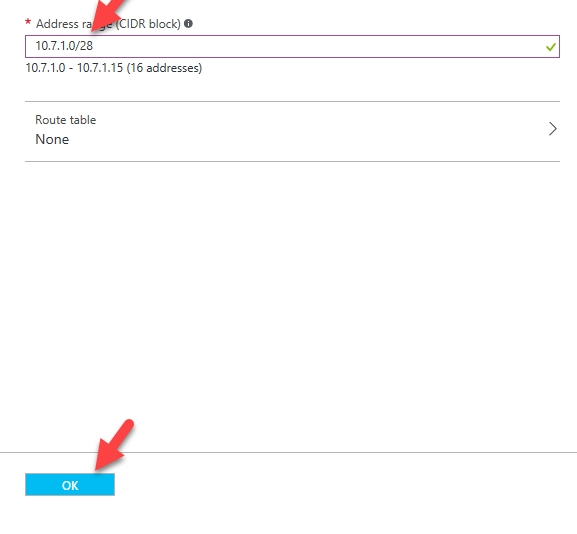

In the next window define the subnet for the gateway and click OK

It is recommended to use /28 or /27 for gateway subnet.
As we want to maximize the IP address space we should use /27.
References:
https://blogs.technet.microsoft.com/canitpro/2017/06/28/step-by-step-configuring-a-site-to-site-vpn-gateway-between-azure-and-on-premise/

by bizie at Sept. 23, 2019, 12:26 p.m.

Comments

Submit Cancel

Oz

Highly Voted 5 years, 7 months ago

MS recommends /27 or /28 for the Gateway subnet. Reference: https://docs.microsoft.com/en-us/azure/expressroute/expressroute-howto-add-gateway-portal-resource-manager The solution needs to maximize addresses available to VMs, then it should be /28 for Gateway subnet, i.e. less space for gateways more for VMs.

upvoted 21 times

...

Jake__

Highly Voted 5 years, 7 months ago

I think you read the referenced wrong or it changed. MS states to use /27 or larger (Meaning more IP, and lower cider notation ex: /24 is larger than /27) Reference: https://docs.microsoft.com/en-us/azure/expressroute/expressroute-howto-add-gateway-portal-resource-manager "We recommend creating a gateway subnet with a /27 or larger (/26, /25, etc.). Then, click OK to save the values and create the gateway subnet."

upvoted 15 times

FailureIsnotAnOption

5 years, 4 months ago

THIS IS CORRECT. SEE URL

upvoted 5 times

...

praveen97

4 years, 11 months ago

Agree with Jake.

upvoted 2 times

...

macco455

4 years, 10 months ago

Is this Jake from state farm!!!

upvoted 2 times

...

ergauravtaneja

Most Recent 4 years, 8 months ago

/28 can be used as well https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-howto-site-to-site-resource-manager-portal

upvoted 1 times

...

KCjoe

4 years, 10 months ago

https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-vpn-faq "So, while you can create a gateway subnet as small as /29, we recommend that you create a gateway subnet of /27 or larger (/27, /26, /25 etc.). " Recommended smallest range should be /27

upvoted 2 times

...

Gjferweb

5 years, 1 month ago

the question is some what vague, if you need to maximize vms address space should be /29, if gtw address space /27. Azure reserve 5 ips so /29 you get 3 devices, /28 11 and /27 27 devices. /29 is not recommended but tue question do´nt ask for recomendation, it state maximize so /29 could be an answer. :-(

upvoted 1 times

jcmoranp

5 years ago

3 IPs is not enough, you need 4, 2 for VPN GW and 2 for ER GW.

upvoted 1 times

...

milind8451

5 years, 1 month ago

MS recommends /27 or larger though /28 and /29 are also possible but not recommended so will use /27 here.

upvoted 1 times

...

TYT

5 years, 1 month ago

Create a gateway subnet of /27 or larger (preferred) to work for both.

upvoted 1 times

...

joilec435

5 years, 1 month ago

Specify a subnet address range in CIDR notation which falls within the virtual network’s address space: 10.3.0.0/16. If the gateway is an ExpressRoute type and you plan on creating a VPN gateway to coexist with it, the prefix of the CIDR notation must be 27 or smaller.

upvoted 1 times

...

htchen829

5 years, 2 months ago

I believe /27 is correct, as mentioned in Question, you need to have ExpressRoute and VPN gateway. --------------------------------------------------------------------------------------- When you are planning your gateway subnet size, refer to the documentation for the configuration that you are planning to create. For example, the ExpressRoute/VPN Gateway coexist configuration requires a larger gateway subnet than most other configurations. Additionally, you may want to make sure your gateway subnet contains enough IP addresses to accommodate possible future additional configurations. While you can create a gateway subnet as small as /29, we recommend that you create a gateway subnet of /27 or larger (/27, /26 etc.) if you have the available address space to do so. This will accommodate most configurations.

upvoted 3 times

...

Liohei

5 years, 2 months ago

The smallest gateway subnet which can contain BOTH ExpressRoute gateway and VPN gateway is /27. Only VPN gateway - /29 (not recommended though) Only ExpressRoute gateway - /28 Both - /27

upvoted 7 times

...

Daren

5 years, 3 months ago

Agree with /27. Normally we should use /27 or /28 for the GateWay Subnet. But since coexistence is planned => MS recommends us to use /27 or a lower prefix such as /26, /25. Considering that we should maximize the IPs available, we will use /27.

upvoted 2 times

...

Happiman

5 years, 3 months ago

To maximize subnet space, it should be /29. "While you can create a gateway subnet as small as /29, we recommend that you create a gateway subnet of /27 or larger (/27, /26 etc.) if you have the available address space to do so. This will accommodate most configurations." https://docs.microsoft.com/en-us/azure/expressroute/expressroute-about-virtual-network-gateways

upvoted 1 times

starnb

5 years, 3 months ago

I would say /27 would be more appropriate answer as this is VPN and Express Route configuration that requires larger address space than most. So /29 would be the least /27 would the the best given ExpressRoute is in configuration and you want to maximise VM address space in that scenario.

upvoted 3 times

...

DanielRO

5 years, 3 months ago

/28 to maximize the ip address range for vms.

upvoted 1 times

Russel

5 years, 3 months ago

It should be /27. The gateway subnet must be /27 or a shorter prefix, (such as /26, /25), or you will receive an error message when you add the ExpressRoute virtual network gateway.

upvoted 8 times

...

Jt909

5 years, 3 months ago

/27 If coexsitng gateways are planned. Source: https://docs.microsoft.com/en-us/azure/expressroute/expressroute-howto-coexist-resource-manager

upvoted 6 times

...

kavvaru

5 years, 5 months ago

The goal is to maximize address space for the VM's ie, minimize the address space for the gateway subnet as VM's cannot exist in the gateway subnet. If recommended is to use /27 or /28 for the gateway subnet, taking into account to minimize the address range for gateway subnet, you should use /28 as it is even smaller range than /27 enabling more addresses for the VM if needs be in the other subnets.

upvoted 9 times

bolbol

5 years, 5 months ago

Agreed, MS says that it's recommended to create the GW Subnet in /27 or /28. so /28 will maximize the number of IP for VMs: https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-howto-site-to-site-resource-manager-portal#VNetGateway

upvoted 7 times

...

Ekramy_Elnaggar

5 years, 6 months ago

Create Gateway Subnet "GatewaySubnet" with CIDR /27

upvoted 9 times

...

SomeITGuy

5 years, 6 months ago

/27 According to step 3 in the page below: "Important!: The Gateway Subnet must be /27 or a shorter prefix (such as /26 or /25)." https://docs.microsoft.com/en-us/azure/expressroute/expressroute-howto-coexist-resource-manager#new

upvoted 5 times
