Exam AZ-303 topic 6 question 20 discussion

Actual exam question from Microsoft's AZ-303

Question #: 20
Topic #: 6

HOTSPOT -
Your company has offices in New York and Los Angeles.
You have an Azure subscription that contains an Azure virtual network named VNet1. Each office has a site-to-site VPN connection to VNet1.

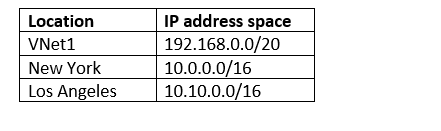

Each network uses the address spaces shown in the following table:

You need to ensure that all Internet-bound traffic from VNet1 is routed through the New York office.
What should you do? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

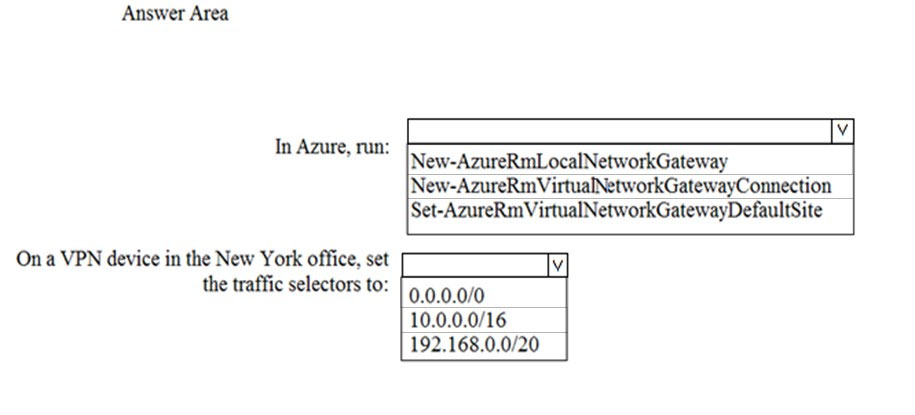

Hot Area:

Show Suggested Answer

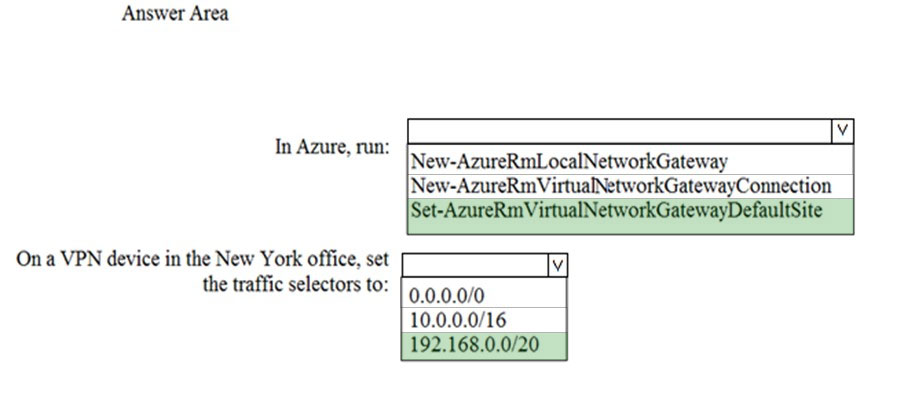

Suggested Answer:

by Tripp_F at July 6, 2021, 8:55 p.m.

Comments

Submit Cancel

Tripp_F

Highly Voted 3 years, 11 months ago

Correct Answers are: In Azure, run: Set-AzureRmVirtualNetworkGatewayDefaultSite On a VPN device in the NY office, set the traffic selectors to: 0.0.0.0/0 Forced tunneling must be associated with a VNet that has a route-based VPN gateway. You need to set a "default site" among the cross-premises local sites connected to the virtual network. *Also, the on-premises VPN device must be configured using 0.0.0.0/0 as traffic selectors.* https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-forced-tunneling-rm

upvoted 37 times

rdemontis

3 years, 10 months ago

thank you very much for the clear explanation!

upvoted 3 times

...

syu31svc

Highly Voted 3 years, 9 months ago

https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-forced-tunneling-rm Also, the on-premises VPN device must be configured using 0.0.0.0/0 as traffic selectors. The -GatewayDefaultSite is the cmdlet parameter that allows the forced routing configuration to work, so take care to configure this setting properly. Set-AzureRmVirtualNetworkGatewayDefaultSite 0.0.0.0/0

upvoted 6 times

...

souvik123

Most Recent 3 years, 11 months ago

In Azure, run: Set-AzureRmVirtualNetworkGatewayDefaultSite On a VPN device in the NY office, set the traffic selectors to: 0.0.0.0/0

upvoted 4 times

...
