Exam AZ-400 topic 17 question 5 discussion

DRAG DROP -


Overview -

Contoso, Ltd. is a manufacturing company that has a main office in Chicago.


Existing Environment -

Contoso plans to improve its IT development and operations processes by implementing Azure DevOps principles. Contoso has an Azure subscription and creates an Azure DevOps organization.

The Azure DevOps organization includes:


The Docker extension -
A deployment pool named Pool7 that contains 10 Azure virtual machines that run Windows Server 2019

The Azure subscription contains an Azure Automation account.


Requirements -


Planned changes -

Contoso plans to create projects in Azure DevOps as shown in the following table.





Technical requirements -

Contoso identifies the following technical requirements:

• Implement build agents for Project1.
• Whenever possible, use Azure resources.
• Avoid using deprecated technologies.
• Implement a code flow strategy for Project2 that will:
o Enable Team2 to submit pull requests for Project2.
o Enable Team2 to work independently on changes to a copy of Project2. o Ensure that any intermediary changes performed by Team2 on a copy of Project2 will be subject to the same restrictions as the ones defined in the build policy of Project2.
• Whenever possible, implement automation and minimize administrative effort.
• Implement Project3, Project5, Project6, and Project7 based on the planned changes.
• Implement Project4 and configure the project to push Docker images to Azure Container Registry.


You need to implement Project6.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

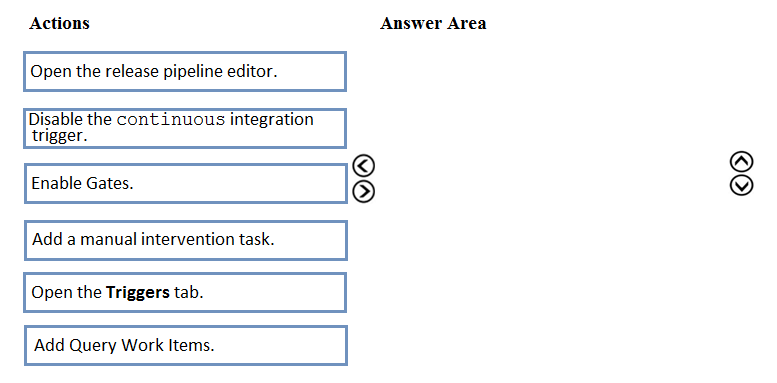

Select and Place:

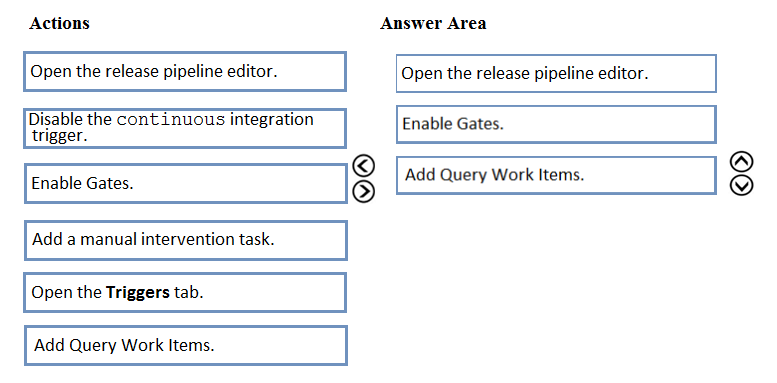

Suggested Answer:
Scenario: Implement Project3, Project5, Project6, and Project7 based on the planned changes

Step 1: Open the release pipeline editor.
In the Releases tab of Azure Pipelines, select your release pipeline and choose Edit to open the pipeline editor.
Step 2: Enable Gates.
Choose the pre-deployment conditions icon for the Production stage to open the conditions panel. Enable gates by using the switch control in the Gates section.

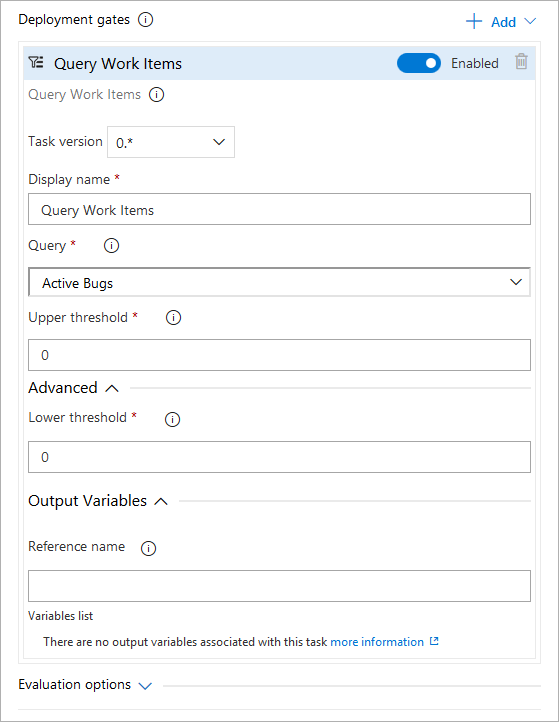

Step 3: Add Query Work items.
Choose + Add and select the Query Work Items gate.
Configure the gate by selecting an existing work item query.

Note: A case for release gate is:
Incident and issues management. Ensure the required status for work items, incidents, and issues. For example, ensure deployment occurs only if no priority zero bugs exist, and validation that there are no active incidents takes place after deployment.
Reference:
https://docs.microsoft.com/en-us/azure/devops/pipelines/release/deploy-using-approvals?view=azure-devops#configure-gate
