Exam AZ-100 topic 4 question 23 discussion

Actual exam question from Microsoft's AZ-100

Question #: 23
Topic #: 4

HOTSPOT -

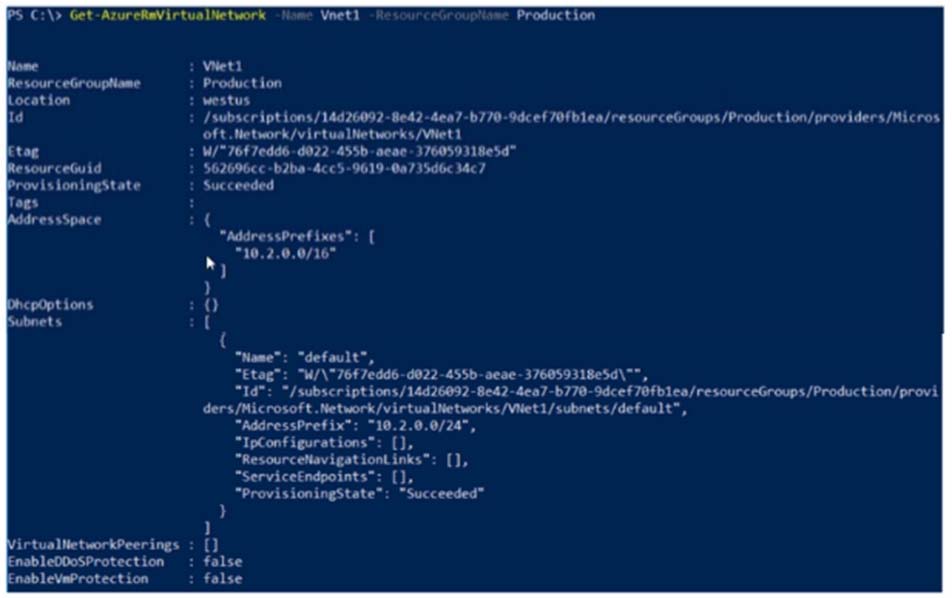

You have a virtual network named VNet1 that has the configuration shown in the following exhibit.

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.

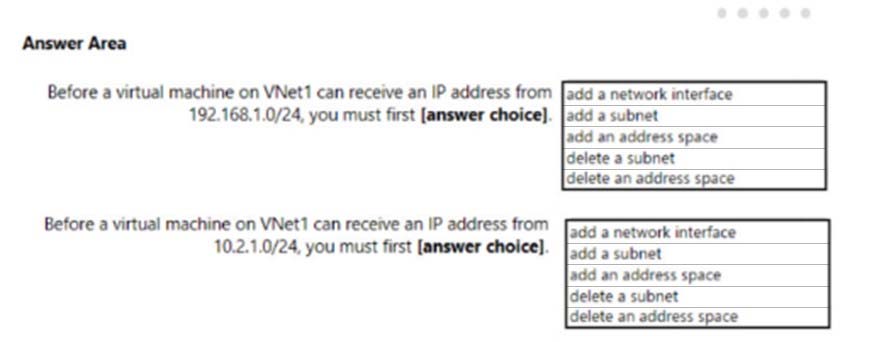

Hot Area:

Show Suggested Answer

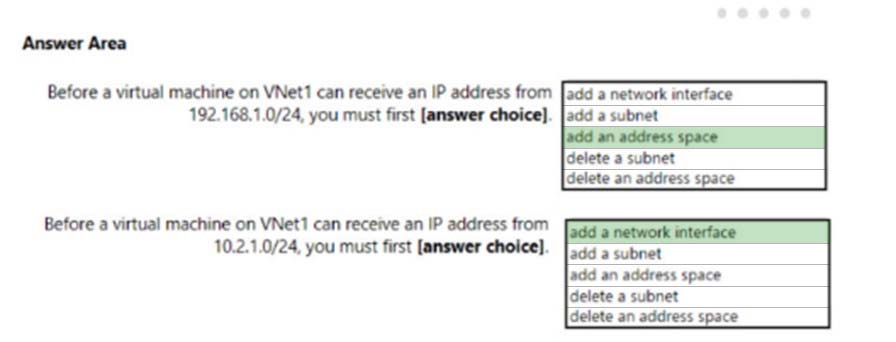

Suggested Answer:

Box 1: add an address space -
Your IaaS virtual machines (VMs) and PaaS role instances in a virtual network automatically receive a private IP address from a range that you specify, based on the address space of the subnet they are connected to. We need to add the 192.168.1.0/24 address space.

Box 2: add a network interface -
The 10.2.1.0/24 network exists. We need to add a network interface.
References:
https://docs.microsoft.com/en-us/office365/enterprise/designing-networking-for-microsoft-azure-iaas https://docs.microsoft.com/en-us/azure/virtual-network/virtual-networks-static-private-ip-arm-pportal

by nitramsk at Oct. 7, 2019, 8:43 p.m.

Comments

Submit Cancel

nitramsk

5 years, 8 months ago

I think that second answer is incorrect and there should be create subnet. 10.2.1.0/24 does not exists there is just 10.2.0.24. Or am I missing something?

upvoted 3 times

jmyers43

5 years, 4 months ago

should be add a subnet yes

upvoted 3 times

Ragdoll

4 years, 9 months ago

Agree. NIC is attached to a VM, not to a VNET.

upvoted 1 times

...
